Kini Fifọ Circuit Keke?
A Fifọ Circuit Kere (MCB) jẹ iwapọ, ohun elo aabo foliteji kekere ti a tun ṣeto ti a ṣe apẹrẹ lati daabobo awọn iyika itanna lati awọn ẹru apọju ati awọn iyika kukuru. Ṣiṣẹ ni awọn foliteji ti a ṣe iwọn to240/415V AC (50/60Hz) pẹlu lọwọlọwọ-wonsi lati0.5A si 125A, Awọn MCB ṣiṣẹ bi ẹrọ aabo iyika akọkọ ni ibugbe, iṣowo, ati awọn eto pinpin itanna ile-iṣẹ ina.
MCB duro fun ilosiwaju ipilẹ lori awọn fiusi ibile, fifunnilaifọwọyi tripping lori aṣiṣe erin atiAfowoyi si ipilẹ agbara ni kete ti a ti sọ aṣiṣe naa kuro - imukuro iyipada paati ati idinku awọn idiyele itọju. MCB kọọkan ṣe ẹya iyasọtọ lọwọlọwọ kan pato ti o baamu si iyika ti o ni aabo, ni idaniloju isọdọkan aabo to peye.
Awọn ẹka Ọja MCB & Awọn atunto
|
Iyasọtọ |
Iru |
Ibiti lọwọlọwọ |
Awọn abuda bọtini |
|
Abuda Tripping (Ibi) |
Iru B |
0.5A - 63A |
3-5×Ninu irin-ajo lojukanna, awọn ẹru inrush kekere (ina, alapapo resistive) |
|
Iru C |
0.5A - 125A |
5-10×Ninu irin ajo, inrush dede (motor, air conditioners, awọn ohun elo kekere) |
|
|
Iru D |
0.5A - 63A |
10-20×Ninu irin-ajo, inrush giga (awọn iyipada, awọn ọkọ ayọkẹlẹ nla, ohun elo alurinmorin) |
|
|
Iru K |
0.5A - 63A |
8-12×Ninu irin ajo, ti owo/ise motor èyà |
|
|
Iru Z |
0.5A - 40A |
2-3×Ninu irin ajo, itanna elekitiriki, idabobo semikondokito |
|
|
polu iṣeto ni |

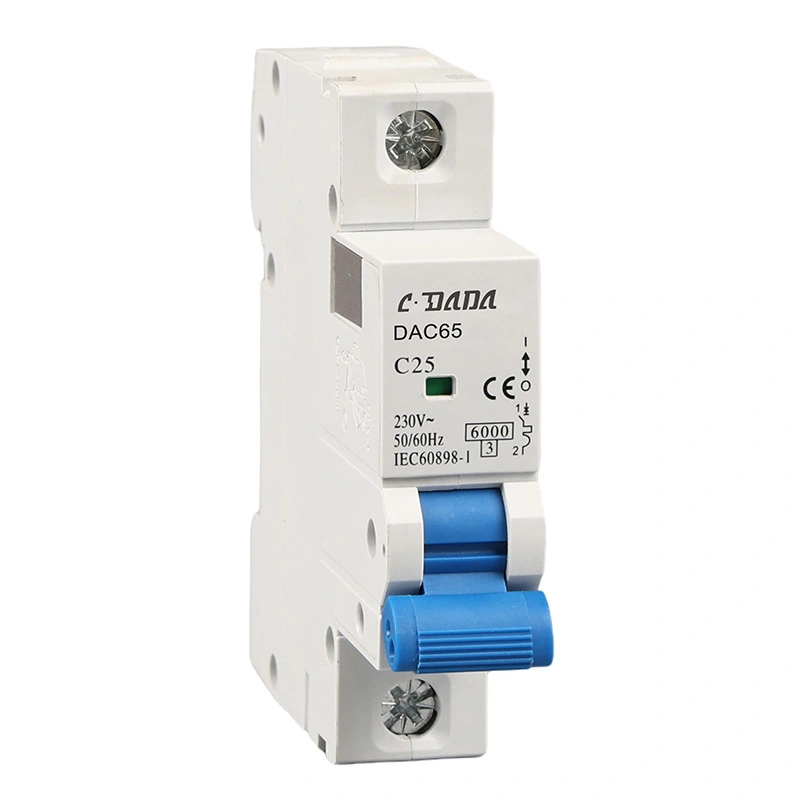

Ọpá Kan ṣoṣo (SP) |
0.5A - 63A |
Idaabobo alakoso ni awọn iyika-ọkan |
|

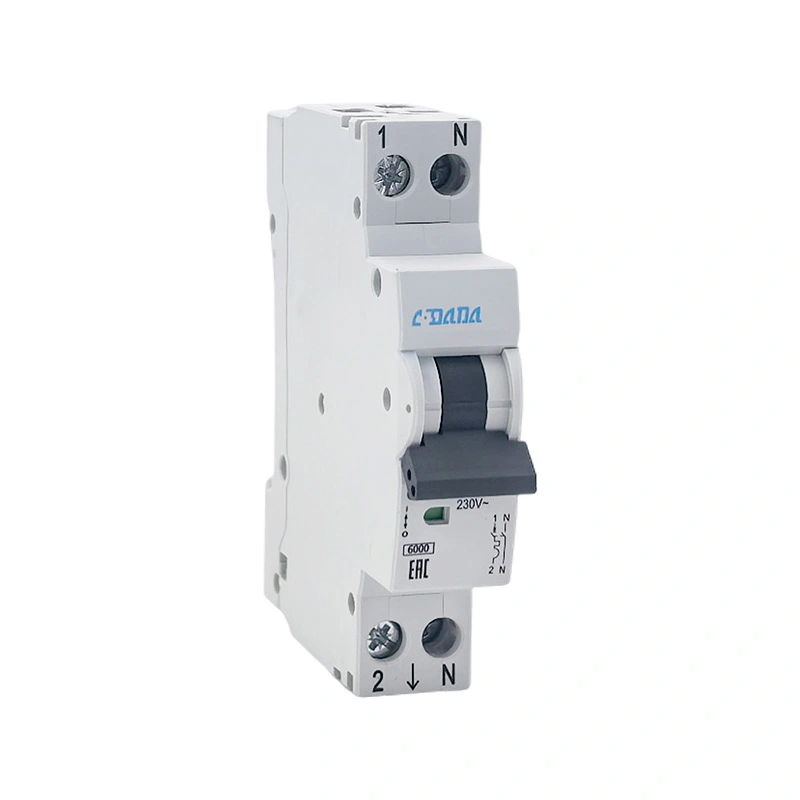

Ọpa-meji (DP) |
0.5A - 63A |
Alakoso + aabo didoju, ọpa irin ajo ti o wọpọ |
|
|
Òpópó Meta (TP) |
0.5A - 125A |
Mẹta-alakoso Idaabobo, ise pinpin |
|
|
Ọpá Mẹrin (4P) |
0.5A - 125A |
Mẹta-alakoso + didoju, wọpọ irin ajo siseto |
|
|
Kikan Agbara |
Standard (S) |
3kA – 6kA |
Awọn fifi sori ẹrọ inu ile, awọn nẹtiwọki ipele aṣiṣe kekere |
|
Imudara (H) |
10kA |
Awọn ile iṣowo, awọn ipele aṣiṣe alabọde |
|
|

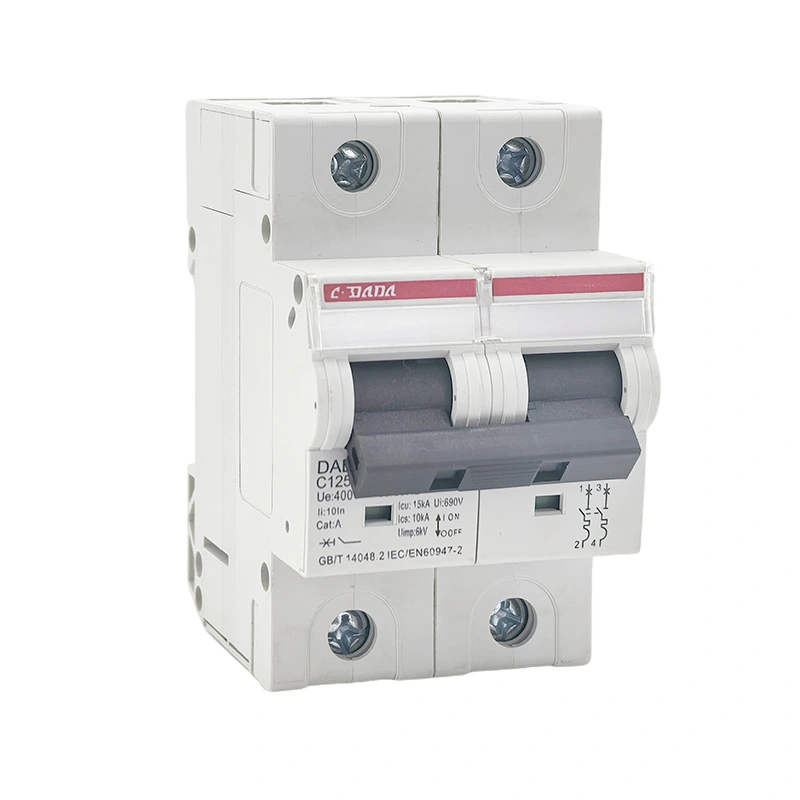

Gíga (G) |
15kA – 25kA |
Awọn mains ile-iṣẹ, agbara aṣiṣe giga |
|
|
Iṣagbesori Standard |
DIN Rail (IEC 60715) |
Gbogbo iwontun-wonsi |
35mm oke-ijanilaya iṣinipopada (TH35), awọn ọna imolara-lori fifi sori |
|
Panel Oke |
0.5A - 63A |
Ipilẹ ti o wa titi dabaru, awọn fifi sori ẹrọ julọ |
Atẹle Idiwọn lọwọlọwọ (Awọn iye ti o fẹ): 0.5A,1A,2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A
Awọn iṣẹ pataki & Awọn agbara Idaabobo
Meji-Element Idaabobo Mechanism
|
Išẹ |
Ilana imuse |
Imọ paramita |
|
Idaabobo Apọju (gbona) |
Bimetallic rinhoho ooru imugboroosi |
1.05×Ni: Ko si irin ajo (2h), 1.3×Ni: Irin ajo ≤1h (Ninu≤32A), ≤2h (Ni> 32A), 1.45×Ni: Irin ajo <1h |
|
Idaabobo Iyika Kukuru (Magnetic) |
Solenoid plunger ese |
Iru B: 3-5×Ninu, Iru C: 5-10×Ninu, Iru D: 10-20×Ninu, <20ms isẹ |
|
Iyapa Išė |
Iyapa olubasọrọ to dara |
Ibamu fun ipinya fun IEC 60898-1, ijẹrisi aafo olubasọrọ |
|
Itọkasi Irin-ajo |
darí flag / window |
Iyatọ ON/PA ipo, ẹrọ ti ko ni irin-ajo ṣe idilọwọ pipade lori ẹbi |
To ti ni ilọsiwaju Design Awọn ẹya ara ẹrọ
Awọn MCB ode oni ṣafikun awọn eroja imọ-ẹrọ fafa:
Ṣiṣe-yara, awọn ọna fifọ-yara: Ominira ti iyara iṣiṣẹ mimu, aridaju pipade olubasọrọ ibaramu
Apẹrẹ ti ko ni irin-ajo: Ṣe idinamọ pipade afọwọṣe lakoko awọn ipo ẹbi alagbero
Iyipada-fifuye: Input / o wu ebute oko interchangeable fun fifi sori ni irọrun
Ohun elo Ayika & Lo Awọn igba
|
Ayika fifi sori ẹrọ |
Ohun elo kan pato |
Aṣoju Awọn pato |
|
Awọn ile ibugbe |
Awọn iyika ina, awọn iho iho, HVAC, awọn igbona omi |
6A-32A Iru B / C, 6kA Icn, DIN iṣinipopada iṣagbesori |
|
Awọn ọfiisi Iṣowo |
Awọn igbimọ pinpin, ohun elo kọnputa, awọn iyika UPS |
10A-63A Iru C, 10kA Icn, 4-polu fun 3-alakoso |
|
Soobu & Alejo |
Itaja ina, refrigeration, idana itanna |
16A-40A Iru C, 10kA, wọpọ irin ajo fun olona-polu |
|
Awọn paneli Iṣakoso ile-iṣẹ |
Awọn irinṣẹ ẹrọ, awọn iyika iṣakoso motor, adaṣe |
10A-63A Iru D, 15kA, ga darí ìfaradà |
|
Amayederun |
Awọn ibudo metro, awọn papa ọkọ ofurufu, awọn ile-iwosan, awọn ile-iṣẹ data |
32A-125A Iru C, 25kA, lọwọlọwọ aropin Kilasi 3 |
|
Agbara isọdọtun |
Idaabobo okun oorun, awọn ọna batiri, awọn oluyipada |
10A-63A DC-ti won won (IEC 60898-2), 250V/500V/1000V DC |
|
Omi & Ti ilu okeere |
Pipin ọkọ oju omi, awọn iru ẹrọ ti ilu okeere |
Tropicalized (T2), sooro ipata, 55°C ibaramu |
Ilana iṣelọpọ & Ṣiṣẹda Ṣiṣẹjade
Ti o ga-iwọn didun Isejade Ọkọọkan
Ohun elo Raw IQC → Imudanu Abẹrẹ Itọju → Olubasọrọ System Stamping → Apejọ Elementi Bimetallic → Yiyi Coil Magnetic → Arc Chute Integration → Mechanism Assembly → Iṣatunṣe & Idanwo → Ik QC → Iṣakojọpọ
Lominu ni Awọn ipele iṣelọpọ
|
Ipele |
Awọn alaye ilana |
Awọn aaye Iṣakoso Didara |
|
Housing abẹrẹ Molding |
thermoplastic ti o ni ipa giga (PA66, PBT) pẹlu 30% okun gilasi, 280-320 ° C yo otutu, 800-1200 igi titẹ abẹrẹ |
Ifarada iwọn ± 0.05mm, agbara ipa>7 kJ/m², atọka ipasẹ> 600V, UL 94 V-0 flammability |
|
Olubasọrọ Stamping & Plating |
Fadaka-nickel (AgNi 90/10) tabi fadaka-cadmium oxide awọn olubasọrọ, titẹsiwaju kú stamping, agba plating 8-12μm fadaka |
líle HV 80-120, olubasọrọ resistance <100μΩ, fifin sisanra XRF ijerisi |
|
Iṣelọpọ Bimetallic Ano |
Inconel/passivated, irin apapo, konge sẹsẹ, ooru itọju fun awọn abuda ipalọlọ |
Oṣuwọn iyipada 0.15-0.25mm/°C, isọdiwọn ni itọkasi 20°C, ± 3% aitasera ipele |
|
Iṣẹ iṣelọpọ Coil Oofa |
Okun Ejò (opin 0.3-0.8mm), yiyi adaṣe adaṣe, impregnation varnish igbale |
Yipada kika ± 1%, resistance DC ± 5%, idena idabobo> 100MΩ |
|
Arc Chute Apejọ |
Awọn awo pipin irin (0.5mm), awọn grids arc seramiki, jiometirii iyẹwu deionizing iṣapeye |
Ijẹrisi ṣiṣan oofa, agbara dielectric 2.5kV, onisẹpo ± 0.02mm |
|
Integration Mechanism |
Eto gbigba agbara irin orisun omi, ẹrọ toggle, ifasilẹ laisi irin-ajo, awọn orisun ibi ipamọ agbara |
Ifarada ẹrọ 20,000 awọn iyipo, ipa irin-ajo 3-8N, igbẹkẹle yipada |
|
Ipari Ipari |
Idanwo lọwọlọwọ-aladaaṣe ni 1.05×In, 1.25×In, 5×In (tabi tẹ-pato) |
Akoko irin-ajo ± 20% ifarada, iṣeduro irin-ajo lẹsẹkẹsẹ, isamisi ayeraye |
Awọn ohun elo Raw akọkọ & Awọn pato paati
|
Ẹya ara ẹrọ |
Ohun elo Specification |
Awọn ajohunše olupese |
Awọn ohun-ini bọtini |
|
Ile ti a mọ |
PA66 GF30 (polyamide 66, 30% okun gilasi) tabi PBT GF30 |
IEC 60664-1, UL 94 V-1 |
Atọka ipasẹ> 600V, resistance ooru 160°C, agbara ipa>7 kJ/m², halogen-ọfẹ wa |
|
Imudani Ṣiṣẹ |
PC / ABS parapo tabi PA66 |
ISO 527 |
Agbara fifẹ>50MPa, UV diduro, colorfast |
|
Awọn olubasọrọ ti o wa titi/ Gbigbe |
Ejò elekitiriki (Cu-ETP C11000) + AgNi 90/10 tabi AgCdO plating |
ASTM B152 |
Conductivity ≥100% IACS, arc ogbara resistance, egboogi-alurinmorin |
|
Rinho Bimetallic |
Inconel 718/irin idapọmọra (ASTM TM2) tabi idẹ/irin |
ASTM B388 |
Oṣuwọn iyipada 0.2mm/°C, iduroṣinṣin ± 3% ju ọdun 20 lọ, resistance ti nrakò |
|
Okun Oofa |
Okun waya Enaled (Kilasi F 155°C tabi Kilasi H 180°C) |
IEC 60317 |
Foliteji didenukole> 3kV, solderability 390 ° C / 2s, irọrun |
|
Arc Splitter farahan |
Tutu-yiyi irin SPCC-SD (0.5mm) pẹlu seramiki ti a bo |
JIS G 3141 |
Agbara oofa> 2000, resistance ooru> 1000 ° C, arc quenching |
|
Awọn orisun omi nṣiṣẹ |
Erogba ti o ni ibinu ti epo SWP-B tabi irin alagbara 301 |
JIS G 3522 |
Igbesi aye rirẹ> awọn iyipo 50,000, agbara fifẹ 1800-2200MPa |
|
Awọn ibudo |
Idẹ C36000 tabi Ejò C11000 pẹlu tin plating (5-8μm) |
ASTM B16 |
Iwọn lọwọlọwọ 1.0-1.2 A/mm², iyipo duro 1.5-2.5Nm, resistance ipata |
|
Agekuru iṣagbesori |
Irin orisun omi 65Mn tabi irin alagbara, irin 304 |
GB/T 1222 |
Agbara dimole 50-100N, DIN rail ibamu (EN 60715) |
Ibamu Awọn ajohunše & Awọn Ilana Idanwo
International Standards Framework
|
Standard |
Ààlà |
Wulo-wonsi |
|
IEC 60898-1 |
Awọn fifọ Circuit fun iṣẹ AC (ile ati iru) |
Ipilẹ agbaye fun AC MCBs to 125A, 415V |
|
IEC 60898-2 |
Circuit breakers fun AC ati DC isẹ |
DC-ti won won MCBs fun oorun, batiri, iṣinipopada ohun elo |
|
EN 60898-1 |
European isokan version |
Aami CE, ibamu ọja ọja EU |
|
IEC 60947-2 |
Low-foliteji switchgear - Circuit-breakers |
Awọn MCB ti ile-iṣẹ> 80A, awọn agbara fifọ ti o ga julọ |
|
GB/T 10963.1 |
Chinese orilẹ-bošewa deede |
CCC iwe eri, China oja |
Awọn idanwo Iru dandan (IEC 60898-1)
|
Idanwo Ẹka |
Idanwo pato |
Awọn Ilana gbigba |
|
Siṣamisi & Iwe |
Indelibility ti siṣamisi |
Yẹ lẹhin imukuro epo, gigun kẹkẹ iwọn otutu |
|
Mechanical iyege |
Igbẹkẹle ti awọn skru, awọn asopọ, awọn ebute |
Ko si loosening lẹhin gbigbọn, iyipo duro |
|
Aabo |
Idaabobo lodi si ina-mọnamọna |
IP20 kere, awọn ebute ẹri ika |
|
Dielectric Properties |
Iduroṣinṣin agbara-igbohunsafẹfẹ (2kV/1min), itara (6kV) |
Ko si didenukole, ko si flashover |
|
Iwọn otutu Dide |
Tẹsiwaju lọwọlọwọ ni 40°C ibaramu |
Awọn ibudo ≤60K, ọran ≤40K |
|
28-ọjọ igbeyewo |
Duro 1.13× Ninu ikojọpọ |
Ko si irin-ajo, ko si ibajẹ |
|
Awọn abuda Tripping |
Ijerisi lọwọlọwọ-akoko ti aṣa |
1.05×Ni: ko si irin ajo (2h), 1.3×Ni/1.45×Ni: irin ajo laarin awọn ifilelẹ lọ |
|
Ifarada ẹrọ |
20.000 ko si-fifuye mosi |
<5% fiseete paramita, ko si ikuna |
|
Itanna Ifarada |
Awọn iṣẹ fifuye 4,000 ni idiyele lọwọlọwọ |
Wọwọ olubasọrọ <50%, awọn abuda irin-ajo ni itọju |
|
Kukuru-Circuit Fifọ |
Icn (ti won won), Ics (iṣẹ) ijerisi |
Awọn iṣẹ 3, idalọwọduro aṣeyọri, imularada dielectric |
|
Ayika |
Darí mọnamọna, ikolu, ooru, ina, ipata |
Ṣiṣẹ lẹhin ti kondisona, ko si ibajẹ ailewu |
Iṣakoso Didara Factory & Awọn ajohunše Ayewo
Ohun elo ti nwọle QC (IQC)
|
Ohun elo |
Awọn nkan Ayẹwo |
Iṣapẹẹrẹ Eto |
Ohun elo |
|
Thermoplastic granules |
Akoonu gilasi, iki, ọrinrin, awọ |
Fun ipele, COA ijerisi |
Atọka ṣiṣan yo, olutupa ọrinrin, spectrophotometer |
|
Waya Ejò (awọn olubasọrọ) |
Ti nw ≥99.9%, ifarapa, annealing |
AQL 0.65 |
Spectrometer, elekitiriki mita |
|
Silver plating ojutu |
Irin ifọkansi, pH, impurities |
Daily monitoring |
spectrometer gbigba atomiki |
|
rinhoho Bimetallic |
Oṣuwọn iyipada, resistance, iduroṣinṣin |
Fun ipele kọọkan, idanwo ayẹwo |
Gbona adiro, deflection wiwọn |
|
Enameled waya |
Opin, sisanra idabobo, foliteji didenukole |
AQL 1.0 |
Micrometer, oluyẹwo dielectric |
|
Orisun omi irin |
Agbara fifẹ, aarẹ resistance, lara |
Fun ipele |
Ẹrọ fifẹ, idanwo rirẹ |
Iṣakoso Didara Ninu Ilana (IPQC)
|
Ibusọ |
Iṣakoso paramita |
Igbohunsafẹfẹ |
Ọna |
|
Abẹrẹ igbáti |
Awọn iwọn otutu 280-320C, titẹ 800-1200 igi, akoko iyipo |
Gbogbo iyipo |
SCADA monitoring, SPC shatti |
|
Olubasọrọ stamping |
Iwọn ± 0.02mm, burr <0.01mm, sisanra fifi sori |
Ni gbogbo ọgbọn iṣẹju |
Comparator opitika, XRF itupale |
|
Iṣatunṣe Bimetal |
Ilọkuro ni iwọn otutu itọkasi, idanwo irako |
Gbogbo 100 sipo |
Aládàáṣiṣẹ ibudo odiwọn |
|
Yiyi okun |
Yipada kika, iṣakoso ẹdọfu, iṣọkan Layer |
Gbogbo kuro |
Aládàáṣiṣẹ yikaka ẹrọ pẹlu esi |
|
Mechanism ijọ |
Yipada agbara, iṣẹ ti ko ni irin-ajo, aafo olubasọrọ |
Gbogbo kuro |
Iwọn agbara, ibujoko idanwo adaṣe |
|
Apejọ ipari |
Torque siṣamisi, olubasọrọ titete, mu isẹ |
Gbogbo kuro |
Eto iran, idanwo iṣẹ |
Iṣakoso Didara Ipari (FQC) & QC ti njade (OQC)
|
Nkan Idanwo |
Standard |
Apeere Iwon |
|
Dielectric withstand foliteji |
2kV AC / 1 iṣẹju |
100% |
|
Idaabobo idabobo |
> 100MΩ @ 500V DC |
100% |
|
Olubasọrọ resistance |
<100μΩ fun ọpá kan |
100% |
|
Tripping abuda |
1.05×Ninu (ko si irin ajo), 1.3×Ni (irin ajo), 5×Ni (ese) |
100% |
|
Isẹ ẹrọ |
5 ON-PA cycles, irin ajo-free ijerisi |
100% |
|
Imukuro laarin awọn olubasọrọ ṣiṣi |
≥3mm (fun IEC 60898-1) |
100% |
|
Visual & onisẹpo ayewo |
Awọn abawọn odo lori awọn iwọn to ṣe pataki |
100% |
|
Siṣamisi ayeraye |
Solusan wiping, abrasion igbeyewo |
AQL 1.0 |
|
Iṣootọ iṣakojọpọ |
Idanwo ju silẹ, gbigbọn (ISTA 3A), isamisi |
Fun Pupo |
Awọn amayederun iṣelọpọ & Agbara iṣelọpọ
To ti ni ilọsiwaju Production Equipment
|
Ẹka ẹrọ |
Machine Specification |
Išẹ |
Agbara |
|
Abẹrẹ Molding |
120-ton thermoplastic abẹrẹ tẹ (Arburg / Engel) pẹlu roboti mu |
MCB ile, ideri, aaki iyẹwu gbóògì |
5,000 ibugbe / ọjọ |
|
Onitẹsiwaju Stamping |
60-ton ga-iyara titẹ (Bruderer / Yamada Dobby) pẹlu kú Idaabobo |
Kan si stamping, ebute lara |
30.000 awọn olubasọrọ / ọjọ |
|
dada Itoju |
Laini fifin agba aladaaṣe (fadaka, tin) |
Kan si fifin sisanra 8-12μm |
5,000 kg / ọjọ |
|
Apejọ |
Ga-iyara ijọ |
Mechanism ijọ, odiwọn, igbeyewo |
Awọn ẹya 3,000 fun ọjọ kan |
|
Ohun elo Idanwo |
Eto idanwo abẹrẹ akọkọ adaṣe adaṣe (3-125A, agbara aṣiṣe 10,000A) |
Ijerisi ti tẹ lọwọlọwọ-akoko |
500 sipo / wakati |
|
Idanwo ifarada ẹrọ (awọn iyipo 20,000, IEC 60898-1 Abala 9.11) |
Idanwo igbesi aye, ibojuwo wọ |
200 sipo igbakana |
|
|
Iyẹwu idanwo EMC (fun awọn ẹya ẹrọ itanna) |
Idanwo ajesara / itujade |
100 sipo / ọjọ |
Agbara iṣelọpọ & Awọn akoko asiwaju
|
Ẹka ọja |
Oṣooṣu Agbara |
Standard asiwaju Time |
Agbara Bere fun kiakia |
|
Boṣewa MCB (0.5A-63A, SP/DP) |
1.000.000 sipo |
3-4 ọsẹ |
Awọn ọjọ 3 (awọn paati iṣura) |
|
MCB ile-iṣẹ (80A-125A, TP/4P) |
200.000 sipo |
3-4 ọsẹ |
5 ọjọ |
|
DC MCB (IEC 60898-2) |
100.000 sipo |
3-4 ọsẹ |
5 ọjọ |
|
Awọn atunto aṣa (awọn ifọwọkan pataki, awọn ẹya ẹrọ) |
Ipilẹ ise agbese |
4-6 ọsẹ |
2 ọsẹ |
Engineering & Technical Team Be
|
Ẹka |
Eniyan |
Amoye |
Awọn ojuse |
|
R&D Imọ-ẹrọ |
5 ẹlẹrọ |
Idaabobo kekere-foliteji, imọ-ẹrọ ohun elo, apẹrẹ itanna, adaṣe |
Idagbasoke ọja titun (awọn igun B/C/D/K/Z), isọdi-ara, iwe-aṣẹ itọsi (awọn itọsi 30+) |
|
Imọ-ẹrọ ilana |
18 ẹlẹrọ |
Iṣatunṣe abẹrẹ, titẹ deede, fifin, iṣelọpọ titẹ si apakan |
Imudara laini iṣelọpọ, iwe SOP, ilọsiwaju ikore (> 99%), isọpọ adaṣe |
|
Idanwo & Afọwọsi |
12 ẹlẹrọ |
Idanwo iwọn-giga, kikopa ayika, imọ-ẹrọ igbẹkẹle |
Iru iṣakojọpọ idanwo, adaṣe idanwo igbagbogbo, itupalẹ ikuna, iṣakoso iwe-ẹri |
|
Didara ìdánilójú |
30 Onimọn ẹrọ |
ISO 9001, IATF 16949, iṣakoso ilana iṣiro (SPC), metrology |
Ayẹwo olupese, iṣayẹwo ilana, iṣakoso iṣe atunṣe, yàrá isọdiwọn |
|
Ohun elo Engineering |
8 ẹlẹrọ |
Apẹrẹ itanna ibugbe / ti owo, isọdọkan yiyan, atilẹyin aaye |
Atilẹyin imọ-ẹrọ alabara, apẹrẹ igbimọ pinpin, awọn eto ikẹkọ |
Awọn iwe-ẹri & Iwe Ibamu
|
Ijẹrisi |
Ara ipinfunni |
Ààlà |
Wiwulo |
|
ISO 9001:2015 |
TÜV SÜD / SGS / Ajọ Veritas |
Eto iṣakoso didara |
Lododun kakiri |
|
IEC 60898-1 Iru igbeyewo |
Intertek |
Aabo ọja & iṣẹ |
Fun jara ọja |
|
CE Siṣamisi |
Ara iwifunni |
EU oja wiwọle |
Apẹrẹ-ti o gbẹkẹle |
|
CCC (China) |
CQC |
Iwe-ẹri dandan Kannada |
5-odun Wiwulo |
|
Eto CB |
IECEE |
International iwe eri |
Fun jara ọja |
|
SEMKO (Sweden) |
Intertek |
Ifọwọsi aabo ọja Nordic |
Fun jara ọja |
Kini idi ti iṣelọpọ MCB wa Duro Yato si
Ile-iṣẹ iṣelọpọ wa ṣe aṣoju40 ọdun ti pataki ni iṣelọpọ fifọ Circuit kekere, jiṣẹ awọn ọja ti o kọja awọn iṣedede agbaye nipasẹ:
Ṣiṣe iwọn iwọn to gaju: Awọn laini adaṣe ti n ṣe agbejade awọn ẹya 1,000,000+ ni oṣooṣu pẹlu <50ppm awọn oṣuwọn abawọn
Inaro Integration: Ti n ṣatunṣe abẹrẹ ile inu ile, olubasọrọ stamping / plating, ati iṣelọpọ iṣinipopada DIN ni idaniloju iṣakoso pq ipese pipe
To ti ni ilọsiwaju igbeyewo amayederun: $2M+ ṣe idoko-owo ni idanwo abẹrẹ akọkọ adaṣe adaṣe, ijẹrisi ifarada ẹrọ (awọn akoko 20,000), ati ibamu EMC
Agbaye iwe eri nwon.Mirza: Olona-bošewa ibamu (IEC 60898-1, EN, GB,) muu ni ailagbara titẹsi ọja kọja awọn orilẹ-ede 120+
Agbara isọdi: Lati specialized Tropical formulations (T2, 55°C ibaramu) to DC-ti won won awọn ẹya (250V/500V/1000V) ati ki o oto ti tẹ abuda.
Fun awọn pato imọ-ẹrọ, atilẹyin apẹrẹ igbimọ pinpin, awọn ikẹkọ isọdọkan yiyan, tabi ṣiṣe eto iṣayẹwo ile-iṣẹ, ẹgbẹ imọ-ẹrọ wa pese ijumọsọrọ taara lati rii daju pe ibugbe rẹ, iṣowo, tabi awọn fifi sori ẹrọ itanna ile-iṣẹ pade awọn ibeere aabo mejeeji ati awọn ibi igbẹkẹle igba pipẹ.
- View as
Miniature Circuit fifọ GIDI 6KA
Kan si CDADA loni ki o jẹ ki a jẹ olupese rẹ ti Miniature Circuit Breaker REAL 6KA, ifaramọ ẹrọ fifọ kekere ti o ni agbara giga pẹlu IEC / EN60898 fun aabo iyika igbẹkẹle. O ṣe ẹya tripping oofa ti o gbona ati ikarahun ti ina, o rọrun lati fi sori ẹrọ lori iṣinipopada DIN, ati pe o rọrun lati ṣetọju. O daapọ iṣẹ iduroṣinṣin pẹlu apẹrẹ ti o tọ, iyọrisi igbesi aye iṣẹ pipẹ fun ibugbe ati pinpin agbara ile-iṣẹ.
Kekere Circuit Fifọ DPN 6KA
CDADA Miniature Circuit Breaker DPN 6KA jẹ pipe fun rira olopobobo, didara didara 1P + N kekere ti o ni ibamu pẹlu IEC60898-1 fun ile ailewu ati aabo Circuit iṣowo. O nlo apẹrẹ fifọ-ojuami meji ati idọti oofa-oofa iduroṣinṣin, rọrun lati fi sori ẹrọ lori iṣinipopada DIN ati rọrun lati ṣetọju. O daapọ eto igbẹkẹle pẹlu igbesi aye iṣẹ pipẹ, aridaju ipese agbara ailewu fun ọpọlọpọ awọn ọna agbara foliteji kekere.
3 Alakoso MCB Fifọ
Yan CDADA bi olupese ati olupese rẹ, ati gba 3 Alakoso MCB Breaker, CE CB CCC ti ni ifọwọsi pẹlu agbara fifọ 6kA fun ile-iṣẹ ati pinpin agbara iṣowo. Ọja yii nlo ikarahun ti ina-iná ati didimu oofa-oofa deede, rọrun lati gbe sori iṣinipopada DIN ati rọrun lati ṣetọju. O daapọ iṣẹ iduroṣinṣin pẹlu ẹrọ gigun ati igbesi aye itanna, aridaju aabo iyika ailewu fun awọn eto agbara ipele-mẹta.
125 15KA Miniature Circuit fifọ
Gẹgẹbi olupese ti o gbẹkẹle ti 125 15KA Miniature Circuit Breaker, ọja CDADA jẹ iṣẹ-ṣiṣe 125A MCB ti o ga julọ pẹlu agbara fifọ 15kA fun pinpin agbara-agbara. O nlo ikarahun ina-iná PA66 ati apẹrẹ iyẹwu arc meji, rọrun lati gbe sori iṣinipopada DIN ati rọrun lati ṣetọju. O ṣajọpọ eto olubasọrọ fadaka pẹlu agbara-ite ile-iṣẹ, iyọrisi igbesi aye iṣẹ gigun-gigun fun awọn iyika lọwọlọwọ-nla.
6KA 10kA Miniature Circuit fifọ
Awọn fifọ iyika kekere CDADA 6kA 10kA jẹ yiyan akọkọ fun rira olopobobo, ti o funni ni ifaramọ agbara-giga pẹlu awọn iṣedede IEC60898. A ṣe ẹrọ MCB yii fun aabo iyika iduroṣinṣin ni ibugbe ati awọn eto agbara ile-iṣẹ. Ni ifihan apẹrẹ ina-retardant iwapọ ati fifẹ-oofa-oofa, o ṣe idaniloju aabo lodi si awọn ẹru apọju ati awọn iyika kukuru. Rọrun lati fi sori ẹrọ lori awọn irin-ajo DIN 35mm, awọn ẹya n pese igbesi aye iṣẹ pipẹ ati iṣẹ igbẹkẹle fun awọn olupin itanna agbaye ati awọn alagbaṣe.
4.5kA 6kA Miniature Circuit fifọ
CDADA jẹ olupilẹṣẹ alamọdaju ti 4.5kA 6kA Miniature Circuit Breaker, ifọwọsi pẹlu CCC ati ISO9001 fun aabo iyika ailewu. O nlo ikarahun retardant ina ati didimu oofa-oofa deede, rọrun lati gbe sori iṣinipopada DIN ati rọrun lati ṣetọju. O darapọ iṣẹ iduroṣinṣin pẹlu igbesi aye iṣẹ pipẹ, apẹrẹ fun ibugbe, iṣowo ati pinpin agbara ile-iṣẹ.
CDADA jẹ Kekere Circuit fifọ olupese ati olupese ni Ilu China. Ile-iṣẹ wa n ṣe iranṣẹ awọn ile-iṣẹ Oniruuru gẹgẹbi awọn eto agbara, adaṣe ile, ati iṣelọpọ ile-iṣẹ, ti nfunni ni irọrun OEM / ODM awọn solusan.
