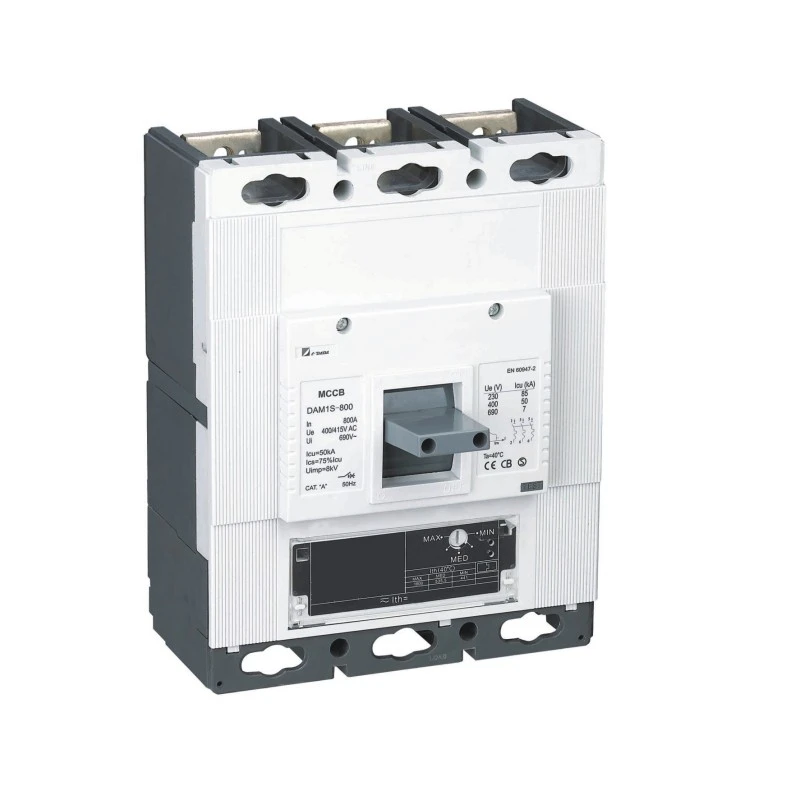

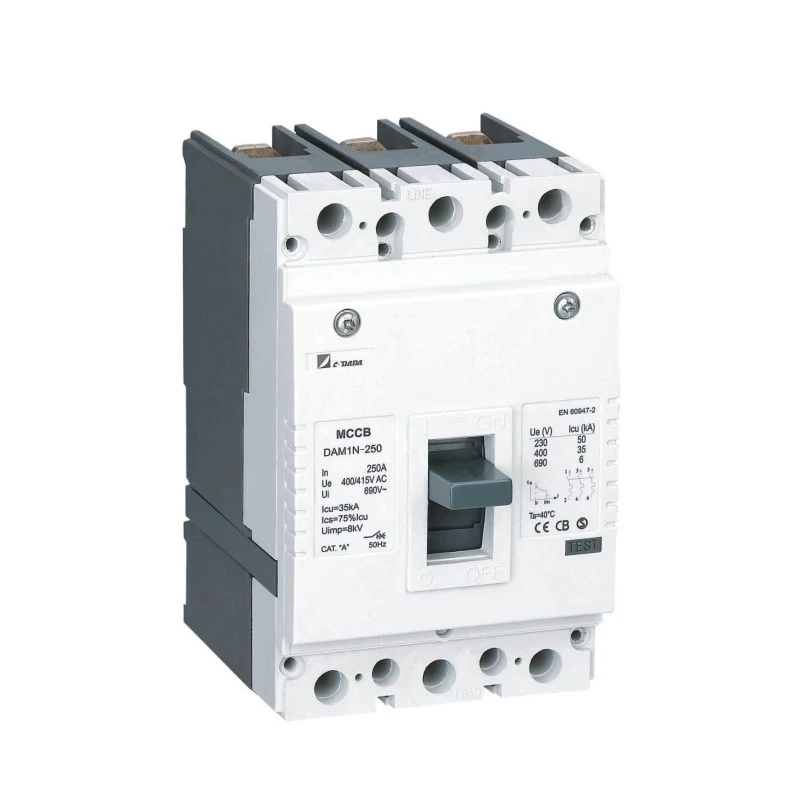

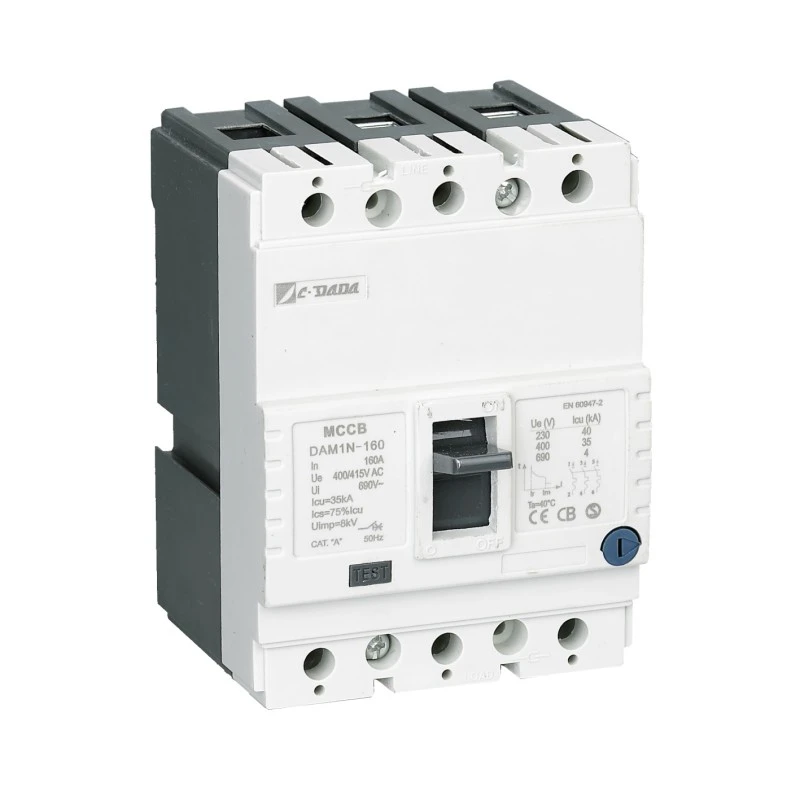

Gbona Adijositabulu Molded Case Circuit fifọ
Model:DAM1 Series

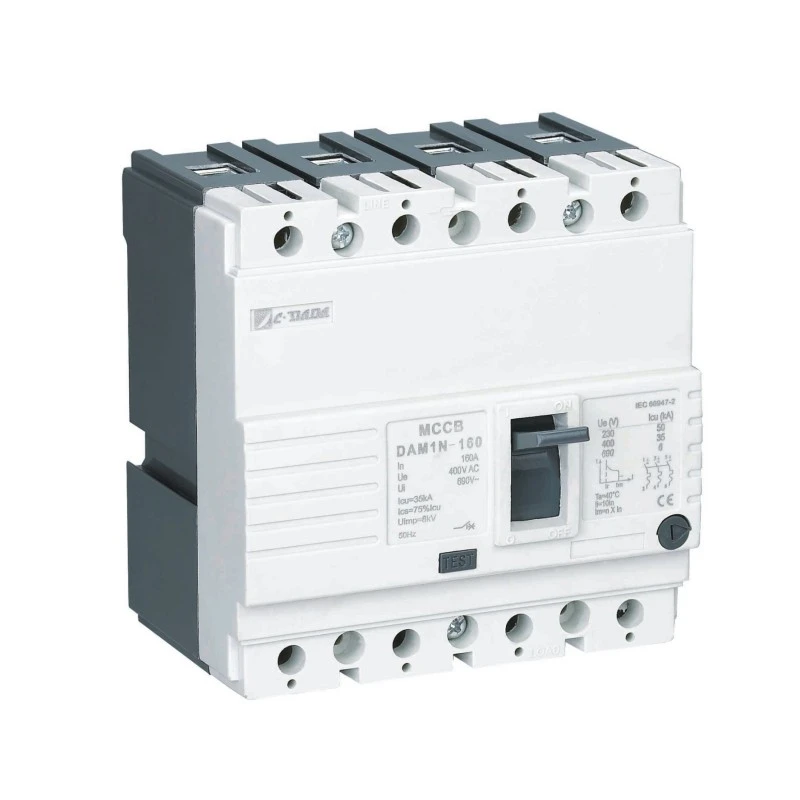

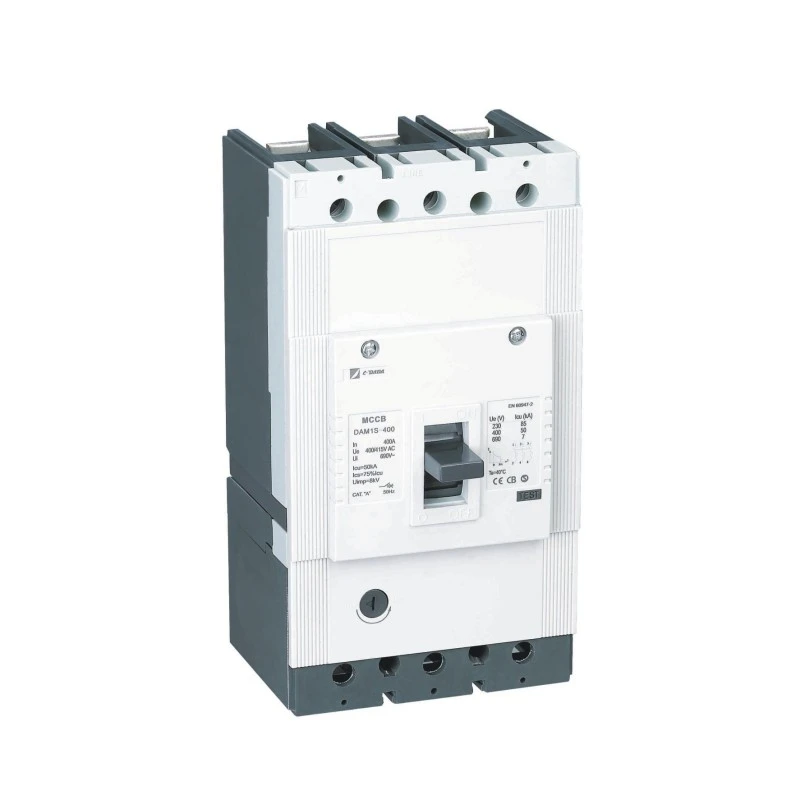

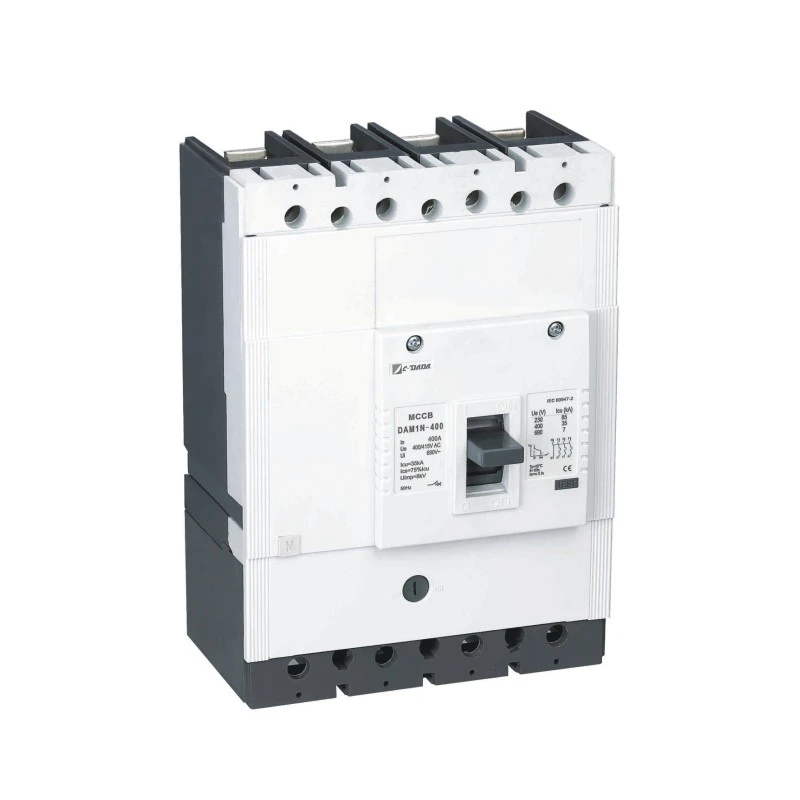

Ṣe afẹri CDADA DAM1 Series Thermal Adijositabulu Case Circuit Breaker lati ile-iṣẹ ti o gbẹkẹle, Shanghai DADA Electric — ifọwọsi (ASTA, KEMA, CE) ati awọn eto igbona adijositabulu (70-100% Ni). Apẹrẹ fun kongẹ apọju Idaabobo ni ise ohun elo. Wa ni awọn atunto 3P/4P titi di 1600A ni 400V/415V. Pipe fun OEMs ati olopobobo ti onra.
DAM1 Series Gbona adijositabulu Molded Case Circuit Breaker nipasẹ Shanghai DADA Electric CO., LTD. jẹ apẹrẹ lati pade awọn ipele agbaye, n pese aabo to lagbara lodi si apọju mejeeji ati awọn ipo iyipo kukuru. Pẹlu ibiti eto igbona adijositabulu ti 70% si 100% ti Ni, fifọ yii le jẹ aifwy daradara lati baamu awọn iwulo ohun elo kan pato.
Wa ni awọn atunto 3P ati 4P, ti a ṣe iwọn to 1600A ni 400V/415V, o wa pẹlu awọn iwe-ẹri agbaye bii ASTA, KEMA, CE, CB, SEMKO, ati RoHS, ni idaniloju ibamu kọja awọn agbegbe pupọ.
Itanna paramita ti DAM1 Gbona Adijositabulu Molded Case Circuit fifọ
|
Gbona adijositabulu iru MCCB (0.7-1) Ni |
|||||||||
|
Fọto |
Awoṣe |
koodu |
Icu (KA) |
Ics (KA) |
Ti won won Lọwọlọwọ -Ninu |
Ui(V) |
Ue(V) |
Ọpá |
Uimp(V) |
|
|

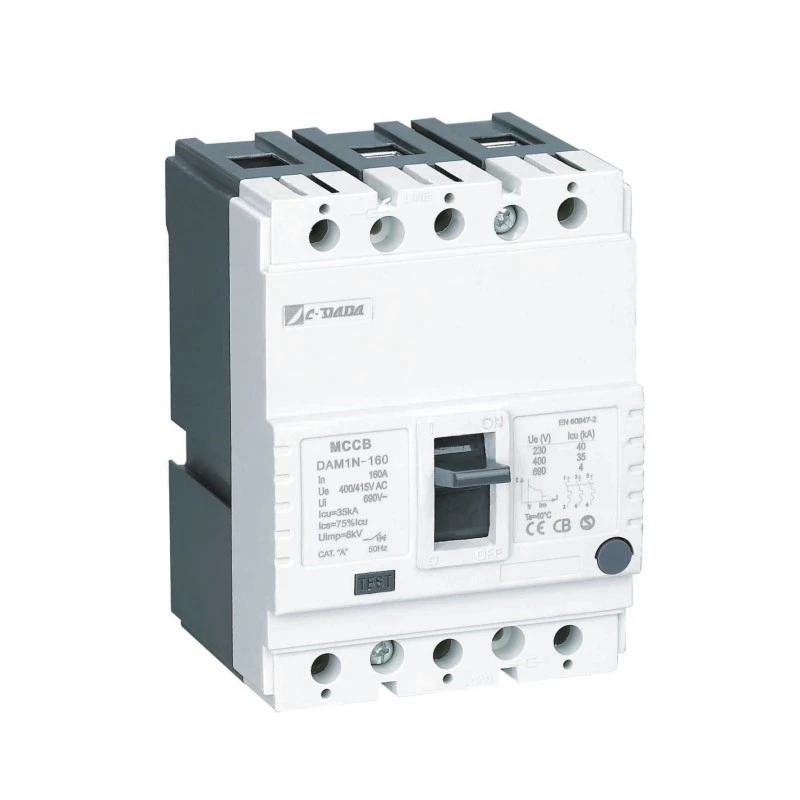

DAM1-160 |
B |
25 |
12.5 |
10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160(150)A |
750V |
400/415V |
3P/4P |
8000 |
|
N |
35 |
26.25 |
|||||||
|
S |
50 |
37.5 |
|||||||
|
|

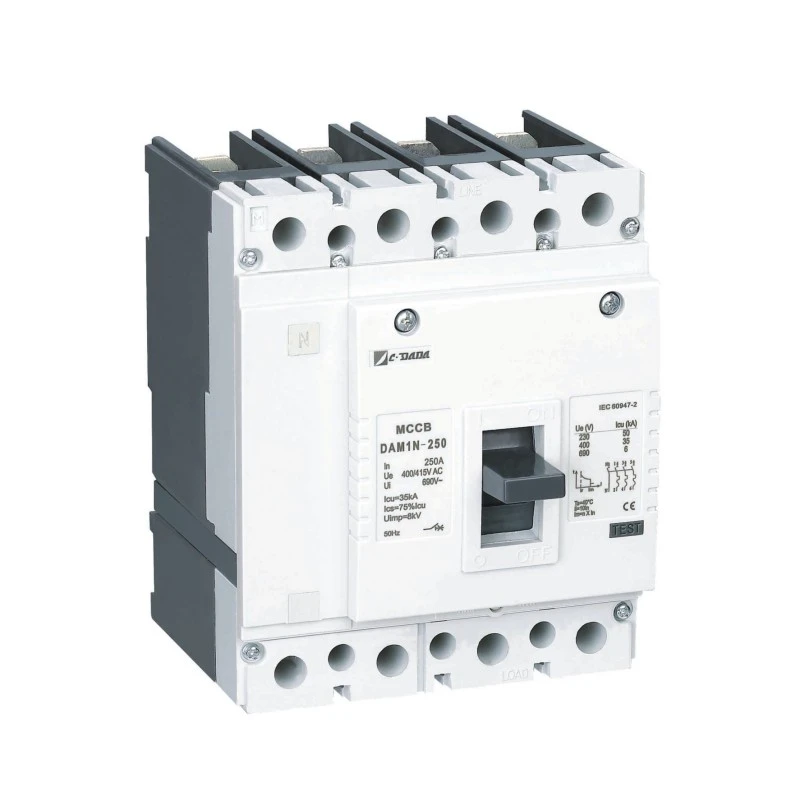

DAM1-250 |
N |
35 |
26.25 |
63 - 80-100-125 - 160 (180) - 200 (225) - 250(320)A |
750V |
400/415V |
3P/4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
65 |
48.75 |
|||||||
|
G |
85 |
51 |
|||||||
|
|

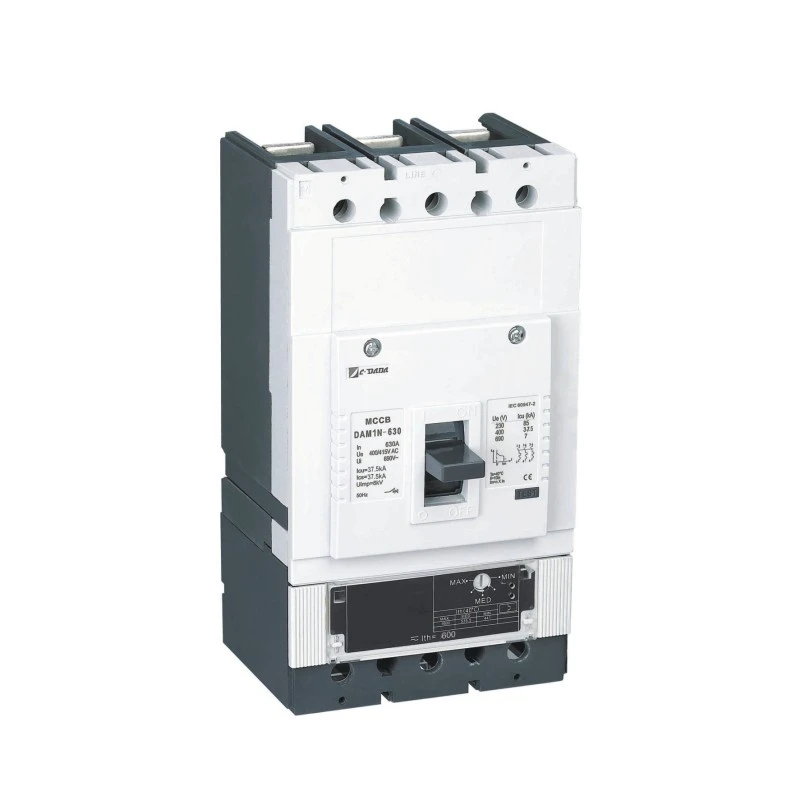

DAM1-630(400) |
N |
35 |
26.25 |
250 - 315 (350) - 400 - 500 - 630A |
750V |
400/415V |
3P/4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM1-800 |
N |
35 |
35 |
400 - 500 - 630 (700) - 800 -1000A |
750V |
400/415V |
3P/4P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM1-1600 |
S |
65 |
50 |
800 -1000 - 1250 - 1600A |
750V |
400V |
3P/4P |
8000 |
|
H |
85 |
50 |
|||||||
|
G |
100 |
50 |
|||||||
Awọn pato bọtini
Awoṣe: DAM1 Series Gbona Adijositabulu MCCB
Iru: Didi Case Circuit Breaker (MCCB)
Awọn ọpá: 3P / 4P
Iwọn Foliteji (Ue): 400V / 415V AC
Ti won won Lọwọlọwọ (Ninu): 16A - 1600A
Eto Gbona Adijositabulu: 70% - 100% Ninu
Awọn iwe-ẹri: ASTA, KEMA, CE, CB, SEMKO, RoHS
Awọn iwọn fireemu: 6 awọn iwọn fireemu
Awọn ẹya afikun: Titari-si-irin-ajo Bọtini, akọkọ lọtọ ati awọn olubasọrọ arcing
|
Oṣuwọn MCCB lọwọlọwọ (A) |
Eto Irin-ajo Gbona Min (0.7in) |
Gbona Trip Eto Max (1Inu) |
Adijositabulu Range (0.7–1Inu) |
|
16 |
11.2 |
16 |
11.2–16 |
|
32 |
22.4 |
32 |
22.4–32 |
|
63 |
44.1 |
63 |
44.1–63 |
|
100 |
70 |
100 |
70–100 |
|
250 |
175 |
250 |
175–250 |
|
400 |
280 |
400 |
280–400 |
|
630 |
441 |
630 |
441–630 |
|
800 |
560 |
800 |
560–800 |
|
1250 |
875 |
1250 |
875–1250 |
|
1600 |
1120 |
1600 |
1120–1600 |
Ilana Ṣiṣẹ & Ilana Idaabobo
★ Idaabobo Ooru (Apọju)

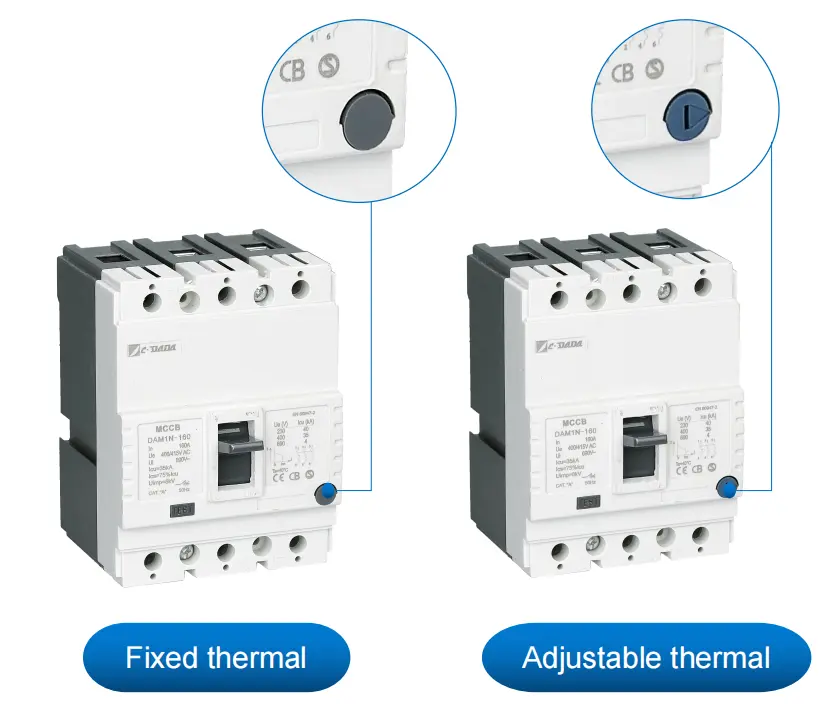

Ohun elo igbona laarin jara DAM1 nlo adikala bimetallic kan ti o tẹ nigbati o ba gbona nipasẹ isọdọtun agbero (> ti o ni iwọn lọwọlọwọ). Nipa ṣiṣatunṣe eto igbona laarin 70% ati 100% ti Ni, awọn olumulo le ṣe deede akoko idahun fifọ lati ṣe idiwọ awọn irin ajo iparun lakoko ṣiṣe aabo aabo to munadoko.★ Titari-si-Trip Bọtini
Fun awọn idi idanwo, bọtini titari-si-irin-ajo ngbanilaaye didasilẹ afọwọṣe ti fifọ, ni idaniloju iduroṣinṣin iṣiṣẹ rẹ laisi iwulo lati fa ipo aṣiṣe gangan kan.★ Lọtọ Main ati Arcing Awọn olubasọrọ
Lati jẹki agbara ati iṣẹ ṣiṣe, jara DAM1 ṣe ẹya akọkọ lọtọ ati awọn olubasọrọ arcing. Apẹrẹ yii ṣe idaniloju pe awọn olubasọrọ akọkọ ti wa ni idaabobo lakoko awọn iṣẹlẹ ti o ga julọ, ti o nmu igbesi aye ti fifọ.
Awọn oju iṣẹlẹ elo
DAM1 Thermal Adijositabulu Molded Case Circuit Breaker (MCCB) jẹ apẹrẹ fun ọpọlọpọ awọn ohun elo nibiti iṣakoso kongẹ lori aabo apọju jẹ pataki. Iwọnyi pẹlu:
★ Awọn ohun ọgbin ile-iṣẹ: Aridaju iṣẹ iduroṣinṣin ni awọn ọlọ irin, awọn ohun ọgbin kemikali, ati awọn iru ẹrọ epo.
★ Awọn ile Iṣowo: Idabobo awọn ọna itanna ni awọn ile itaja, awọn ile ọfiisi, ati awọn ile itura.
★ IwUlO: Gbẹkẹle pinpin ni substations ati agbara grids.
★ Awọn ile-iṣẹ Data: Mimu akoko ṣiṣe ni awọn amayederun IT to ṣe pataki.
Kini idi ti o yan CDADA?
1. A ni ọjọgbọn R & D egbe, ni boṣewa idagbasoke ilana. Le pese o tayọ ti adani iṣẹ.

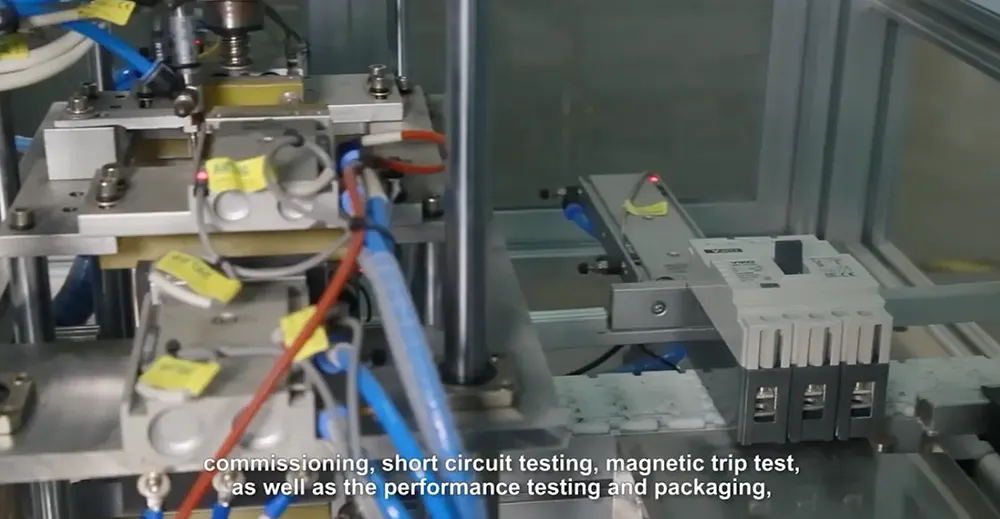

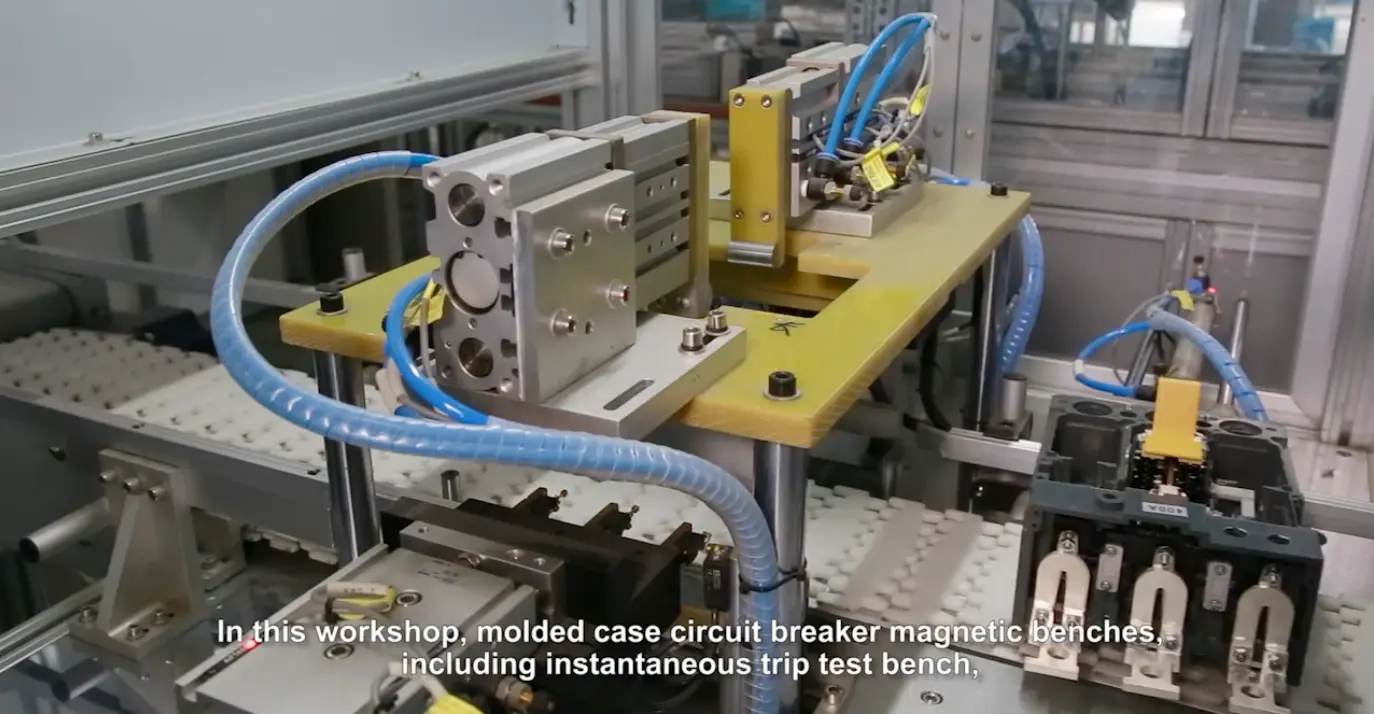

2. A ṣe agbejade ẹrọ fifọ nipasẹ laini iṣelọpọ laifọwọyi, Bayi, a ni awọn laini iṣelọpọ laifọwọyi 6. Ati agbara ojoojumọ jẹ diẹ sii ju 1000pcs.

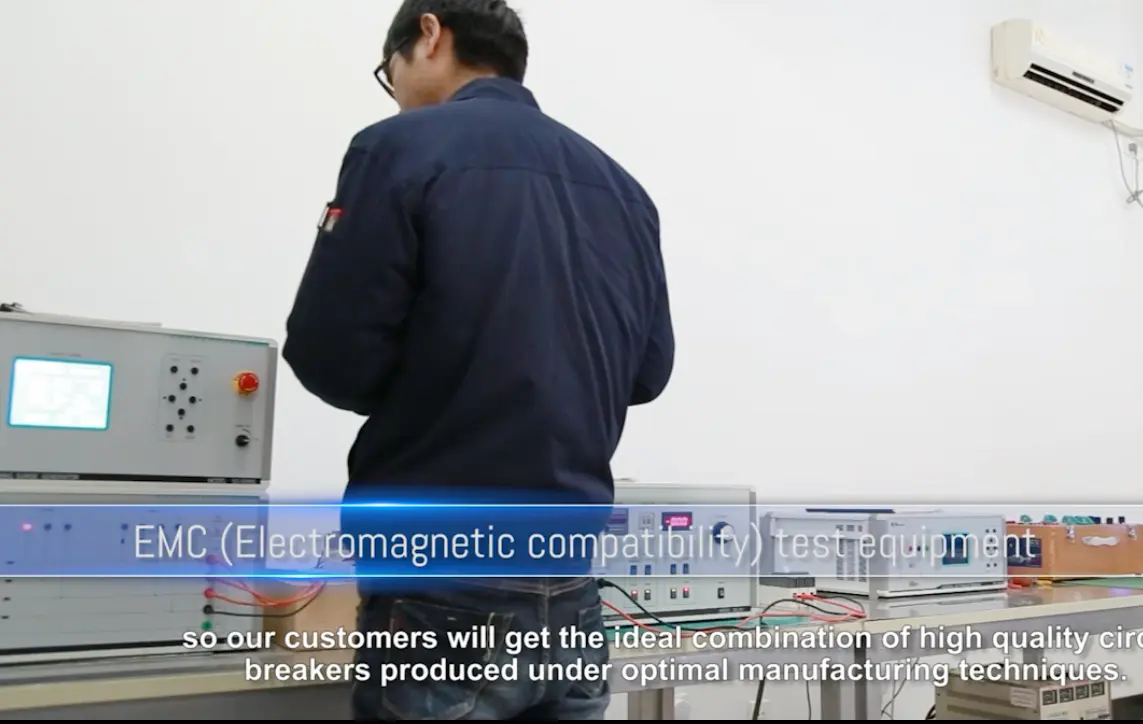

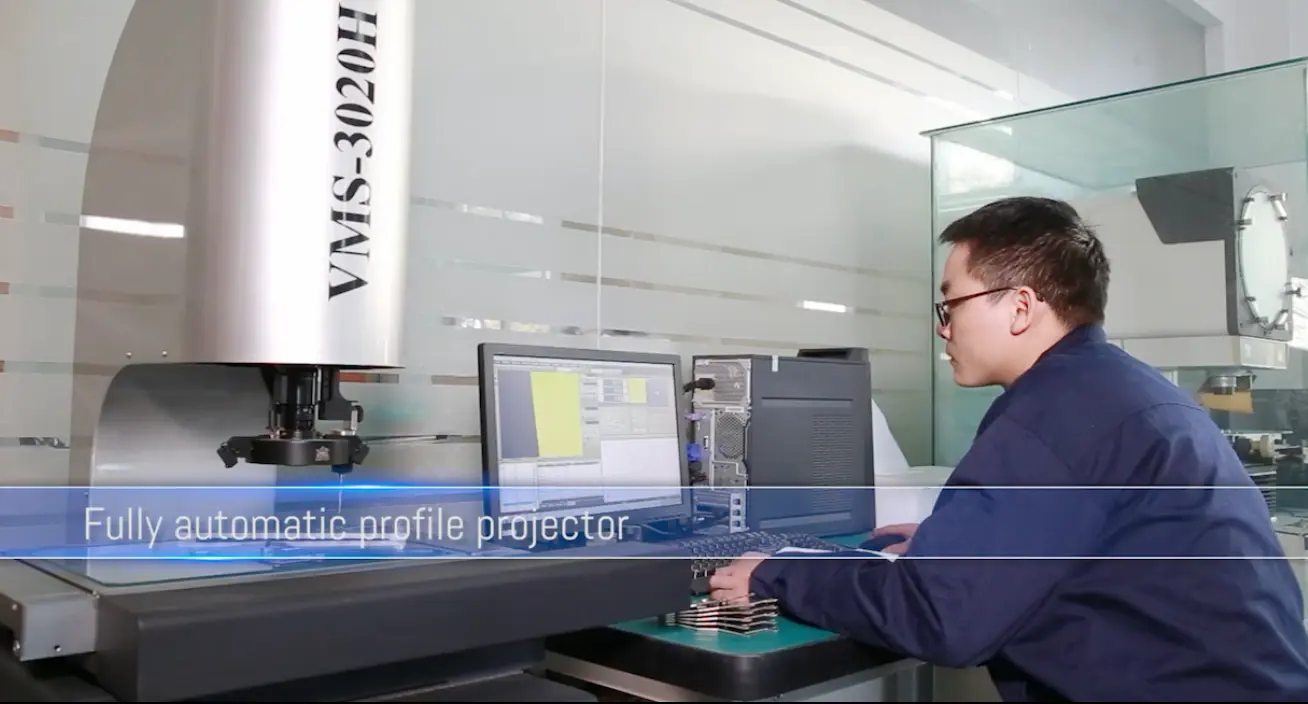

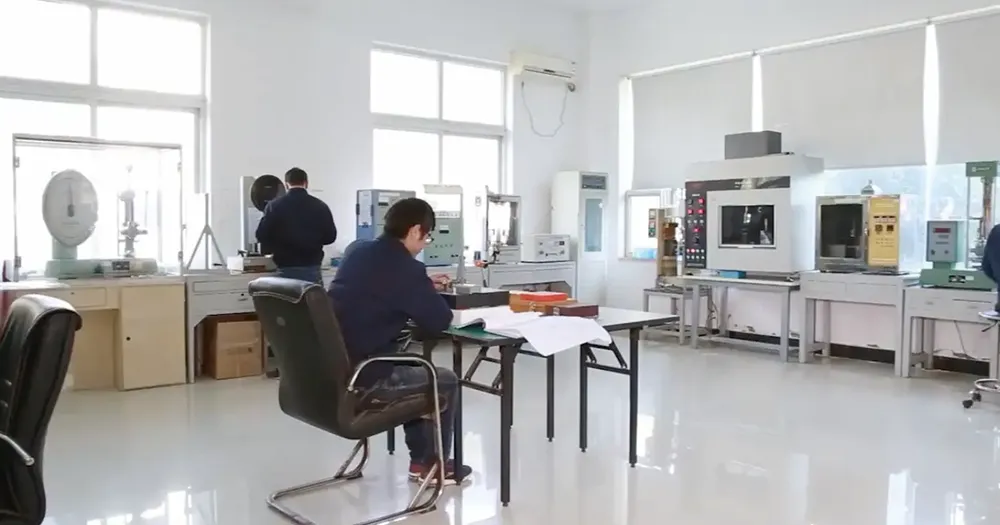

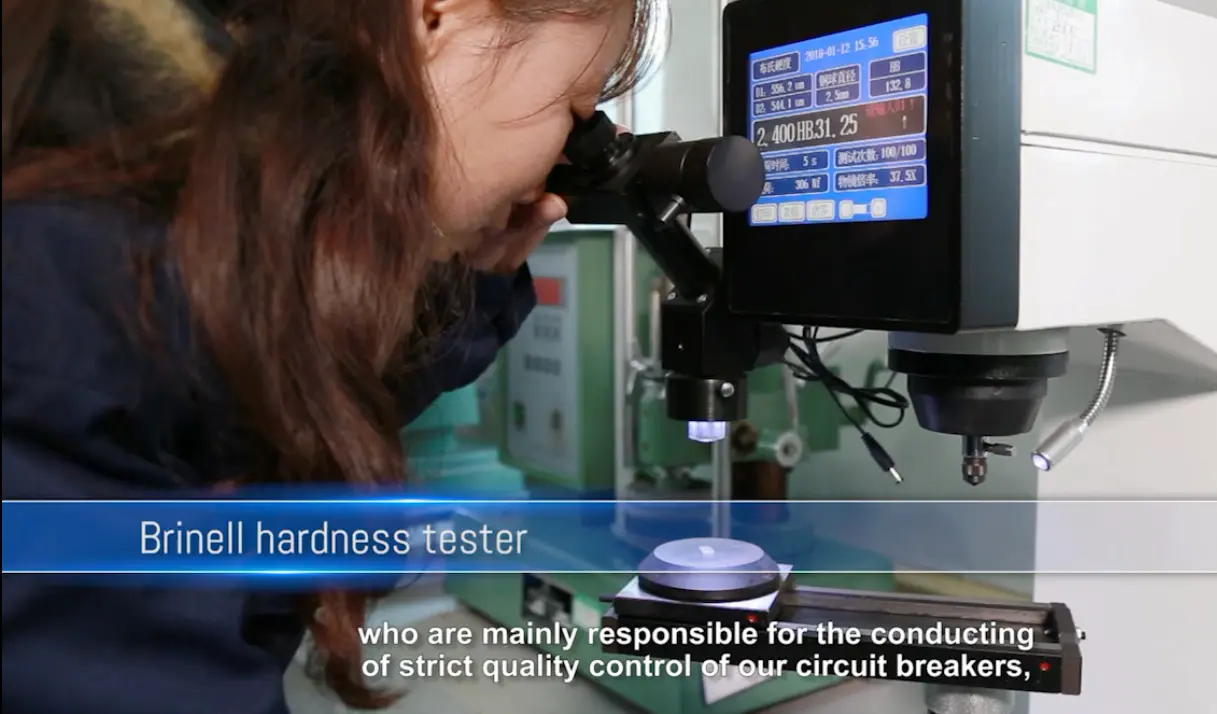

3. A ni yàrá iṣẹ-ṣiṣe ni kikun, ile-iyẹwu wa le jẹri yàrá, a le ṣe fifuye igbona, oofa, ati opin tripping, igbesi aye siseto, EMC ninu yàrá wa.

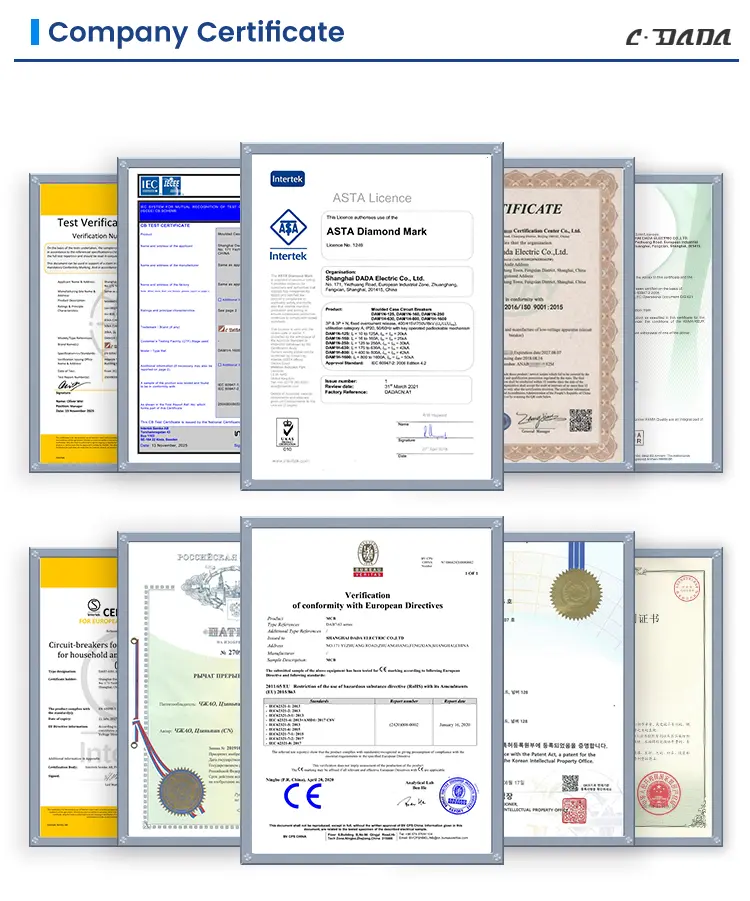

4. Ti o ti gba CB, CE, SEMKO, KEMA, ASTA, ROHS, SASO, CCC agbaye
FAQs
Q1: Kini ibiti eto igbona adijositabulu fun DAM1 MCCB?
A1: Eto igbona lori jara DAM1 le ṣe atunṣe laarin 70% ati 100% ti Ni, gbigba fun aabo apọju iṣakoso kongẹ.
Q2: Njẹ DAM1 Thermal Adijositabulu Iyipada Case Circuit Breaker le ṣee lo ni mejeeji 3-polu ati awọn atunto 4-pole?
A2: Bẹẹni, DAM1 jara wa ni awọn atunto 3P ati 4P mejeeji, ti o jẹ ki o dara fun awọn ohun elo lọpọlọpọ.
Q3: Ṣe DAM1 MCCB wa pẹlu awọn ẹya afikun eyikeyi fun idanwo tabi itọju?
A3: Bẹẹni, jara DAM1 pẹlu bọtini titari-si-irin-ajo fun idanwo irọrun ati iṣeduro iṣẹ ṣiṣe fifọ laisi fifa ipo aṣiṣe kan.
Q4: Bawo ni DAM1 MCCB ṣe mu awọn iyika kukuru?
A4: jara DAM1 pẹlu ẹrọ irin-ajo oofa ti o pese aabo lẹsẹkẹsẹ lodi si awọn iyika kukuru, ni idaniloju gige asopọ iyara ti awọn ṣiṣan aṣiṣe.
Q5: Njẹ awọn ẹya ẹrọ eyikeyi wa fun DAM1 MCCB?
A5: Bẹẹni, ọpọlọpọ awọn ẹya ẹrọ ti o wa, pẹlu awọn olubasọrọ itaniji, awọn oluranlọwọ iranlọwọ, awọn itusilẹ ti ko ni agbara, ati awọn ọna ṣiṣe ina mọnamọna, imudara irọrun ati iṣẹ-ṣiṣe ti fifọ. Gbona Tags: Iyipada Imudanu Gbona Apo Circuit fifọ, China, Olupese, Olupese, Ile-iṣẹ
