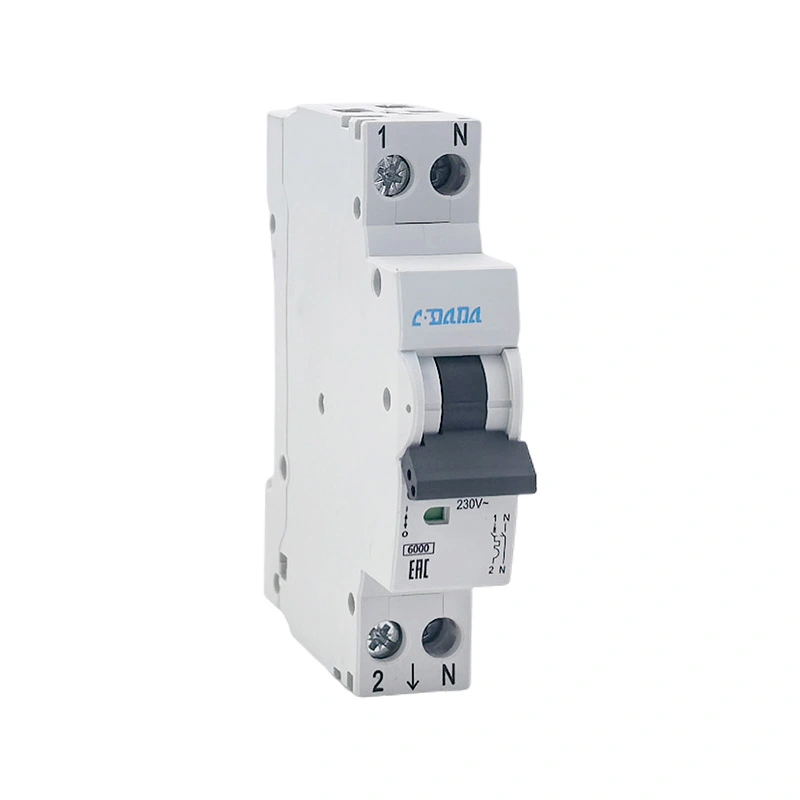

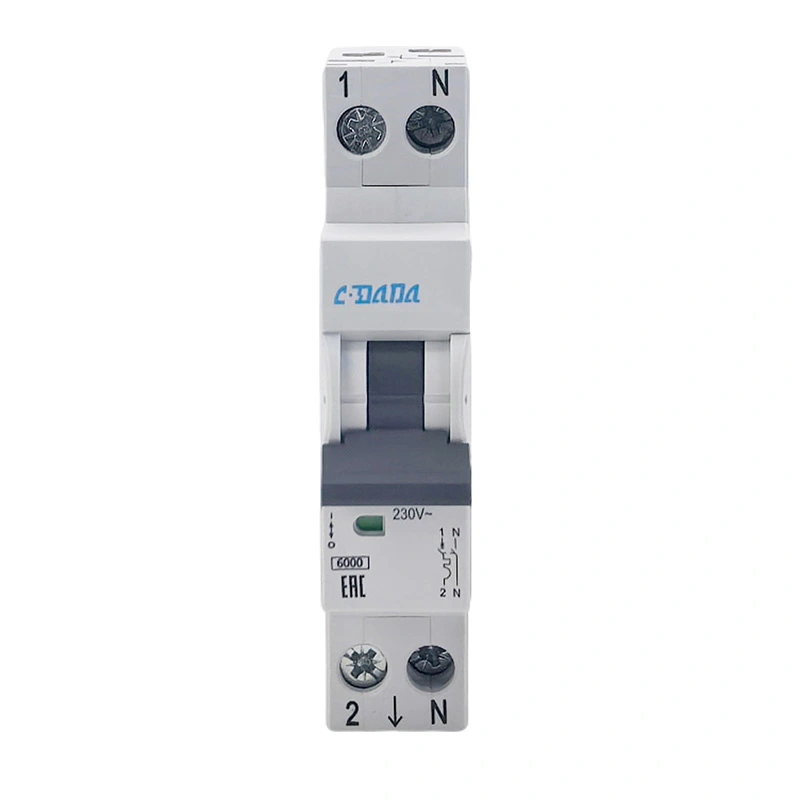

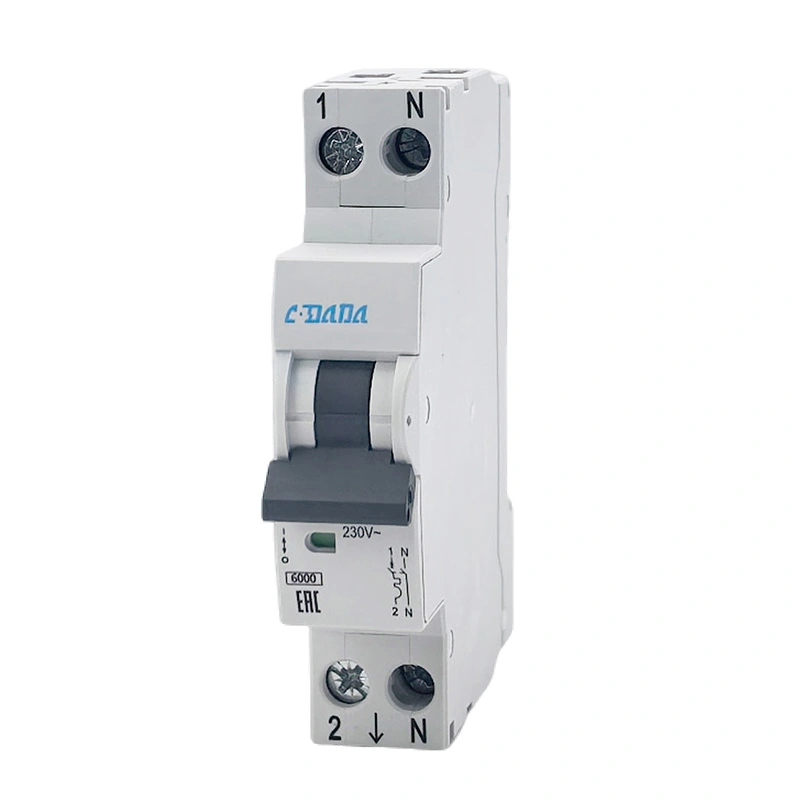

Kekere Circuit Fifọ DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA jẹ pipe fun rira olopobobo, didara didara 1P + N kekere ti o ni ibamu pẹlu IEC60898-1 fun ile ailewu ati aabo Circuit iṣowo. O nlo apẹrẹ fifọ-ojuami meji ati idọti oofa-oofa iduroṣinṣin, rọrun lati fi sori ẹrọ lori iṣinipopada DIN ati rọrun lati ṣetọju. O daapọ eto igbẹkẹle pẹlu igbesi aye iṣẹ pipẹ, aridaju ipese agbara ailewu fun ọpọlọpọ awọn ọna agbara foliteji kekere.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA jẹ ọjọgbọn 1P + N meji-breaker miniature circuit breaker ni ominira ni idagbasoke nipasẹ Shanghai DADA Electric, olupese ti o gbẹkẹle pẹlu 40+ ọdun ti iriri. Pẹlu agbara fifọ giga 6kA, iṣiṣẹ amuṣiṣẹpọ, ati N-pole “ṣe akọkọ, fọ nigbamii” apẹrẹ, o mu imunadoko iṣẹ ṣiṣe arc ṣiṣẹ ati aabo awọn iyika ati ẹrọ lailewu. Ti a lo ni awọn apoti pinpin, ọṣọ ile, agbara iṣowo, ati awọn iyika ina, o jẹ yiyan akọkọ fun awọn ti onra agbaye, awọn olupin kaakiri ati awọn alabara OEM.
Kini Awọn anfani ti MCB DPN 6KA?
★ 1P + N DPN be, meji Bireki ojuami, ailewu ati siwaju sii gbẹkẹle
★ N polu mu ki akọkọ ati ki o fi opin si nigbamii, iyi aaki kikan agbara
★ 6kA gidi kikan agbara, lagbara kukuru-Circuit Idaabobo
★ Iwapọ 17.8mm iwọn, fi aaye minisita pamọ
★ B/C tripping ekoro wa fun orisirisi awọn èyà
★ IP20 Idaabobo ite, ailewu lati fi ọwọ kan
★ Wiwa onirin: 1–25mm² okun rọ
★ DIN iṣinipopada iṣagbesori, sare ati idurosinsin fifi sori
★ Ga ati kekere otutu resistance: -25℃~+50℃
★ Long darí aye soke si 20,000 igba
Awọn ohun elo
CDADA Miniature Circuit Breaker DPN 6KA jẹ lilo pupọ ni:
★ Awọn ile ibugbe, awọn iyẹwu, awọn abule, ọṣọ ile
★ Awọn ọfiisi, awọn ile itaja, awọn ile itura, awọn ile-iwe, awọn ile-iwosan
★ Ina iyika, agbara sockets, kekere agbara itanna
★ Awọn ohun elo ile: awọn igbona omi, awọn atupa afẹfẹ, awọn igbona ina
★ Old Circuit atunkọ ati pinpin apoti Igbegasoke
★ Awọn ọna ṣiṣe pinpin agbara-kekere ti iṣowo ati ti ara ilu
Technical Parameters Table
| Nkan | Sipesifikesonu |
| Awoṣe | DAB7N-40 |
| Orukọ ọja | MCB DPN 6KA |
| Standard | IEC60898-1 |
| Awọn ọpá | 1P+N (2P) |
| Kikan Agbara | 6kA |
| Ti won won Lọwọlọwọ | 6A,16A,20A,25A,32A,40A |
| Ti won won Foliteji | AC 220/230/240V |
| Igbohunsafẹfẹ | 50/60Hz |
| Tripping Curve | B/C |
| Foliteji idabobo | 500V |
| Impulse Foliteji | 4kV |
| Idaabobo ìyí | IP20 |
| Igbesi aye ẹrọ | 20,000 igba |
| Itanna Life | 6,000 igba |
| Torque ebute | 1.5N·m |
| Agbara onirin | 1–25mm² |
| Iwọn otutu nṣiṣẹ | -25 ℃ ~ +50 ℃ |
| Awọn iwọn | 82,5× 73,2× 17,8mm |
Awọn iwọn ila
★ Ipari: 82.5mm
★ iga: 73.2mm
★ Iwọn: 17.8mm (iwọn 1-module boṣewa)
★ Iṣagbesori: 35mm DIN iṣinipopada
★ Wiring: o dara fun 1–25mm² rọ / okun lile
★ sisanra Busbar: 0.8–2mm
Standard Igbeyewo Awọn ohun
★ 1.13Ninu idanwo ti kii-tripping (≥1 wakati)
★ 1.45 Ninu idanwo tripping (<1 wakati)
★ 2.55In apọju igbese igbeyewo
★ Idanwo tripping lẹsẹkẹsẹ oofa (3In/5In fun B/C ti tẹ)
★ Dielectric withstand foliteji igbeyewo
★ Igbeyewo dide otutu
★ Idanwo agbara fifọ kukuru-kukuru (6kA)
★ Mechanical & itanna aye igbeyewo
★ Ga & kekere otutu isẹ igbeyewo

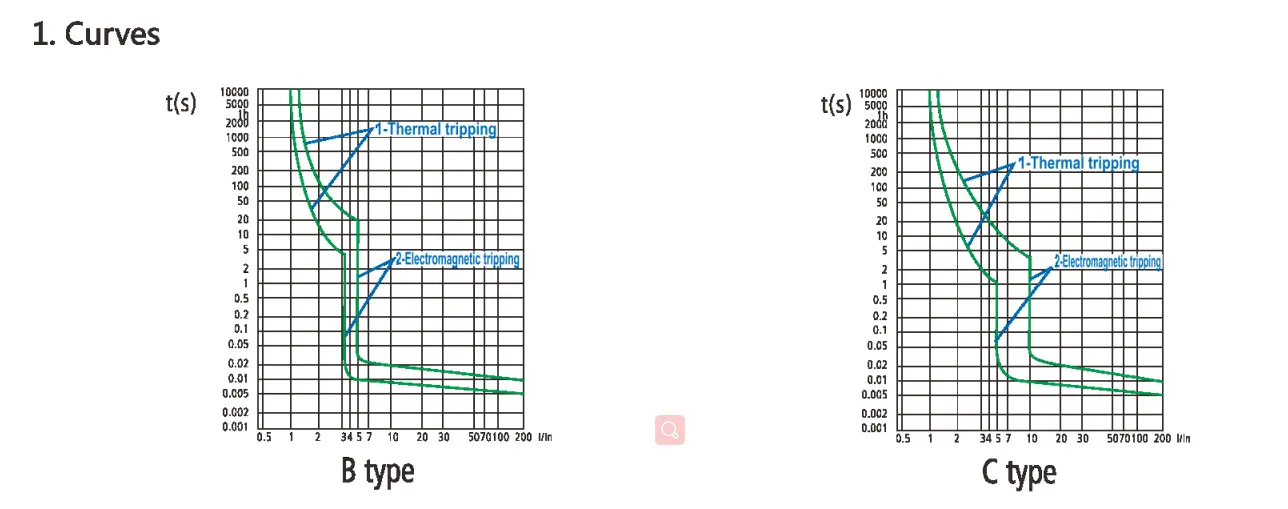

Tripping Abuda ekoro
IEC 60898-1
Itusilẹ oofa
Nigba ti a Circuit kukuru Circuit waye, instantaneous tripping waye nipa a oofa pẹlu ohun irin mojuto. Gẹgẹbi boṣewa IEC60898, ọja yii le pin si awọn oriṣi mẹta: B, C, ati D.
|
|
Idanwo lọwọlọwọ | Akoko Tripping | Awọn ohun elo |
| B ìsépo | 3ln 5ln |
0.1 |
Iru B nikan wulo fun awọn ẹru ti nṣiṣe lọwọ: -Igbona itanna-Igbona omi-ileru itanna |
| C ìsépo | 5Ninu 10ln |
0.1 |
Iru C ni o dara fun arinrin èyà: -Atupa -Power iho -Kekere agbara motor |
Itusilẹ gbona
●Ni kete ti apọju ba waye ninu Circuit, ṣiṣan bimetallic ti olutọpa Circuit yoo tẹ nitori ooru, nfa ki awọn olubasọrọ ge asopọ ati abajade ni ijakadi gbona;
● Iwọn IEC n ṣalaye ibiti akoko tripping fun awọn ṣiṣan apọju ti o yatọ;
● Iwọn otutu ayika idanwo itọkasi jẹ 30 °C.
| Idanwo lọwọlọwọ | Akoko Tripping |
| 1.13ln | t z 1h(ni ≦ 63A) |
| 1.45ln | t<1h(Ninu ≦ 63A) |
| 2.55ln | 1s<1h<60s(Ninu≤32A)1s |

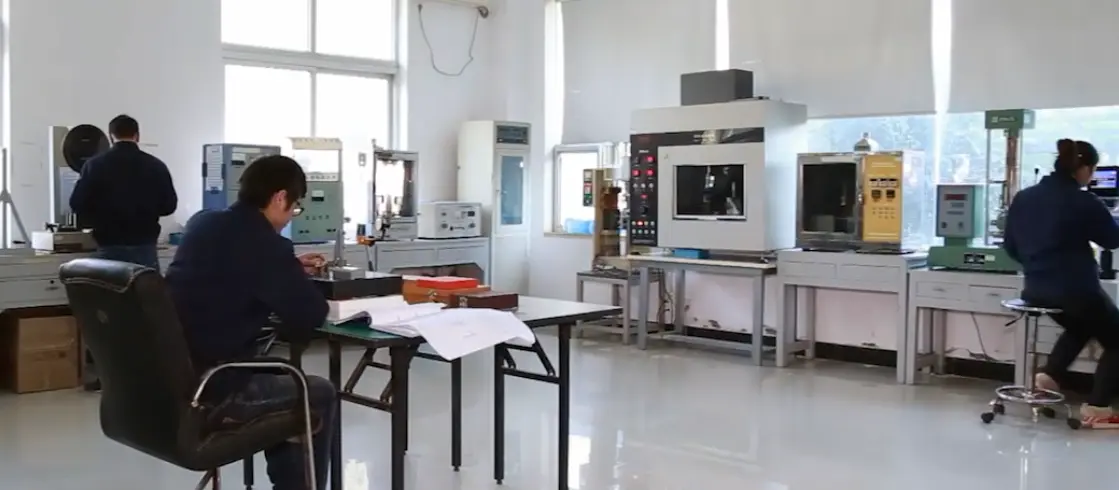

Ilana Iṣakoso Didara
1. Aise ohun elo ti nwọle ayewo & ijẹrisi ijẹrisi
2. Imudani abẹrẹ laifọwọyi & fifẹ irin ti o tọ
3. Apejọ ọja ologbele-pari & isọdọtun
4. 100% full tripping ti iwa igbeyewo
5. Duro foliteji & idanwo iṣẹ idabobo
6. Igbeyewo ti ogbo ti o ga ati kekere
7. Irisi, iwọn & iṣayẹwo aami
8. Apoti ipari & ayewo gbigbe
Iṣakojọpọ & Gbigbe
★ Standard okeere paali pẹlu shockproof ikan
★ Group apoti jo lati yago fun ibere
★ Ko aami: awoṣe, lọwọlọwọ, ọpá, opoiye, iwe eri
★ Dara fun okun, air ati ilẹ transportation
★ Atilẹyin OEM apoti, aṣa logo ati aami
Awọn ọran Aṣeyọri Onibara
CDADA MCB DPN 6KA ti jẹ okeere si diẹ sii ju awọn orilẹ-ede ati agbegbe 50 lọ:
★ Ipese olopobobo igba pipẹ fun awọn olupin Yuroopu ati Asia
★ Awọn iṣẹ isọdọtun iyika ti idile ni Aarin Ila-oorun & Afirika
★ OEM ifowosowopo pẹlu daradara-mọ okeere itanna burandi
★ Atilẹyin pinpin agbara fun awọn olupilẹṣẹ ohun-ini gidi
★ Idurosinsin ibere lati itanna kontirakito ati eto integrators
Kini idi ti o yan DADA Electric?
★ 40+ ọdun ti awọn ọjọgbọn iriri ni Circuit fifọ R&D ati gbóògì
★ 90% mojuto irinše produced ni-ile, idurosinsin didara iṣakoso
★ ISO9001 ifọwọsi, ni kikun ibamu pẹlu okeere awọn ajohunše
★ Awọn iwe-ẹri pipe: CE, CB, CCC, ati bẹbẹ lọ.
★ Agbara iṣelọpọ nla, ifijiṣẹ yarayara fun awọn aṣẹ olopobobo
★ Ọjọgbọn imọ support ati lẹhin-tita iṣẹ
★ Gba OEM & ODM isọdi lati pade awọn ibeere ọja
★ Eto eekaderi agbaye, ailewu ati ifijiṣẹ akoko
