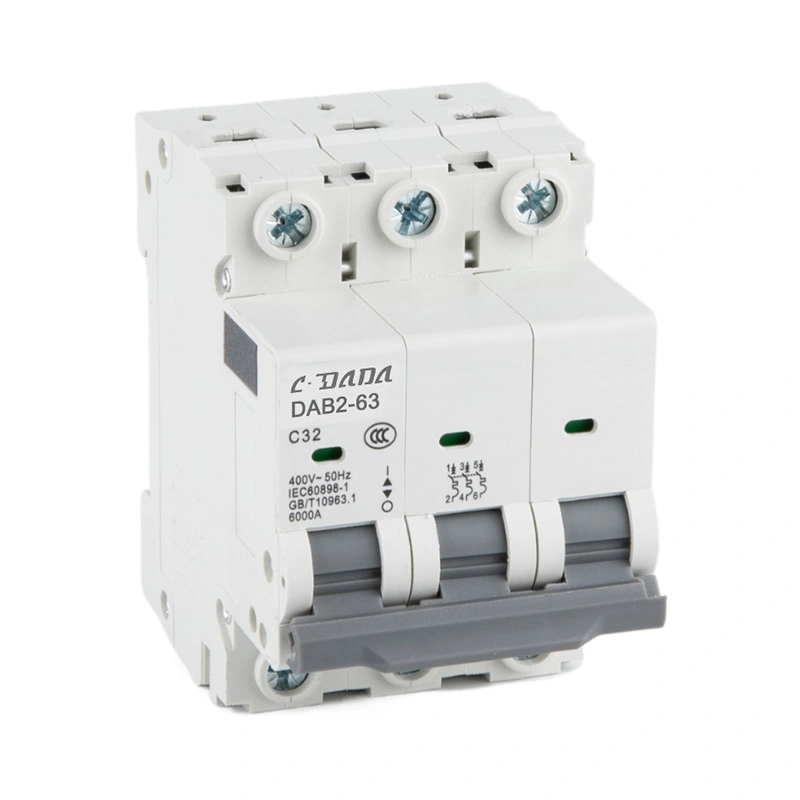

3 Alakoso MCB Fifọ
Model:DAB2-63
Yan CDADA bi olupese ati olupese rẹ, ati gba 3 Alakoso MCB Breaker, CE CB CCC ti ni ifọwọsi pẹlu agbara fifọ 6kA fun ile-iṣẹ ati pinpin agbara iṣowo. Ọja yii nlo ikarahun ti ina-iná ati didimu oofa-oofa deede, rọrun lati gbe sori iṣinipopada DIN ati rọrun lati ṣetọju. O daapọ iṣẹ iduroṣinṣin pẹlu ẹrọ gigun ati igbesi aye itanna, aridaju aabo iyika ailewu fun awọn eto agbara ipele-mẹta.
CDADA DAB2-63 3 Alakoso MCB Breaker jẹ fifọ iyika kekere ti o ni agbara giga ti a ṣe apẹrẹ fun awọn ọna ṣiṣe pinpin agbara AC-mẹta. O pese apọju ni kikun ati aabo kukuru-yika, pẹlu awọn iyipo tripping B/C/D lati baamu awọn ẹru oriṣiriṣi.
Ti a ṣe pẹlu ohun elo imuduro ina ati awọn paati konge, MCB-ipele 3 yii jẹ lilo pupọ ni awọn igbimọ pinpin, ohun elo ile-iṣẹ, ati awọn eto itanna ile.
Awọn anfani bọtini
★ 3-alakoso iwapọ oniru, o dara fun boṣewa pinpin apoti
★ 6kA ga kikan agbara fun gbẹkẹle kukuru-Circuit Idaabobo
★ Ferese itọkasi wiwo: pupa ON / alawọ ewe PA fun ipo mimọ
★ Wide mu fun idurosinsin isẹ ati ni aabo asopọ
★ Notched ebute clamps lati din ooru ati ki o mu onirin iduroṣinṣin
★ Agekuru DIN iṣinipopada meji-meji fun iyara, fifi sori ẹrọ duro
★ ikarahun ti ina-ina, resistance otutu otutu
★ 100% ni kikun factory igbeyewo ṣaaju ki o to sowo
Awọn ohun elo
★ CDADA 3 Alakoso MCB Breaker jẹ lilo pupọ ni:
★ Ibugbe, ti owo ati ki o àkọsílẹ ile pinpin paneli
★ Awọn idanileko ile-iṣẹ, awọn ile-iṣelọpọ, ati awọn ohun elo agbara kekere
★ egeb, compressors, bẹtiroli, hoisting ẹrọ
★ Awọn ọna ina, awọn iho agbara, ati awọn iyika motor-alakoso mẹta
★ Amayederun, agbara grids, ati itanna minisita ise agbese
Imọ paramita
|
Nkan |
Sipesifikesonu |
|
Awoṣe |
DAB2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Standard |
IEC60898-1, GB10963.1 |
|
Awọn iwe-ẹri |
CE, CB, CCC, ASTA |
|
Kikan Agbara |
4.5kA, 6kA |
|
Ti won won Lọwọlọwọ |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B(3-5Inu), C (5-10Inu), D(10-20Ninu) |
|
Ti won won Foliteji |
400/415V AC |
|
Foliteji idabobo |
500V AC |
|
Impulse Foliteji |
4kV |
|
Idaabobo ìyí |
IP20 |
|
Fifi sori ẹrọ |
35mm DIN iṣinipopada |
|
Igbesi aye ẹrọ |
20.000 iyipo |
|
Itanna Life |
10.000 iyipo |
|
Ina Class |
UL94 V0 |
|
Ibaramu otutu |
-25 ℃ ~ +45 ℃ |
|
Ibiti onirin |
0.75–35mm² ri to / okun |
Awọn iwọn ila
★ Standard iwọn: 17.8mm fun polu
★ 3P lapapọ iwọn: 53.4mm
★ Iṣagbesori: 35mm DIN iṣinipopada (eyikeyi ipo)
★ Yiyi okun: 3.5N·m
★ Iwapọ be fun boṣewa itanna minisita
Iṣakoso didara
★ ISO9001 didara isakoso eto
★ 90% ti mojuto irinše produced ni-ile
★ 100% odiwọn: 1.13Ni ti kii-irin ajo, 1.45Ni irin ajo
★ Idanwo tripping oofa (5In / 10In fun C-curve)
★ Ga ati kekere otutu ìfaradà igbeyewo
★ Ti ogbo ati ijẹrisi igbesi aye ẹrọ
Iṣakojọpọ & Gbigbe
★ Standard okeere paali pẹlu shockproof ikan
★ Ko aami: awoṣe, ọpá, lọwọlọwọ, opoiye, awọn iwe-ẹri
★ apoti apoti ẹgbẹ lati yago fun ibere ati ibajẹ
★ Dara fun okun, afẹfẹ, ati gbigbe ilẹ
★ Atilẹyin OEM apoti ati aṣa aami
Awọn ọran Aṣeyọri Onibara
★ CDADA 3 Alakoso MCB Breaker ni ifowosowopo igba pipẹ pẹlu awọn alabara agbaye:
★ Ibugbe & awọn iṣẹ ile iṣowo ni Yuroopu, Guusu ila oorun Asia, Aarin Ila-oorun
★ Industrial factory pinpin agbara ni Africa, South America, Asia
★ OEM & ODM Ìbàkẹgbẹ pẹlu agbaye itanna burandi
★ Ipese olopobobo igba pipẹ fun awọn olupin kaakiri agbaye & awọn alagbaṣe
★ lilo jakejado ni awọn grids agbara, amayederun, ati itanna eto integrators
