Gbẹkẹle MCCB Awọn ẹya ẹrọ Factory

Ni afikun si wa okeerẹ ibiti o tiAwọn olufọpa Circuit Case (MCCBs), CDADA tun funni ni yiyan kikun ti awọn ẹya ẹrọ MCCB ti o somọ. Mejeeji ti inu ati ita awọn ẹya ẹrọ wa; jọwọ kan si wa ti o ba nilo iranlọwọ pẹlu yiyan ọja tabi atilẹyin imọ-ẹrọ.

Kini Awọn ẹya ẹrọ MCCB?

MCCB ẹya ẹrọ jẹ awọn ẹrọ afikun ti a ṣe apẹrẹ lati mu iṣẹ ṣiṣe, aabo, ati awọn agbara iṣakoso ti Molded Case Circuit Breakers (MCCBs). Awọn ẹya ẹrọ wọnyi yi pada fifọ Circuit ipilẹ kan sinu oye, paati iṣọpọ ti pinpin itanna igbalode ati awọn eto iṣakoso. Ṣiṣẹ labẹIEC 60947-2 (Circuit-breakers) atiIEC 60947-4-1 (awọn olubasọrọ ati awọn olubere mọto), awọn ẹya ẹrọ MCCB jẹ ki iṣẹ ṣiṣe latọna jijin ṣiṣẹ, ibojuwo ipo, interlocking ailewu, ati isọpọ ailopin pẹlu iṣakoso ile ati awọn eto adaṣe ile-iṣẹ.

Awọn ẹya ara ẹrọ MCCB ṣubu si awọn ẹka akọkọ meji:

Ti abẹnu Awọn ẹya ẹrọ: Ti gbe inu iho fifọ (awọn irin-ajo shunt, awọn idasilẹ labẹ agbara,awọn olubasọrọ iranlọwọ, awọn olubasọrọ itaniji)

Ita Awọn ẹya ẹrọ: Ti a gbe sori ode fifọ tabi apade (awọn ọwọ iyipo, awọn titiipa ilẹkun, awọn ideri ebute, awọn ọpa ti o gbooro)

Ọja ẹya ara ẹrọ MCCB agbaye n ni iriri idagbasoke pataki ti o ni idari nipasẹ isọdọmọ akoj smart, adaṣe ile-iṣẹ, ati isọdọtun agbara isọdọtun, pẹlu awọn aṣelọpọ bii Schneider Electric, ABB, Eaton, ati Chint ti n funni ni awọn portfolios ẹya ẹrọ ibaramu ni ibamu si awọn sakani MCCB wọn.

Awọn ẹka Ọja ẹya ẹrọ MCCB & Awọn atunto

Ẹka	Ẹya ẹrọ Iru	Išẹ	Imọ ni pato
Latọna Isẹ	Irin-ajo Shunt (MX)	Latọna tripping nipasẹ ita foliteji ifihan agbara	AC: 24V, 48V, 110V, 230V, 400V; DC: 12V, 24V, 48V, 110V; Inrush 200VA (AC) / 200W (DC), Igbẹhin 20VA (AC) / 20W (DC); Akoko irin ajo <50ms
	Itusilẹ labẹ foliteji (MN/UVR)	Tripping laifọwọyi nigbati foliteji ṣubu ni isalẹ ala	Gbigba: 0.85× Un; Idasilẹ: 0.35-0.7 × Un; Idaduro akoko: 0.1s-3s (atunṣe); Iṣẹ-ṣiṣe ti o tẹsiwaju
	Oṣiṣẹ mọto (MO)	Gbigba agbara ina ati isẹ ti ẹrọ fifọ	AC / DC ipese, 3-5s akoko iṣẹ, danu afọwọṣe, esi ipo
Iforukọsilẹ ipo	Awọn olubasọrọ Iranlọwọ (AX)	Tọkasi ipo fifọ (TAN/PA)	1NO + 1NC tabi 2NO + 2NC, 10A ni 230V AC, fadaka alloy awọn olubasọrọ, imolara-igbese
	Awọn olubasọrọ Itaniji (AL)	Fifọ ifihan agbara ja nitori asise	1NO + 1NC, nṣiṣẹ nikan lori irin ajo (kii ṣe afọwọṣe PA), yatọ si oluranlowo
	Awọn olubasọrọ ifihan agbara aṣiṣe	Tọkasi awọn iru aṣiṣe kan pato (apọju, kukuru kukuru, ẹbi ilẹ)	Microswitch-orisun, ese pẹlu itanna irin ajo sipo
Aabo & Interlocking	Rotari Handle	Iṣẹ ita nipasẹ ẹnu-ọna / nronu	Taara tabi gbooro sii, padlockable, IP65, titiipa ilẹkun
	Ilẹkun Interlock	Ṣe idiwọ ṣiṣi ilẹkun nigbati fifọ ON	Asopọmọra ẹrọ, ṣẹgun fun iraye si pajawiri
	Titiipa bọtini	Fi ihamọ iṣẹ si oṣiṣẹ ti a fun ni aṣẹ	Awọn oriṣi titiipa pupọ (Ronis, Profalux), yiyọ bọtini ni ON tabi PA
	Interlock darí	Ṣe idinamọ pipade igbakanna ti awọn fifọ meji	USB tabi opa iru, fun changeover ohun elo
Idaabobo & Abojuto	Awọn ideri ebute	Dena lairotẹlẹ olubasọrọ pẹlu ifiwe awọn ẹya ara	IP20 to IP40, alakoso idena, tesiwaju fun busbar asopọ
	Awọn idena Alakoso	Mu kiliaransi pọ si laarin awọn ipele	Awọn ohun elo idabobo, 400-690V ti o ni idiyele, apẹrẹ modular
	Ẹrọ Idaabobo Iṣẹ abẹ (SPD)	Dabobo fifọ kuro lọwọ awọn ṣiṣan ina	Iru 1 + II, 12.5-15kA imudani lọwọlọwọ, iṣagbesori ese
Ibaraẹnisọrọ & Smart	Olubasọrọ Iranlọwọ Alailowaya	Abojuto ipo latọna jijin nipasẹ Bluetooth/WiFi	Tuya App ibaramu, iwọn 45mm, batiri tabi agbara ti ara ẹni
	Modbus Communication Module	Integration pẹlu BMS/SCADA awọn ọna šiše	RS485 ni wiwo, gidi-akoko data, isakoṣo latọna jijin agbara
	Sensọ Agbara Agbara Tag	Ailokun agbara monitoring	1% išedede, data iṣẹju 15, awọsanma Asopọmọra

Matrix Ibamu Ẹya ẹrọ (Aṣoju):

MCCB fireemu Iwon	Shunt Irin ajo	UVR	Iranlọwọ	Motor onišẹ	Rotari Handle
100A-250A	Ti abẹnu	Ti abẹnu	Ti abẹnu / Ita	Ita	Ita
250A-630A	Ti abẹnu	Ti abẹnu	Ti abẹnu / Ita	Ti abẹnu / Ita	Ita
630A-1600A	Ti abẹnu	Ti abẹnu	Ti abẹnu	Ti abẹnu	Ita / gbooro sii
1600A-2000A	Ita	Ita	Ita	Ita	Ti o gbooro sii / Eru-ojuse

Awọn iṣẹ pataki & Ilana Iṣiṣẹ

Shunt Trip (MX) - Latọna Tripping Mechanism

Ẹya ara ẹrọ	Išẹ	Awọn alaye imọ-ẹrọ
Electromagnetic Coil	Ṣe ina aaye oofa nigba ti agbara	AC: Inrush 200VA, edidi 20VA; DC: Inrush 200W, edidi 20W; Kilasi idabobo F (155°C)
Plunger Mechanism	Kọlu ọpa irin ajo lati tu ẹrọ silẹ	Irin lile, ipadabọ orisun omi, ọpọlọ 5-10mm
Olubasọrọ System	Ya sọtọ lati akọkọ fifọ iyika	Idabobo imudara, 4kV imuduro duro
Iṣagbesori	Imolara-fit tabi dabaru-agesin ni fifọ iho	Fifi sori ẹrọ laisi ọpa lori ọpọlọpọ awọn MCCBs ode oni

Ilana Iṣiṣẹ:

Foliteji Iṣakoso ti a lo si awọn ebute irin ajo shunt (paapaa 110-240V AC tabi 24V DC)

Coil n funni ni agbara, ti o ṣẹda aaye oofa

Plunger kọlu ọpa irin ajo fifọ pẹlu ipa 2-5N

Awọn idasilẹ ẹrọ, awọn olubasọrọ akọkọ ṣii

Plunger pada nipasẹ orisun omi nigbati foliteji kuro

Fifọ nilo atunto afọwọṣe (pipade)

Awọn ohun elo:

Awọn ọna ṣiṣe idaduro pajawiri (awọn bọtini E-stop)

Iṣọkan eto itaniji ina (tiipa adaṣe)

Gbigbe ẹru jijinna (idahun ibeere)

Awọn ero gbigbe monomono (šiši imuṣiṣẹpọ)

Itusilẹ Undervoltage (MN/UVR) - Abojuto Foliteji

Paramita	Sipesifikesonu	Aabo Išė
Gbigba Foliteji	0.85 × Un (a le pa apanirun)	Idilọwọ pipade lori kekere foliteji
Idasonu Foliteji	0.35-0.7 × Un (atunṣe)	Laifọwọyi irin ajo lori undervoltage
Idaduro akoko	0.1s-3s (awọn iru ẹrọ itanna)	Dena iparun tripping lati foliteji dips
Tesiwaju ojuse	100% ti won won foliteji	Coil ni agbara nigbagbogbo lakoko iṣẹ ṣiṣe deede

Ilana Iṣiṣẹ: Okun UVR ti ni agbara nigbagbogbo lakoko iṣẹ ṣiṣe deede, ti o ni idaduro latch ẹrọ kan ni pipade. Nigbati foliteji ba lọ silẹ ni isalẹ iloro fun idaduro akoko ti a ṣeto, itusilẹ latch ati fifọ awọn irin ajo laifọwọyi. Eyi ṣe idilọwọ:

Ibajẹ mọto lati ibẹrẹ kekere-foliteji (lọwọlọwọ giga, igbona pupọ)

Tun bẹrẹ ti ko ni iṣakoso lẹhin imupadabọ agbara (ewu aabo)

Ṣiṣẹ ẹrọ labẹ awọn ipo foliteji ti ko ni aabo

Oluranlọwọ & Awọn olubasọrọ Itaniji - Iforukọsilẹ ipo

Olubasọrọ Iru	Isẹ	Ohun elo
Olubasọrọ Iranlọwọ (AX)	Awọn iyipada ipo pẹlu awọn olubasọrọ akọkọ fifọ	Itọkasi ipo (ON/PA), interlocking, iṣakoso awọn iyika
Olubasọrọ Itaniji (AL)	Ṣiṣẹ nikan lori irin-ajo aladaaṣe (apọju/yika kukuru)	Itọkasi aṣiṣe, awọn panẹli itaniji, awọn itaniji itọju
Itaniji igba kukuru	Ni pato si iṣẹ irin-ajo oofa	Atọka aṣiṣe yiyan
Itaniji apọju	Specific to gbona irin ajo isẹ	Idena itọju okunfa

Awọn Iwọn Olubasọrọ (Aṣoju):

AC-15: 10A ni 230V AC (awọn ẹru inductive)

DC-13: 2A ni 110V DC (awọn ẹru inductive)

Ikojọpọ ti o kere julọ: 10mA ni 5V (ibaramu PLC)

Igbesi aye ẹrọ: 10,000-100,000 mosi

Igbesi aye Itanna:Awọn iṣẹ ṣiṣe 5,000-50,000 (ni ẹru ti a ṣe iwọn)

Ohun elo Ayika & Lo Awọn igba

Ohun elo	Ẹya ẹrọ iṣeto ni	Awọn ibeere imọ-ẹrọ	Ijọpọ
Adaṣiṣẹ ile-iṣẹ	Shunt irin ajo + 2× Iranlọwọ + Onišẹ mọto	24V DC iṣakoso, iṣẹ iyara (<50ms), esi ipo	PLC/DCS Integration, latọna jijin HMI Iṣakoso
Commercial Buildings	UVR + Iranlọwọ + Rotari mu	230V AC, ẹnu-ọna interlock, padlockable	BMS Integration, ina itaniji ni wiwo
Awọn ile-iṣẹ data	Shunt irin ajo + Itaniji + module ibaraẹnisọrọ	48V DC, laiṣe ifihan agbara, Modbus / BACnet	DCIM software, aládàáṣiṣẹ fifuye ta
Awọn ohun elo Ilera	UVR + 2× Iranlọwọ + Titiipa bọtini	Iṣe iṣoogun, igbẹkẹle giga, wiwọle ihamọ	Isakoso agbara pataki, awọn panẹli ipinya
Agbara isọdọtun	Shunt irin ajo + Idaabobo gbaradi + Alailowaya	1000V DC agbara, ita gbangba Rating, latọna monitoring	Oorun SCADA, agbara isakoso awọn ọna šiše
Epo & Gaasi	Bugbamu-ẹri ẹya ẹrọ + UVR + Shunt	ATEX/IECEx ifọwọsi, ipata-sooro, Tropicalized	Awọn ọna ṣiṣe tiipa pajawiri (ESD)
Marine / ti ilu okeere	Tropicalized UVR + Mechanical interlock	55°C ibaramu, iyo sokiri sooro, laiṣe	Ọkọ adaṣiṣẹ, monomono amuṣiṣẹpọ
Amayederun	Motor onišẹ + Gbooro Rotari + Ipo yipada	400V AC, eru-ojuse, 50.000 ọmọ aye	Awọn ọna SCADA, awọn ile-iṣẹ iṣakoso latọna jijin

Smart Building Integration Apeere: Awọn ẹya ẹrọ MCCB ode oni jẹ ki iṣakoso agbara okeerẹ ṣiṣẹ:

Awọn sensọ alailowaya PowerTag atẹle lọwọlọwọ, foliteji, agbara ifosiwewe fun fifọ

Awọn olubasọrọ oluranlọwọ alailowaya atagba fifọ ipo to aringbungbun eto

Awọn irin ajo Shunt jeki aládàáṣiṣẹ fifuye ta nigba tente eletan

Modbus modulu ṣepọ pẹlu adaṣe ile fun itọju asọtẹlẹ

Ilana iṣelọpọ & Ṣiṣẹda Ṣiṣẹjade

Konge Manufacturing ọkọọkan

Ohun elo Raw IQC → Yiyi okun itanna → Plunger/Armature Machining → Kan si System Fabrication → Housing Injection Molding → Sub-Apeso → Iṣatunṣe & Idanwo → Isọpọ Ipari → Iṣakojọpọ

Lominu ni Awọn ipele iṣelọpọ

Ipele	Awọn alaye ilana	Awọn aaye Iṣakoso Didara
Okun Yiyi	Okun Ena ti a fiweranṣẹ (0.1-0.5mm), yiyi adaṣe adaṣe pẹlu iṣakoso ẹdọfu, impregnation varnish igbale	Yipada kika ± 1%, resistance DC ± 5%, agbara dielectric 2kV/1min, resistance idabobo> 100MΩ
Plunger / Armature Machining	Irin ti yiyi tutu tabi irin lulú irin, lilọ konge, lile (HRC 45-55), itọju oju	Ifarada iwọn ± 0.02mm, ipari dada Ra 0.8, permeability oofa> 5000
Olubasọrọ iṣelọpọ	Fadaka-nickel (AgNi 90/10) tabi fadaka-cadmium oxide (AgCdO), stamping, riveting tabi alurinmorin si awọn ti ngbe Ejò	Lile HV 80-120, resistance olubasọrọ <50mΩ, agbara brazing> 50MPa
Housing Molding	PA66 GF30 tabi PBT GF30, 280-320°C abẹrẹ, 17.5mm modularity fun DIN iṣinipopada ibamu	Ifarada iwọn ± 0.1mm, atọka ipasẹ> 600V, UL 94 V-0
Spring Manufacturing	Epo-tempered erogba, irin SWOSC-V tabi irin alagbara, irin 301, CNC coiling, ooru itọju	Igbesi aye rirẹ> awọn iyipo 100,000, oṣuwọn orisun omi ± 10%, isinmi <5%
Iha-Apejọ	Coil-plunger-olubasọrọ Integration, ọpọlọ tolesese, imolara-fit siseto igbeyewo	Foliteji ṣiṣiṣẹ 0.85-1.1 × Un, ipa irin ajo 2-5N, akoko idahun <50ms
Ipari Ipari	Ijerisi foliteji gbigbe/dasilẹ (UVR), wiwọn akoko iṣẹ (irin-ajo shunt), resistance olubasọrọ	Idanwo adaṣe adaṣe 100%, gedu data, ifaminsi QR itọpa

Awọn ohun elo Raw akọkọ & Awọn pato paati

Ẹya ara ẹrọ	Ohun elo Specification	Awọn ajohunše olupese	Awọn ohun-ini bọtini
Okun Okun	Enamed okun waya Ejò Kilasi F (155°C) tabi Kilasi H (180°C)	IEC 60317, NEMA MW 35	Foliteji didenukole> 2kV, solderability 390 ° C / 2s, irọrun
Oofa Core	Silikoni irin laminations (0.35-0.5mm) tabi ri to irin	IEC 60404-8, JIS C 2552	Permeability giga, iṣiṣẹpọ kekere, awọn ohun-ini oofa deede
Plunger / Armature	Irin tutu-yiyi SPCC tabi irin lulú (Fe-99%)	JIS G 3141, MPIF Standard 35	HRC 45-55, dada pari Ra 0.8, ipata resistance
Awọn olubasọrọ	Silver-nickel (AgNi 90/10) tabi AgCdO	ASTM B152, IEC 60368	Iṣeṣe> 90% IACS, aaki ogbara resistance, egboogi-alurinmorin
Olubasọrọ Springs	Ejò Beryllium (CuBe2 C17200) tabi irin alagbara, irin 301	ASTM B196	Igbesi aye rirẹ> awọn iyipo 100,000, titẹ deede, resistance ipata
Ibugbe	PA66 GF30 tabi PBT GF30, ina retardant	IEC 60664-1, UL 94 V-0	Atọka ipasẹ> 600V, resistance ooru 160°C, agbara ipa>7 kJ/m²
Awọn ibudo	Idẹ C36000 tabi Ejò C11000 pẹlu Tinah plating	ASTM B16 / B187	Iwọn lọwọlọwọ 1.0-1.5 A/mm², iyipo duro 1.5-2.5Nm
DIN Rail Agekuru	Irin orisun omi 65Mn tabi irin alagbara, irin 304	GB/T 1222, ISO 3506	Dimole agbara 50-100N, 10,000 ọmọ rirẹ, ipata resistance

Ibamu Awọn ajohunše & Awọn Ilana Idanwo

International Standards Framework

Standard	Ààlà	Awọn ibeere to wulo
IEC 60947-2	Low-foliteji switchgear - Circuit-breakers	Ibamu ẹya ẹrọ, isọdọkan pẹlu fifọ, idinaduro kukuru-kukuru
IEC 60947-4-1	Contactors ati motor awọn ibẹrẹ	Išẹ oniṣẹ ẹrọ, awọn ibeere Circuit iṣakoso
IEC 60947-5-1	Iṣakoso Circuit awọn ẹrọ ati yi pada eroja	Awọn iwontun-wonsi olubasọrọ oluranlọwọ, ifarada itanna, awọn isamisi ebute
RoHS/DEDE	Ibamu ayika	Awọn ihamọ nkan elewu, awọn ikede ohun elo

Awọn idanwo Iru dandan (IEC 60947-2 / IEC 60947-5-1)

Idanwo Ẹka	Idanwo pato	Awọn Ilana gbigba
Itanna Ifarada	Awọn iṣẹ ṣiṣe 10,000 ni ti o ni iwọn lọwọlọwọ (AC-15/DC-13)	Wọwọ olubasọrọ <50%, ko si alurinmorin, iṣẹ ṣiṣe deede
Ifarada ẹrọ	100.000 ko si-fifuye mosi	<5% fiseete paramita, ko si ikuna ẹrọ
Dielectric Properties	2kV AC / 1min (awọn iyika iṣakoso), 4kV igbiyanju	Ko si didenukole, ko si flashover
Iwọn otutu Dide	Tẹsiwaju isẹ ti ni won won foliteji / lọwọlọwọ	Coil ≤85K (Kilasi F), awọn ebute ≤80K
Mọnamọna & Gbigbọn	IEC 60068-2-27 (mọnamọna), IEC 60068-2-6 (gbigbọn)	Ko si iṣẹ eke, ko si ibajẹ, iṣẹ ṣiṣe lẹhin idanwo
Ayika	Ooru ọririn (IEC 60068-2-30), otutu, ooru gbigbẹ	Iṣẹ ṣiṣe lẹhin ti kondisona, ko si ipata
EMC	Ajesara to waiye/radiated kikọlu	Ko si iṣẹ iparun, EN 60947-2 Annex F

Iṣakoso Didara Factory & Awọn ajohunše Ayewo

Ohun elo ti nwọle QC (IQC)

Ohun elo	Awọn nkan Ayẹwo	Iṣapẹẹrẹ Eto	Ohun elo
Enameled waya	Opin, foliteji didenukole, elongation, solderability	AQL 0.65	Micrometer, dielectric tester, ẹrọ fifẹ
irin oofa	Permeability, mojuto pipadanu, idabobo ti a bo	Fun ipele	Epstein fireemu, nikan dì tester
Awọn olubasọrọ fadaka	Mimo, lile, iwuwo, ifarada onisẹpo	Fun ipele	Spectrometer, líle ndan, CMM
Ṣiṣu granules	Akoonu gilasi, iki, ọrinrin, flammability	Fun ipele	Atọka ṣiṣan yo, DSC, ohun elo UL 94
Orisun omi irin	Agbara fifẹ, aarẹ resistance, lara	Fun ipele	Ẹrọ fifẹ, idanwo rirẹ

Iṣakoso Didara Ninu Ilana (IPQC)

Ibudo	Iṣakoso paramita	Igbohunsafẹfẹ	Ọna
Yiyi okun	Yipada kika, ẹdọfu, resistance, idabobo	Gbogbo kuro	Yiyi adaṣe adaṣe pẹlu esi, ohmmeter
Plunger ẹrọ	Ifarada onisẹpo, ipari dada, lile	Gbogbo 100 sipo	CMM, profilometer, oluyẹwo lile
Apejọ olubasọrọ	Titete, titẹ, resistance, brazing didara	Gbogbo 100 sipo	Iwọn agbara, micro-ohmmeter, XRF
Iṣatunṣe ibugbe	Iwọn otutu, titẹ, išedede onisẹpo	Gbogbo iyipo	SCADA monitoring, SPC shatti
Iha-ipejọ	Foliteji ṣiṣẹ, ọpọlọ, akoko esi	Gbogbo kuro	Ibujoko idanwo adaṣe, gedu data

Iṣakoso Didara Ipari (FQC) & QC ti njade (OQC)

Nkan Idanwo	Standard	Apeere Iwon
Iwọn foliteji ti nṣiṣẹ	0.85-1.1×Un (gbigba),>0.2×Un (idasilẹ fun UVR)	100%
Akoko Idahun (irin-ajo shunt)	<50ms ni iwọn foliteji	100%
Olubasọrọ resistance	<50mΩ (oluranlọwọ), <100mΩ (itaniji)	100%
Dielectric withstand foliteji	2kV AC / 1 iṣẹju	100%
Idaabobo idabobo	> 100MΩ @ 500V DC	100%
Isẹ ẹrọ	10 iyika, dan, ko si duro	100%
Ibamu Snap-fit	Ibarasun pẹlu pataki MCCB fireemu	100%
Visual & onisẹpo ayewo	Siṣamisi permanence, modularity	100%
Electrical ìfaradà iṣapẹẹrẹ	Awọn iṣẹ 1,000 ni fifuye ti o ni iwọn	AQL 1.0
Iṣootọ iṣakojọpọ	Idanwo ju silẹ, gbigbọn (ISTA 3A)	Fun Pupo

Awọn amayederun iṣelọpọ & Agbara iṣelọpọ

To ti ni ilọsiwaju Production Equipment

Ẹka ẹrọ	Machine Specification	Išẹ	Agbara
Okun Yiyi	Awọn ẹrọ iyipo CNC (Nittoku / Marsilli) pẹlu iṣakoso ẹdọfu	Isejade okun konge	20.000 coils / ọjọ
Stamping & Ṣiṣe	60-ton onitẹsiwaju kú tẹ (Bruderer)	Kan si stamping, orisun omi lara	30.000 irinše / ọjọ
Abẹrẹ Molding	80-pupọ thermoplastic tẹ (Arburg)	Ibugbe, awọn apade, awọn agekuru iṣinipopada DIN	10.000 ibugbe / ọjọ
Apejọ	Apejọ iṣẹ	Apejọ-ipin, isọdiwọn, idanwo	Awọn ẹya ẹrọ 5,000 fun ọjọ kan
Ohun elo Idanwo	Aládàáṣiṣẹ ibujoko igbeyewo ẹya ẹrọ	Awọn abuda iṣẹ, akoko, ifarada	1,000 sipo / wakati
	Mechanical ìfaradà tester	100.000 ọmọ ijerisi	200 sipo igbakana
	EMC igbeyewo iyẹwu	Idanwo ajesara / itujade	100 sipo / ọjọ

Agbara iṣelọpọ & Awọn akoko asiwaju

Ẹka ọja	Oṣooṣu Agbara	Standard asiwaju Time	Agbara Bere fun kiakia
Awọn irin ajo Shunt (gbogbo awọn foliteji)	300.000 sipo	4-5 ọsẹ	3 ọjọ
Undervoltage Tu	200.000 sipo	4-5 ọsẹ	3 ọjọ
Awọn olubasọrọ Iranlọwọ	500.000 sipo	4-5 ọsẹ	3 ọjọ
Awọn oniṣẹ mọto	50.000 sipo	4-5 ọsẹ	5 ọjọ
Awọn modulu Ibaraẹnisọrọ	30.000 sipo	4-5 ọsẹ	5 ọjọ

Engineering & Technical Team Be

Ẹka	Eniyan	Amoye	Awọn ojuse
R&D Imọ-ẹrọ	5 awọn ẹlẹrọ	Apẹrẹ itanna, fisiksi olubasọrọ, awọn ọna ifibọ, ibaraẹnisọrọ alailowaya	Idagbasoke ẹya tuntun, awọn ẹya ọlọgbọn, portfolio itọsi (awọn itọsi 30+)
Imọ-ẹrọ ilana	15 Enginners	Automation yiyipo okun, stamping konge, ṣiṣu igbáti, iṣelọpọ titẹ si apakan	Imudara iṣelọpọ, ilọsiwaju ikore (> 99%), idinku idiyele
Idanwo & Afọwọsi	12 ẹlẹrọ	IEC 60947 ibamu, idanwo ifarada, EMC, kikopa ayika	Iru iṣakojọpọ idanwo, itupalẹ ikuna, iṣakoso iwe-ẹri
Ohun elo Engineering	10 ẹlẹrọ	MCCB Integration, Iṣakoso awọn ọna šiše, BMS/SCADA ni wiwo	Atilẹyin imọ-ẹrọ alabara, apẹrẹ eto, fifisilẹ
Didara ìdánilójú	25 Onimọn ẹrọ	ISO 9001, IATF 16949, iṣakoso ilana iṣiro, metrology	Ayẹwo olupese, iṣayẹwo ilana, iṣe atunṣe, isọdiwọn

Kini idi ti iṣelọpọ ẹya ẹrọ MCCB wa Duro Yato si

Ile-iṣẹ iṣelọpọ wa ṣe aṣoju40 ọdun ti pataki ni awọn ẹya ẹrọ iyipada kekere foliteji, jiṣẹ awọn ẹya ẹrọ MCCB ti o kọja awọn iṣedede agbaye nipasẹ:

Fifọ-abinibi design: Awọn ẹya ẹrọ ti a ṣe ni pato fun isọpọ ailopin pẹlu awọn iru ẹrọ MCCB pataki (Schneider NSX, ABB Tmax, Eaton NZM, Chint NXM), aridaju fifi sori ẹrọ laisi ọpa ati iṣẹ ti o gbẹkẹle.

Smart ẹya ara ẹrọ ĭdàsĭlẹ: Awọn olubasọrọ oluranlọwọ alailowaya alailowaya ati awọn sensọ ibojuwo agbara ti o yi awọn fifọ aṣa pada si awọn ẹrọ smati ti o ni agbara IoT laisi rirọpo fifọ.

Iṣọkan inaro:Yiyi okun inu ile pẹlu impregnation igbale, isunmọ olubasọrọ pipe, ati imudanu thermoplastic ni idaniloju iṣakoso didara pipe ati isọdi iyara

Igbeyewo amayederun: $2M+ ṣe idoko-owo ni idanwo adaṣe pẹlu ijẹrisi ifarada ẹrọ 100,000-cycle, idanwo ajesara EMC, ati idanwo ibamu MCCB

Iyara isọdiFoliteji iṣelọpọ iṣelọpọ irọrun, iṣeto olubasọrọ, ati isọdi ilana ilana ibaraẹnisọrọ pẹlu awọn akoko itọsọna 2-ọsẹ

Digital ẹrọ: Iṣe 4.0 ile-iṣẹ pẹlu itọpa kikun, awọn atupale didara asọtẹlẹ, ati isọdi adaṣe adaṣe ni idaniloju ± 3% aitasera paramita

Fun awọn alaye imọ-ẹrọ, ijẹrisi ibaramu MCCB, iṣọpọ ile ọlọgbọn, tabi iṣeto iṣayẹwo ile-iṣẹ, ẹgbẹ imọ-ẹrọ wa pese ijumọsọrọ taara lati rii daju aabo itanna rẹ ati awọn eto iṣakoso pade awọn ibeere iṣẹ mejeeji ati awọn ibi igbẹkẹle igba pipẹ.

View as

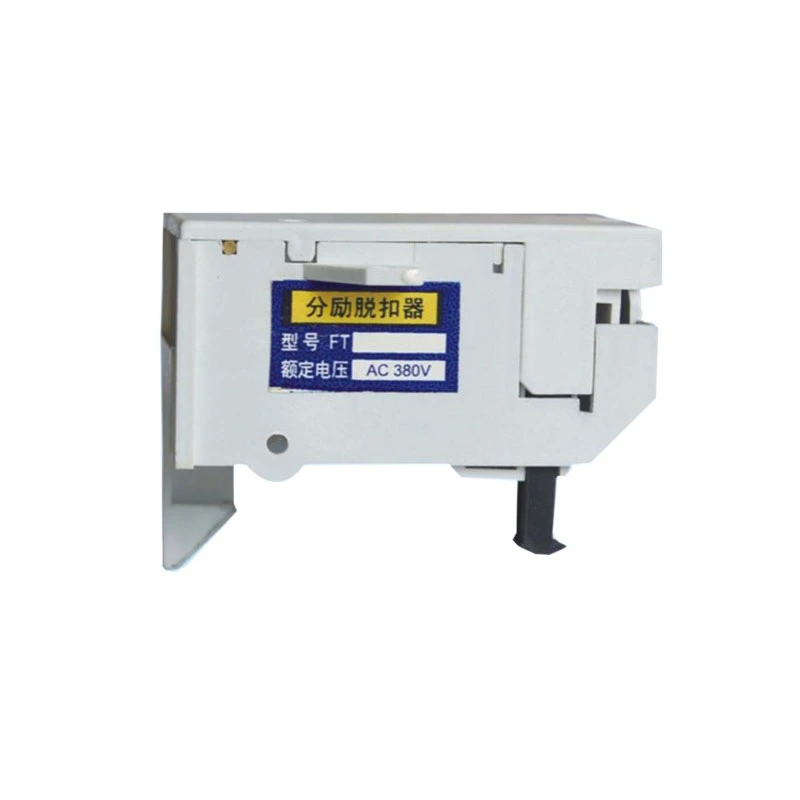

MCCB Shunt Tu

Ṣe iwari CDADA MCCB Shunt Tu fun isakoṣo latọna jijin ti awọn iṣẹ fifọ Circuit rẹ. Wa ni 220V AC/DC, o jẹ pipe fun awọn ohun elo to nilo gige asopọ lẹsẹkẹsẹ. Rọrun lati fi sori ẹrọ, pẹlu onirin ti a ti sopọ tẹlẹ lati ile-iṣẹ — kan ṣafikun ifihan agbara iṣakoso rẹ. Apẹrẹ fun awọn ọna ṣiṣe aabo ile-iṣẹ ati iṣowo.

Wo Die e sii >> Fi ibeere ranṣẹ >>

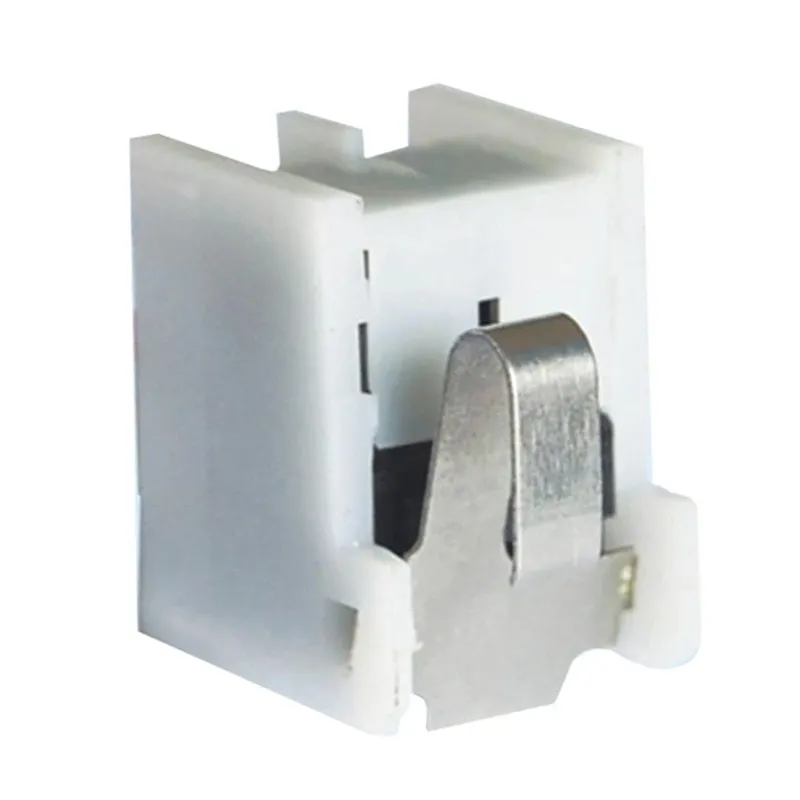

Olubasọrọ Iranlọwọ MCCB

CDADA ni olupese ati olupese ti Olubasọrọ Oluranlọwọ MCCB, ọja yi le jẹ ojutu rẹ fun ibojuwo ati iṣakoso awọn ipinlẹ fifọ Circuit. Wa ni awọn atunto bii 2NO/2NC, o dara julọ fun ifihan ifihan ipo ṣiṣi tabi sunmọ. Ti firanṣẹ tẹlẹ fun fifi sori ẹrọ rọrun, pipe fun awọn eto iṣakoso ile-iṣẹ. Gbẹkẹle CDADA fun igbẹkẹle ati iṣẹ ṣiṣe.

Wo Die e sii >> Fi ibeere ranṣẹ >>

CDADA jẹ Awọn ẹya ẹrọ MCCB olupese ati olupese ni Ilu China. Ile-iṣẹ wa n ṣe iranṣẹ awọn ile-iṣẹ Oniruuru gẹgẹbi awọn eto agbara, adaṣe ile, ati iṣelọpọ ile-iṣẹ, ti nfunni ni irọrun OEM / ODM awọn solusan.
