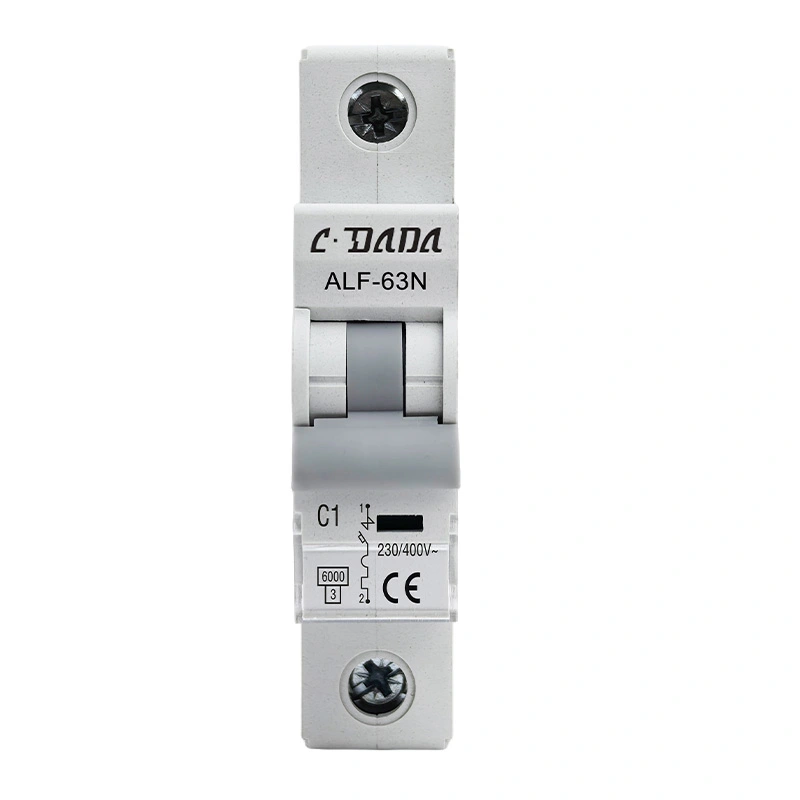

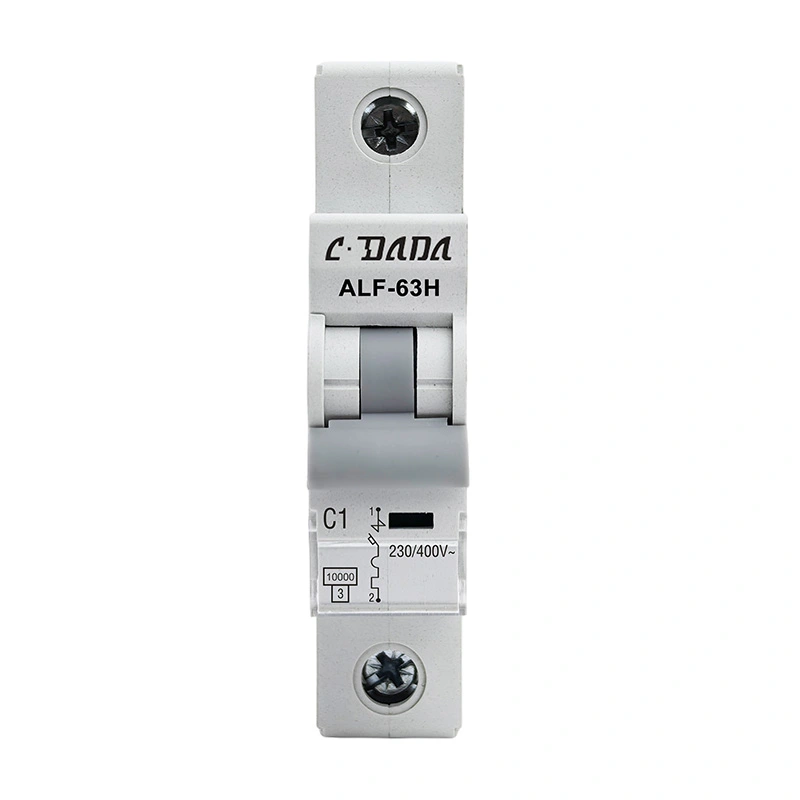

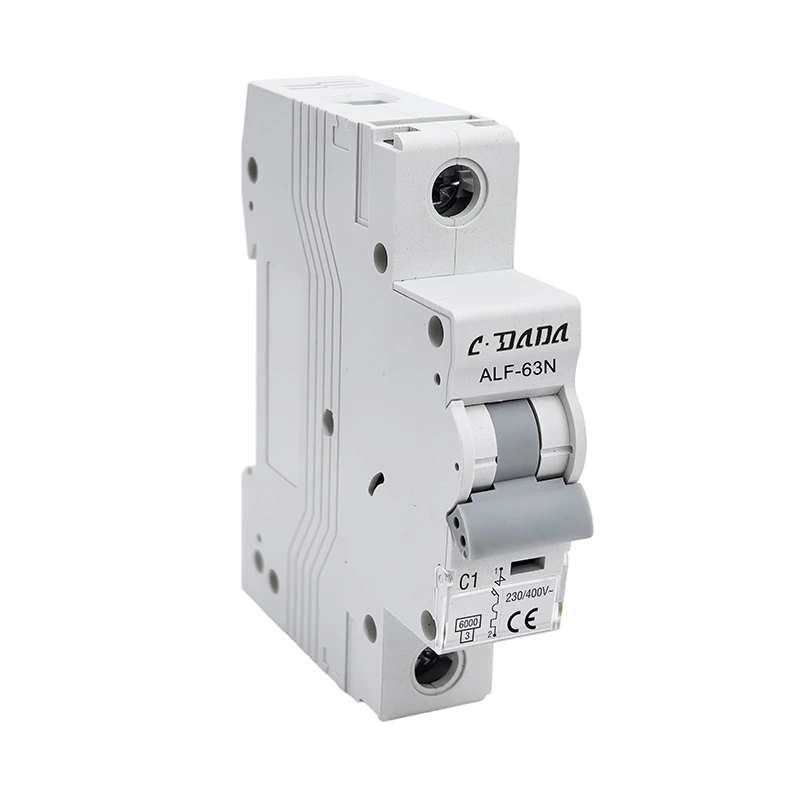

6KA 10kA Miniature Circuit fifọ

ALF-63N / H jara giga fifọ 6KA 10kA Miniature Circuit Breaker (MCB), ni ibamu si boṣewa IEC60898, MCB ni ihuwasi ti iṣẹ igbẹkẹle, iṣẹ aabo deede, akoko idasilẹ kukuru, ati agbara isinmi giga, iwọn kekere daradara. O ti wa ni o gbajumo ni lilo ni ati apọju ti contactors, switchgear, ati ina ohun elo.

Kan si CDADA ki o yan wa bi olupese rẹ, a le pese awọn iṣẹ OEM/ODM.

Ti abuda

Imọ Specification

ALF-63N / H Series 6KA 10kA Miniature Circuit fifọ
Standard	EN/IEC60898-1
Agbara fifọ (kA)	6,10
Idaabobo	Lodi si apọju ati kukuru Circuit
Ti won won lọwọlọwọ(A) Ninu	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Iwọn foliteji (V)	1PAC 230/400,240/415
	1P + N, 2P, 3P, 3P + N, 4PAC400/415
Imudani ti o ni idinaduro foliteji Uimp(kV)	4
Foliteji idabobo Ui(V) ti won won	500
Agbara diwọn cass	3
Iwọn otutu ibaramu (℃)	-25~+40,Max.95% ọriniinitutu
Gbona ọna iye to	1.13xln Ko si tripping laarin wakati kan
	1.45xIn Tripping laarin wakati kan
Ṣiṣẹ iṣẹ oofa	B:(3-5)xNinu,C:(5-10)xNinu,D:(10-20)xIn
Nọmba ti ọpá	1P,1P+N,2P,3P,3P+N ati 4P
Iru irin ajo	Gbona / oofa Tu
Agbara ebute	16mm² rọ tabi 25mm² kosemi to 25A iwontun-wonsi
	25mm² rọ tabi 35mm² rigidi lati awọn idiyele 32A si 63A
Idaabobo ìyí	IP20
Fifi sori ẹrọ	Iṣagbesori lori 35mm DIN iṣinipopada
Ìbú	17,8mm fun ọpá

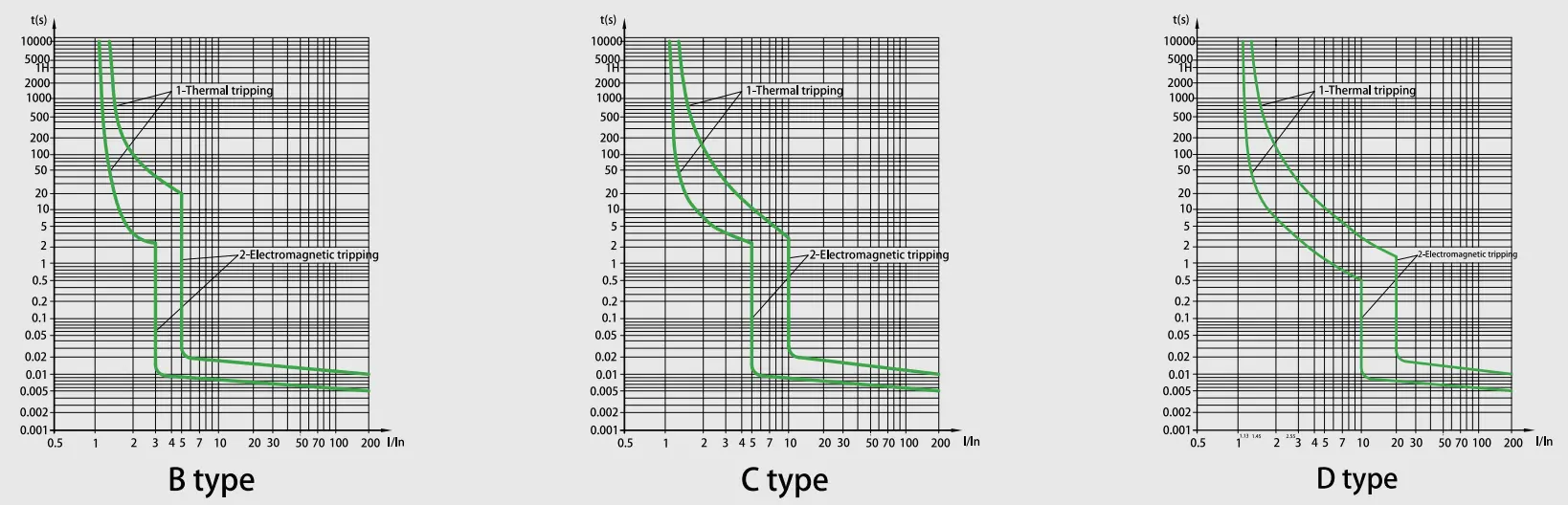

Circuit fifọ Tu ti iwa

RARA.	Itusilẹ ti o wa lọwọlọwọ (A)	Ipo ibẹrẹ	Idanwo lọwọlọwọ	Akoko pato	Abajade lati gba	Awọn akiyesi
1	1-63	ipo tutu	1.13 Ninu	t≤1h	Ti kii-ajo
2	1-63	lori idanwo iṣaaju	1.45ln	t <1h	irin ajo	Ṣiṣeto lọwọlọwọ si iye pàtó kan ni imurasilẹ ni 5s
3	Ninu ≤32	ipo tutu	2.55Inu	1s	irin ajo
	Ninu> 32
4	1-63	ipo tutu	3Inu	t≤0.1s	Ti kii-ajo	B iru
			5Inu	t<0.1s	irin ajo	B iru
			5Ninu 10ln	t≤0.1s	Ti kii-ajo	C iru
			10 Ninu	t<0.1s	irin ajo	C iru
			20ln	t≤0.1s	Ti kii-ajo	D iru
				t<0.1s	irin ajo	D iru

Ifarada(Awọn isẹ)

Ẹka	Awọn iyipo isẹ	Igbohunsafẹfẹ isẹ	Ti won won lọwọlọwọ
Itanna ifarada	4000	240/h	1-32
		120/h	40-63
Darí ìfaradà	10000	240/h	1-63

Awọn ẹya ara ẹrọ

★ Ultra-High Kukuru-Circuit Kikan Agbara

Imọ-ẹrọ iṣakoso arc ti ilọsiwaju ṣaṣeyọri agbara idalọwọduro giga ti akawe si awọn iṣedede ile-iṣẹ, aridaju aabo igbẹkẹle fun awọn eto itanna ti ile-iṣẹ labẹ awọn ipo aṣiṣe to gaju.

★ Asopọmọra Asopọmọra Meji-Mode

Apẹrẹ ebute arabara ti irẹpọ ṣe atilẹyin mejeeji ibi iduro busbar kosemi ati didi okun ti o rọ, mimuuṣiṣẹpọ-ọfẹ ọpa si awọn oju iṣẹlẹ fifi sori ẹrọ oriṣiriṣi lakoko ti o dinku akoko wiwọ nipasẹ 40%.

★ Agbara-Ipamọ Mechanism fun Longevity

Eto iṣẹ ti o ṣe iranlọwọ ni orisun omi pẹlu ifarada awọn ọna ṣiṣe ẹrọ 10,000, ti o ni ifihan imọ-ẹrọ isanpada

★ To ti ni ilọsiwaju Apapo apade

pẹlu olokiki-retarcant, sooro igbona, ati awọn ohun-ini imudaniloju ti a ṣepọ awọn iyẹwu arc-quenching fun awọn iṣẹlẹ aṣiṣe ti o wa ninu.

★ Topology Idiwọn lọwọlọwọ

Ti oye jẹ ki-nipasẹ idinku agbara dinku awọn sisanwo aṣiṣe ti o ga julọ nipasẹ 65-80%, ti n mu ki ẹrọ imudara ẹrọ isale pẹlu agbara idinku iye owo eto lapapọ 30%.

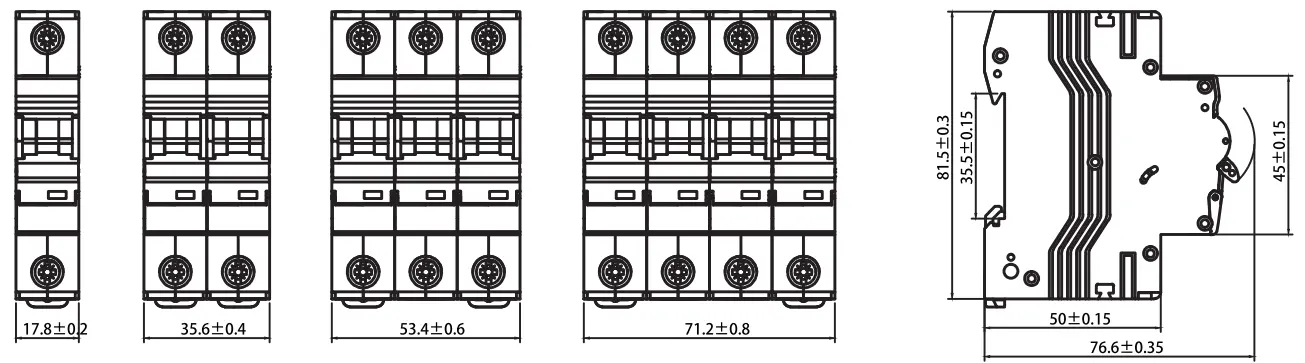

Awọn iwọn ila

Awọn oju iṣẹlẹ elo

★ Ibugbe: Awọn ẹya onibara ati awọn igbimọ pinpin fun aabo ile.

★ Industrial: Idaabobo ti contactors, switchgear, ati eru ina ohun elo.

★ Iṣowo: Awọn ile-iṣẹ ọfiisi ati awọn ibi-itaja riraja ti o nilo igbẹkẹle fifọ-giga.

Iṣakoso Didara & Igbeyewo Standard

★ Gbogbo CDADA MCB ni idanwo lile lati rii daju ibamu pẹlu IEC60898-1:

★ Igbeyewo Irin-ajo Gbona: Ti ṣayẹwo ni 1.13In (ti kii ṣe irin-ajo) ati 1.45In (irin-ajo laarin wakati 1).

★ Idanwo Irin-ajo Oofa: Idanwo itusilẹ pipe fun awọn abuda B, C, ati D.

★ Ifarada Itanna: Idanwo fun awọn akoko iṣiṣẹ 4,000.

★ Ifarada Imọ-ẹrọ: Ti ṣe idaniloju fun awọn akoko 10,000.

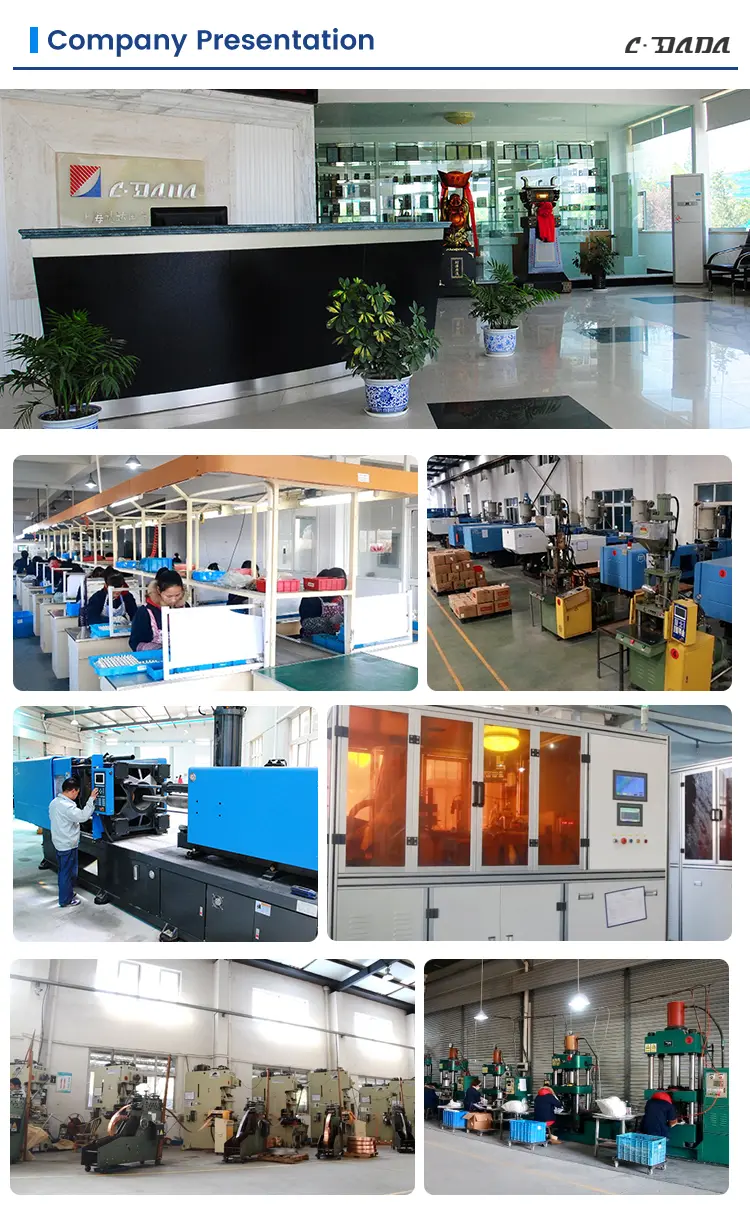

Agbara Factory & Atilẹyin

Shanghai DADA Electric Co., Ltd jẹ olupilẹṣẹ oludari pẹlu awọn laini iṣelọpọ ilọsiwaju ati ẹgbẹ imọ-ẹrọ ọjọgbọn kan. A pese:

★ OEM/ODM ti a ṣe adani fun awọn ami iyasọtọ agbaye.

★ Awọn ohun elo idanwo-ti-ti-aworan lati rii daju ifijiṣẹ odo-aiṣedeede.

★ Global Logistics Support: Iṣapeye apoti fun okun ati air ẹru lati rii daju awọn ọja de ni pipe majemu.
