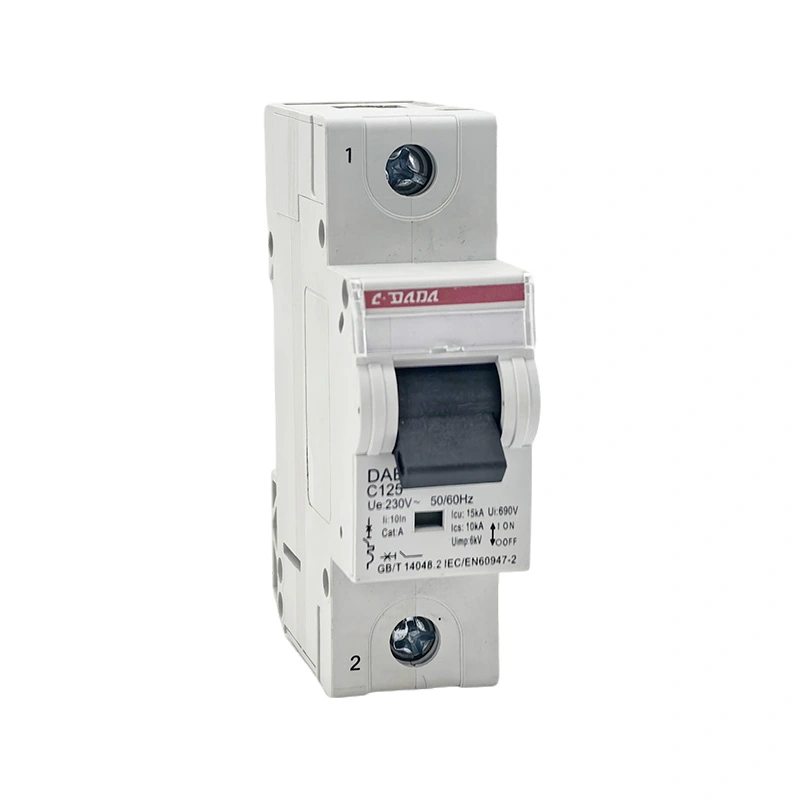

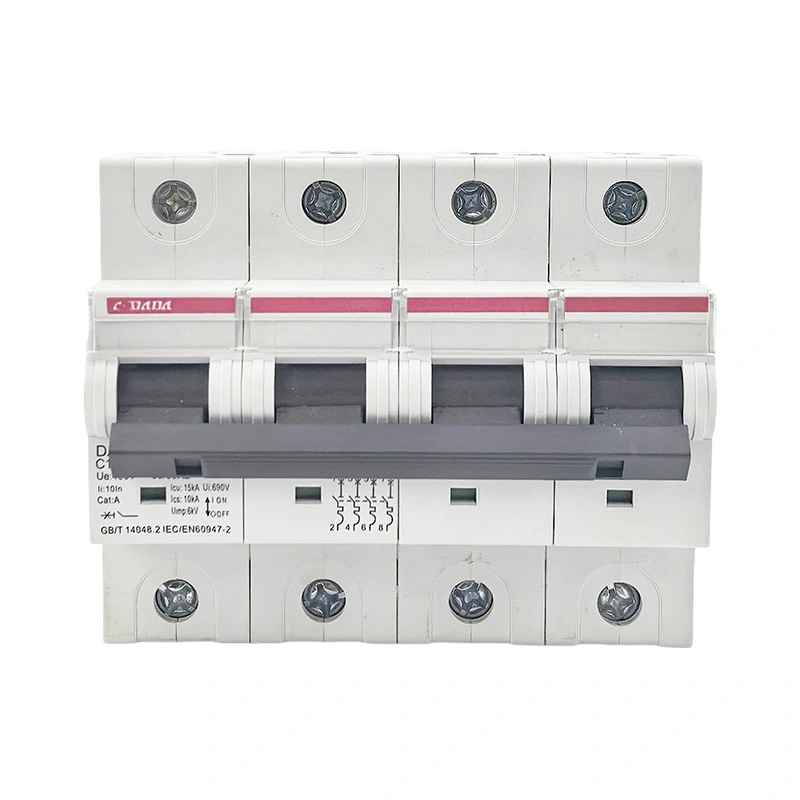

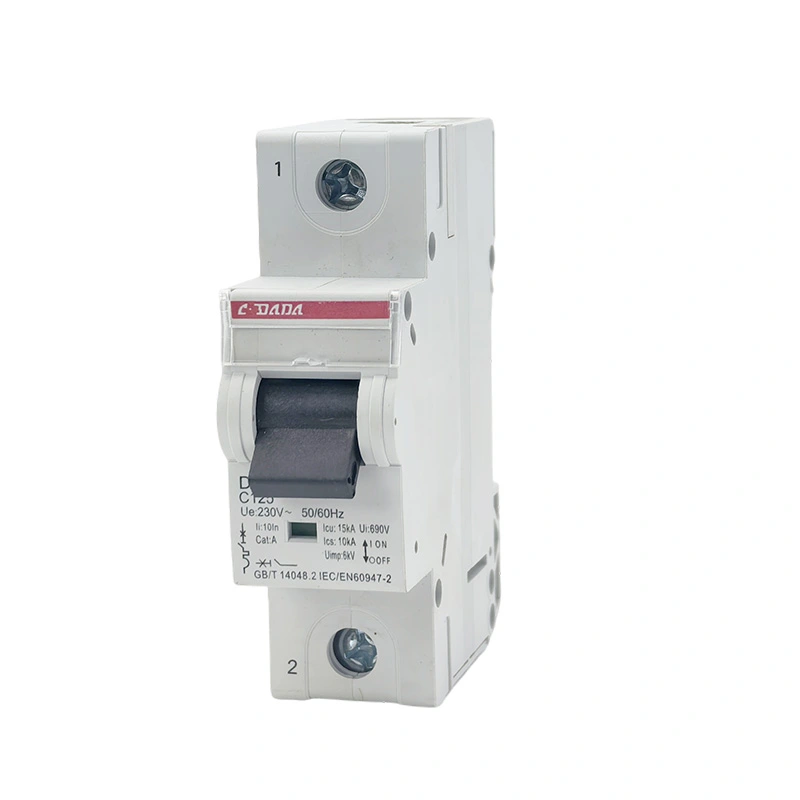

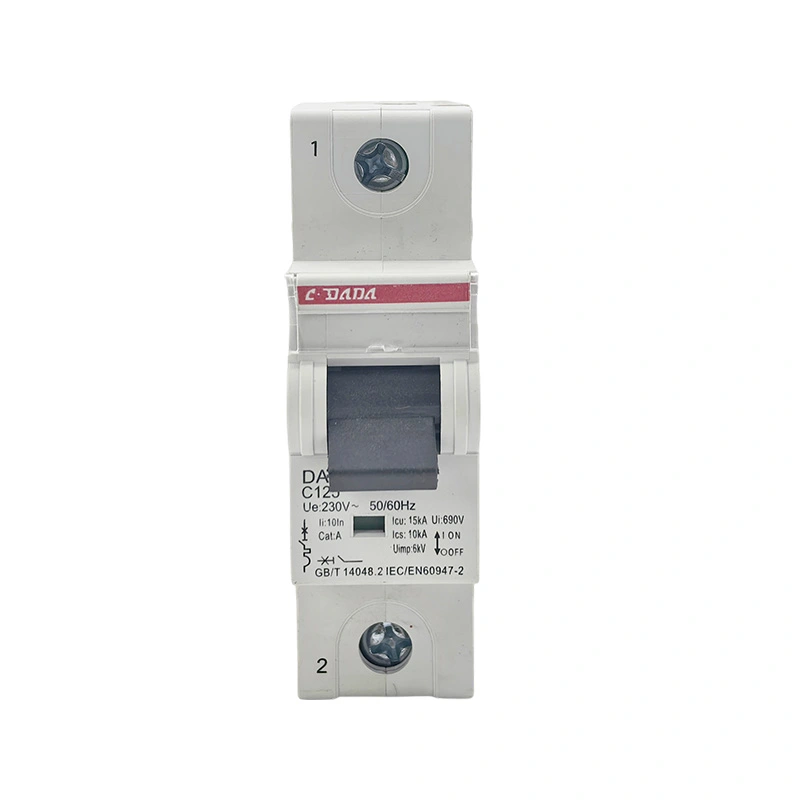

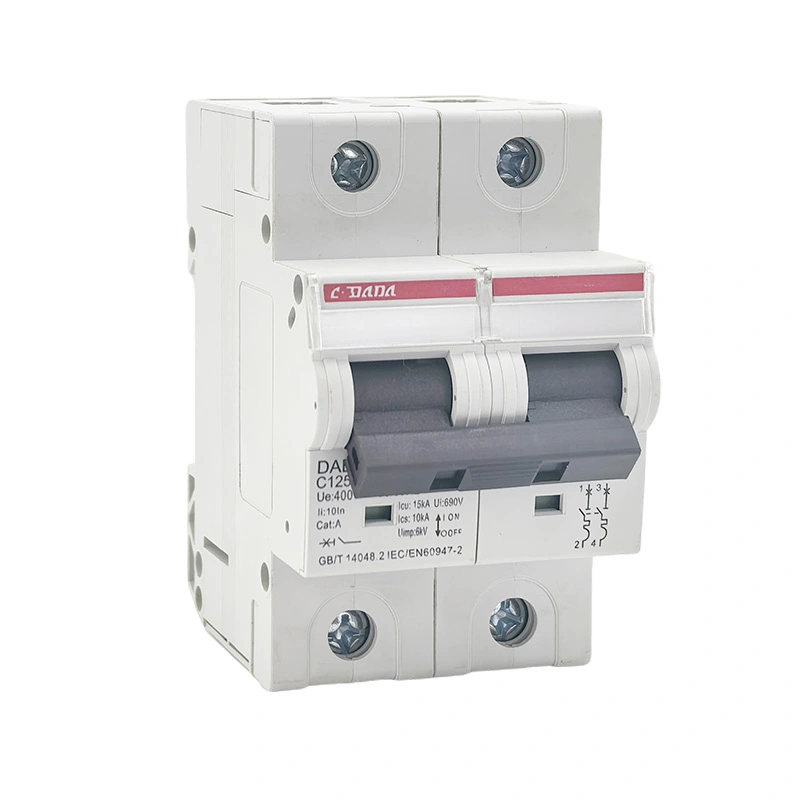

125 15KA Miniature Circuit fifọ
Model:DAB7-125N / DAB7-125H
Gẹgẹbi olupese ti o gbẹkẹle ti 125 15KA Miniature Circuit Breaker, ọja CDADA jẹ iṣẹ-ṣiṣe 125A MCB ti o ga julọ pẹlu agbara fifọ 15kA fun pinpin agbara-agbara. O nlo ikarahun ina-iná PA66 ati apẹrẹ iyẹwu arc meji, rọrun lati gbe sori iṣinipopada DIN ati rọrun lati ṣetọju. O ṣajọpọ eto olubasọrọ fadaka pẹlu agbara-ite ile-iṣẹ, iyọrisi igbesi aye iṣẹ gigun-gigun fun awọn iyika lọwọlọwọ-nla.

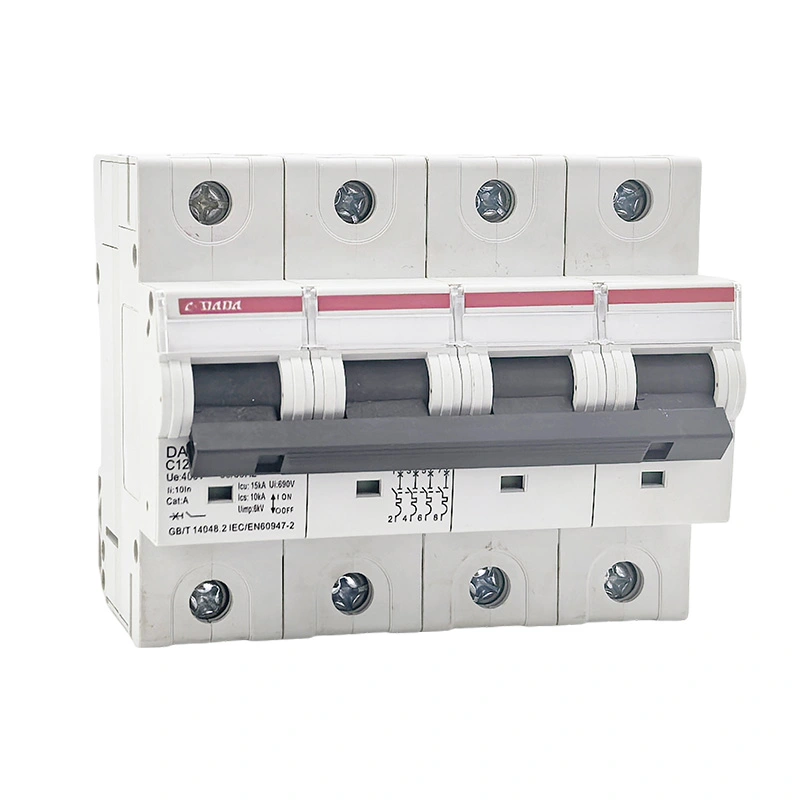

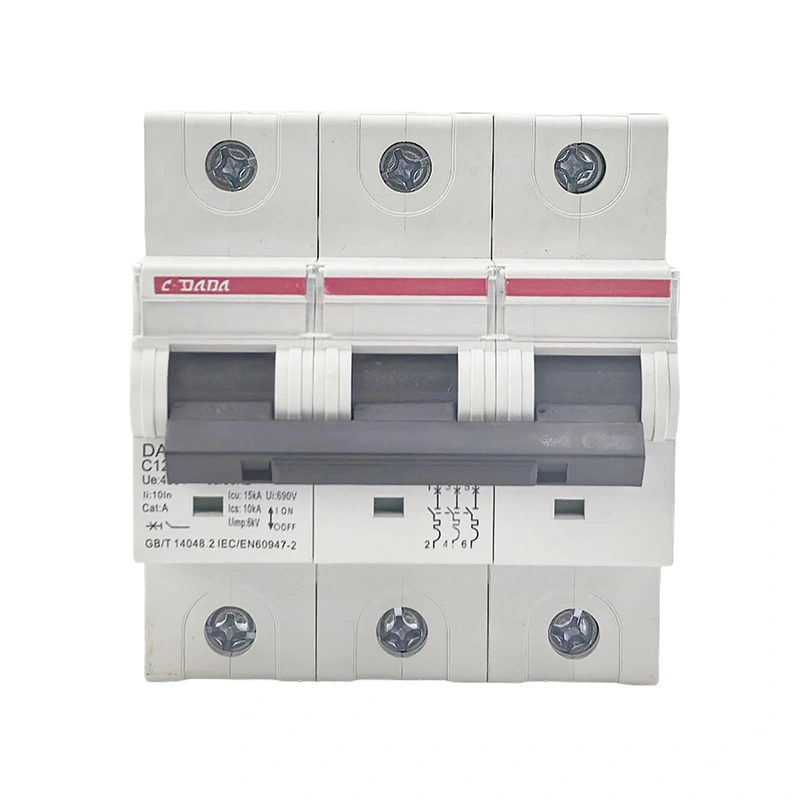

CDADA DAB7-125 125 15KA Miniature Circuit Breaker jẹ eru-ojuse giga-pipa kekere Circuit fifọ ni ominira ni idagbasoke nipasẹ Shanghai DADA Electric. Pẹlu 10kA/15kA olekenka-giga fifọ agbara, 125A ti o tobi ti won won lọwọlọwọ, ati 27mm (1.5M) iwapọ iwọn, o le ropo ibile in irú Circuit breakers fun eru-lọwọlọwọ Idaabobo.
Gbigba iyẹwu arc meji, awọn olubasọrọ fadaka, ati ohun elo aabo ina PA66, o pese ailewu ati apọju iduroṣinṣin, ọna kukuru, ati aabo ipinya fun ile-iṣẹ, iṣowo, ati awọn iyika agbara giga ibugbe.
Awọn iṣẹ ọja
★ Idaabobo apọju
★ Kukuru-Circuit Idaabobo
★ Safe Circuit ipinya
★ Iṣakoso titan/pa afọwọṣe
★ Idurosinsin tobi-lọwọlọwọ gbigbe

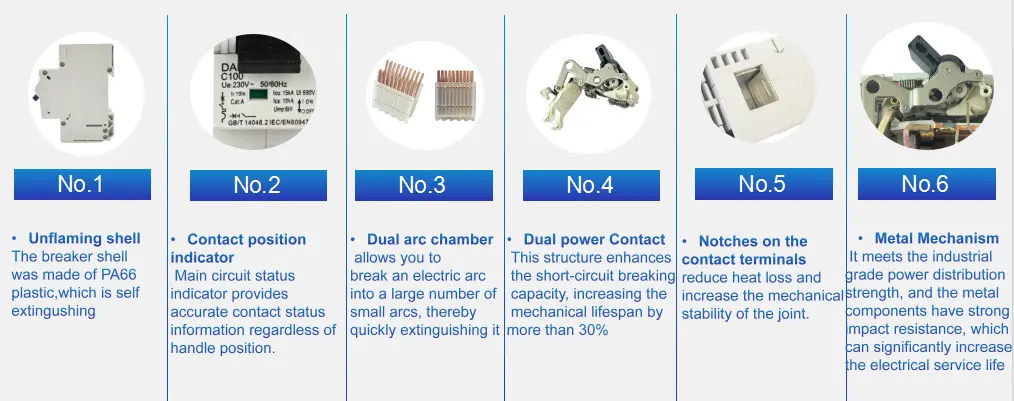

Key ọja anfani
★ 15kA olekenka-giga fifọ agbara, rọpo MCCB fun eru-ojuse lilo
★ iyẹwu arc meji, iyara pipa arc pọ nipasẹ 30%
★ Silvered orisun omi awọn olubasọrọ, kekere ooru pipadanu, gun iṣẹ aye
★ PA66 ina-retardant ikarahun, ara-extinguishing, ga otutu resistance
★ Meji agbara olubasọrọ be, ni okun kukuru-Circuit withstand
★ Notched TTY, ti o ga darí iduroṣinṣin ati onirin firmness
★ Industrial-ite irin siseto, lagbara ikolu resistance
★ 27mm dín iwọn, fi pinpin minisita aaye

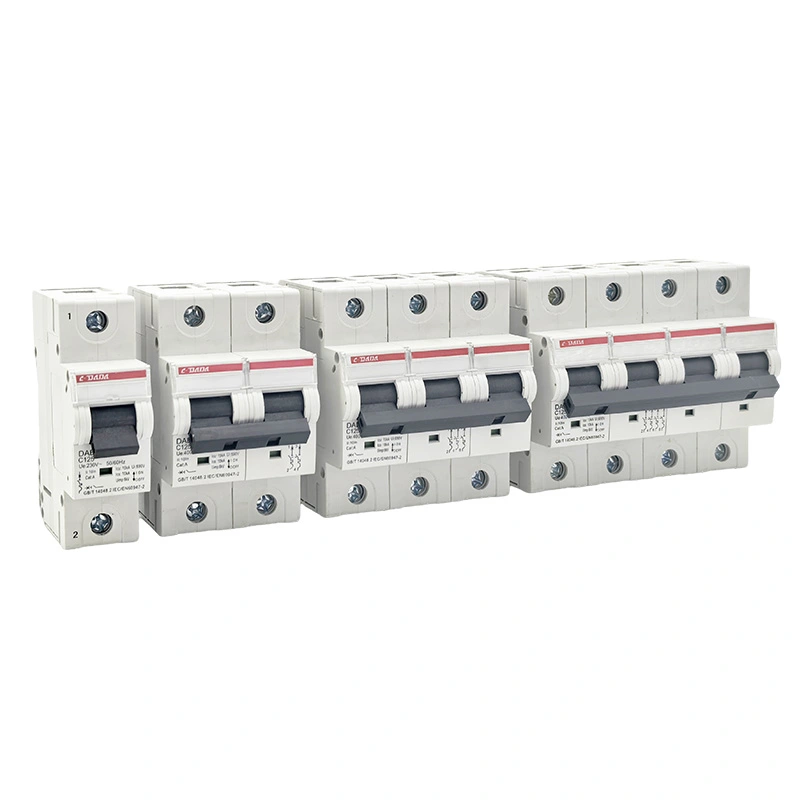

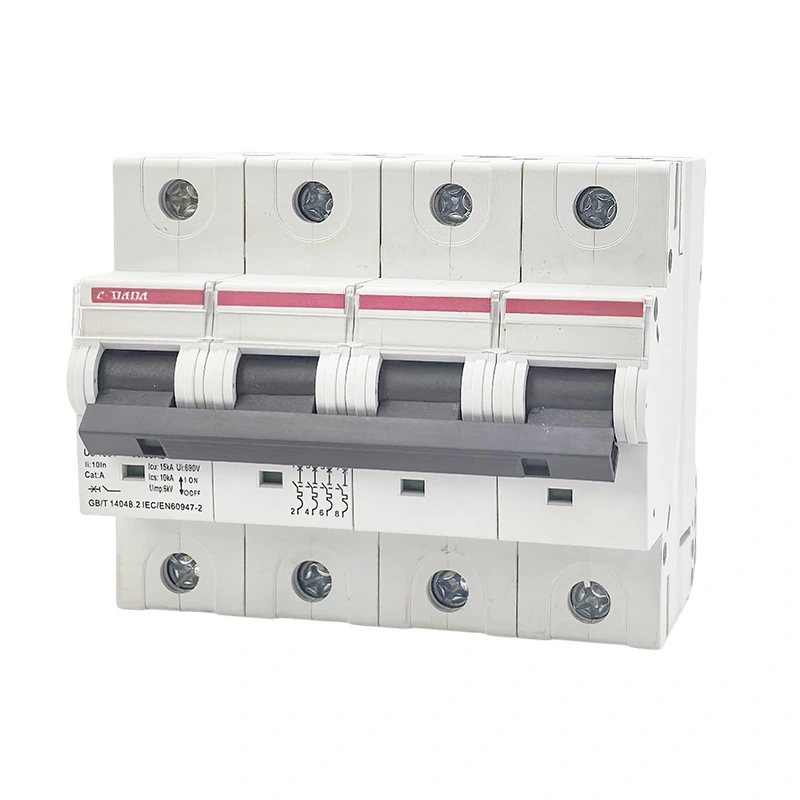

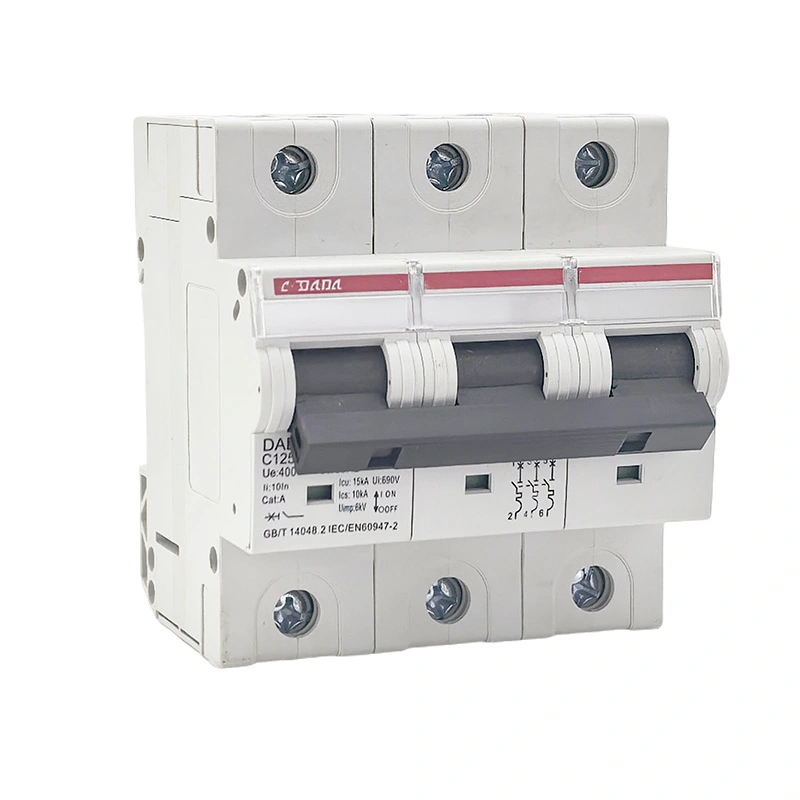

★ 1P/2P/3P/4P pipe awọn ọpá, jakejado lọwọlọwọ ibiti o to 125A
★ Atilẹyin Ejò & aluminiomu waya asopọ
Awọn ohun elo & Lilo Awọn oju iṣẹlẹ
★ CDADA 125 15KA Miniature Circuit Breaker jẹ lilo pupọ ni:
★ Awọn ile-iṣẹ iṣelọpọ, awọn idanileko, ati ipese agbara ohun elo nla
★ Awọn ile iṣowo, awọn ile itaja, awọn ile itura, ati awọn ile ọfiisi
★ Ibugbe Villas, ga-jinde ile, ati akọkọ ti nwọle iyika
★ Awọn apoti ohun ọṣọ pinpin agbara, awọn ipilẹ iru apoti, ati awọn eto pinpin ipari
★ Awọn ifasoke agbara-nla, awọn onijakidijagan, awọn compressors, ati awọn iyika mọto
★ Awọn amayederun, ikole, ati awọn iṣẹ atunṣe
Technical Parameters Table
|
Nkan |
Sipesifikesonu |
|
Awoṣe |
DAB7-125N / DAB7-125H |
|
Orukọ ọja |
MCB 125 15KA |
|
Standard |
IEC60898-1 |
|
Ti won won Lọwọlọwọ |
Titi di 125A |
|
Kikan Agbara |
10kA (N), 15kA (H) |
|
Awọn ọpá |
1P, 2P, 3P, 4P |
|
Ti won won Foliteji |
400/415V AC |
|
Igbohunsafẹfẹ |
50/60Hz |
|
Foliteji idabobo |
500V |
|
Impulse Foliteji |
4kV |
|
Tripping Curve |
B, C, D |
|
Idaabobo ìyí |
IP20 |
|
Igbesi aye ẹrọ |
8.500 igba |
|
Itanna Life |
4,000-15,000 igba |
|
Agbara onirin |
1–35mm² |
|
Iwọn otutu nṣiṣẹ |
-5℃ ~ +40℃ |
|
Fifi sori ẹrọ |
35mm DIN iṣinipopada |
|
Ìbú |
27mm (1.5M) |
Awọn iwọn ila
★ Iwọn: 27mm (1P), 54mm (2P), 81mm (3P), 108mm (4P)
★ Giga: 90mm
★ Ipari: 75.5mm
★ Iṣagbesori: Standard 35mm DIN iṣinipopada
★ Dara fun mora kekere-foliteji pinpin apoti
Standard Igbeyewo Awọn ohun
★ 1.13Ninu idanwo ti kii-tripping (≥1h)
★ 1.45 Ninu idanwo tripping (<1h)
★ 2.55In apọju igbese igbeyewo
★ Oofa instantaneous tripping igbeyewo
★ Igbeyewo dide otutu
★ Dielectric withstand foliteji igbeyewo
★ 10kA/15kA idanwo fifọ kukuru kukuru
★ Mechanical & itanna aye igbeyewo
★ Ga & kekere otutu isẹ igbeyewo
Iṣakoso didara
Ilana Igbeyewo
★ 1. Aise awọn ohun elo ti nwọle ayewo
★ 2. Aifọwọyi stamping & abẹrẹ igbáti
★ 3. konge ijọ & ologbele-pari igbeyewo
★ 4. 100% ni kikun tripping odiwọn
★ 5. withstand foliteji & idabobo igbeyewo
★ 6. Kukuru-Circuit kikan agbara ijerisi
★ 7. Irisi & ayewo iwọn
★ 8. Ti pari ọja ti ogbo & idanwo ikẹhin

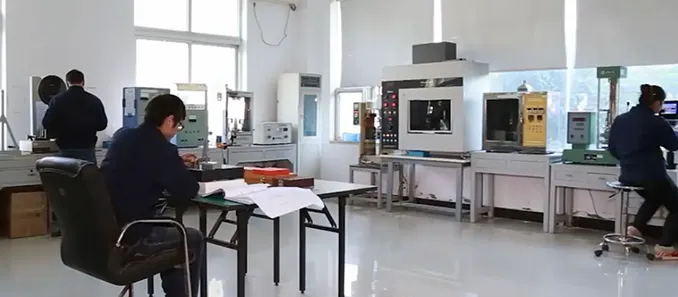

Ohun elo Idanwo
★ Aifọwọyi tripping odiwọn eto
★ Kukuru-Circuit igbeyewo Syeed
★ Iyẹwu idanwo iwọn otutu
★ Koju foliteji tester
★ Ẹrọ idanwo igbesi aye
★ Iyẹwu ayika giga & iwọn otutu kekere

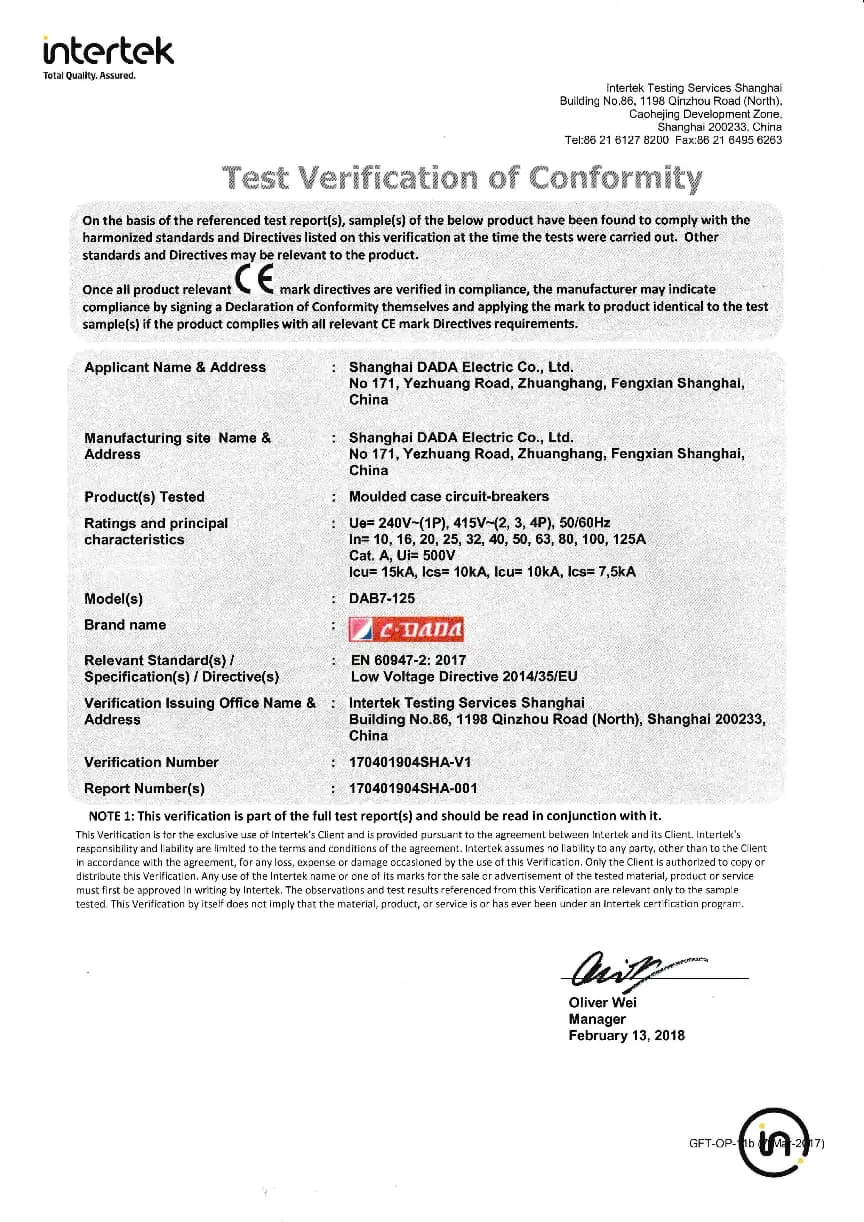

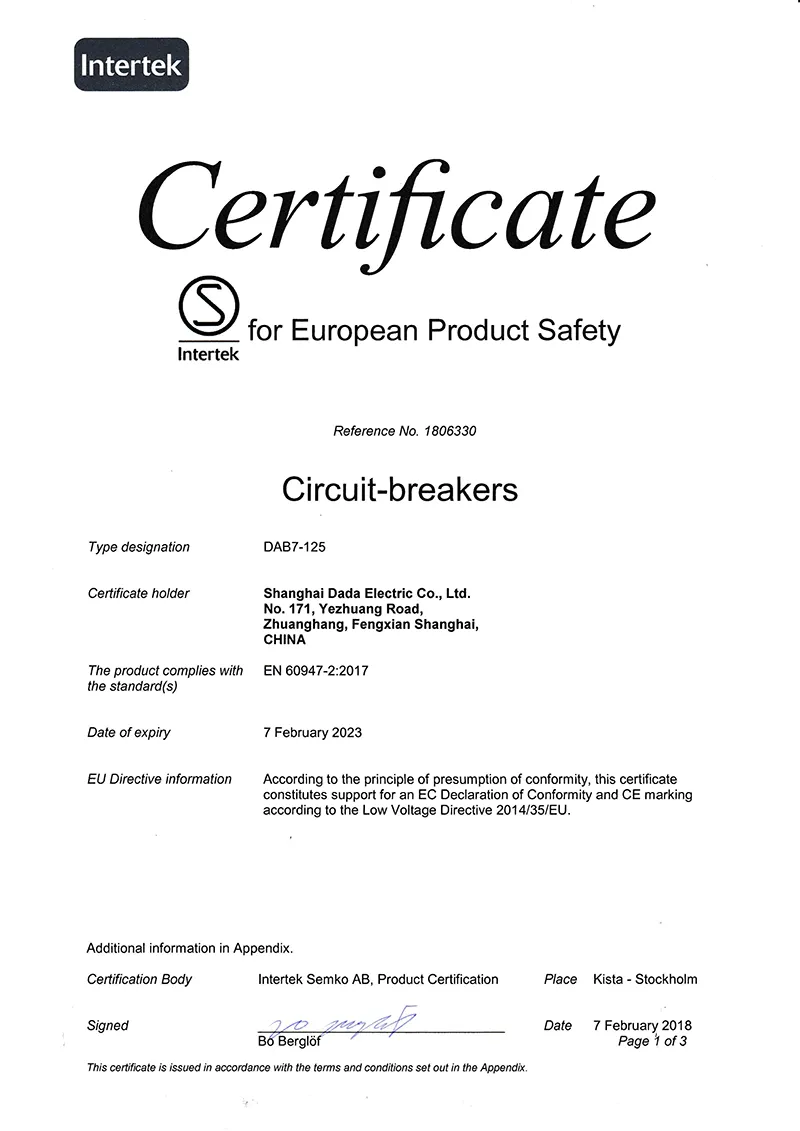

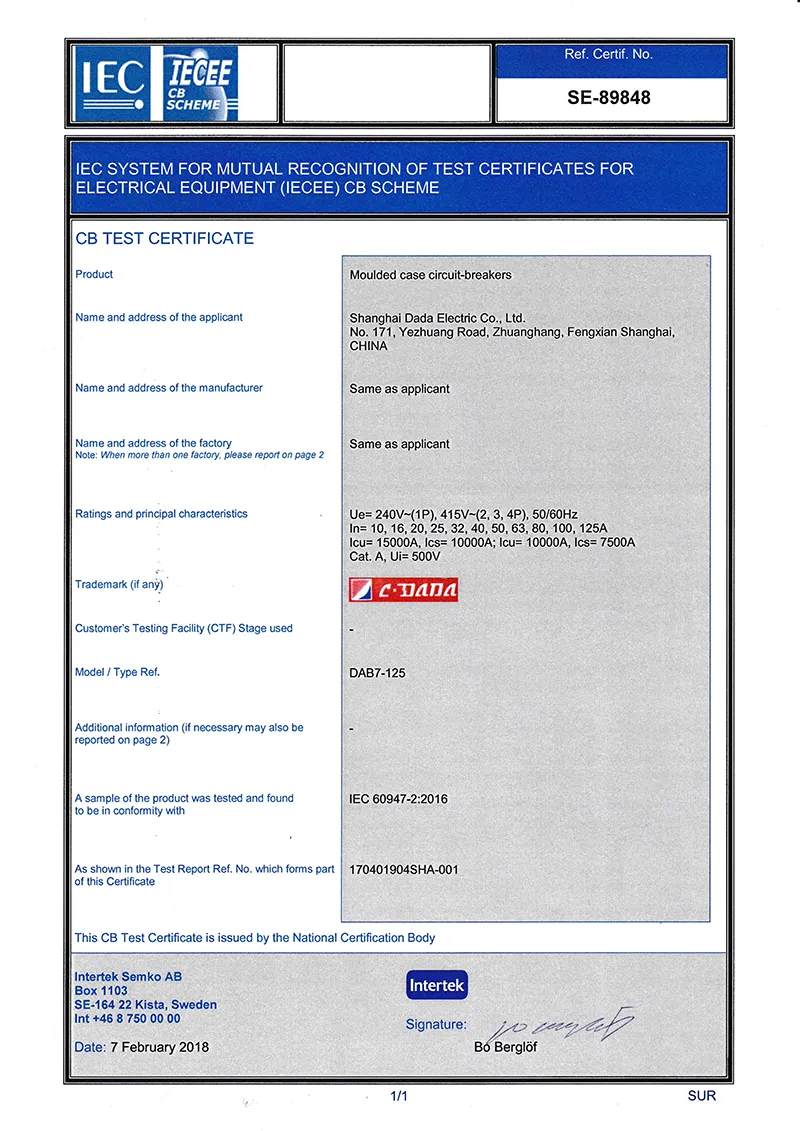

Awọn iwe-ẹri
CE, CB, IEC60898-1, ISO9001, CCC, ROHS
Iṣakojọpọ & Gbigbe
★ Standard okeere paali + shockproof akojọpọ ikan
★ Iṣakojọpọ ẹgbẹ fun ọja kọọkan
★ Ko aami: awoṣe, lọwọlọwọ, ọpá, opoiye, iwe eri
★ Dara fun okun, afẹfẹ, gbigbe ilẹ
★ Atilẹyin OEM apoti & aṣa logo
Awọn ohun elo Onibara & Awọn ọran Aṣeyọri
★ Industrial akọkọ Circuit Idaabobo ni Europe, Guusu Asia, Arin East
★ Ibugbe nla & ile iṣowo ti nwọle awọn iṣẹ agbara
★ OEM ifowosowopo pẹlu agbaye itanna burandi
★ Ipese olopobobo igba pipẹ fun awọn olupin kaakiri agbaye
★ Pinpin agbara fun awọn iṣẹ amayederun ni Afirika & South America
★ Ga-lọwọlọwọ ẹrọ atilẹyin fun factories ati maini

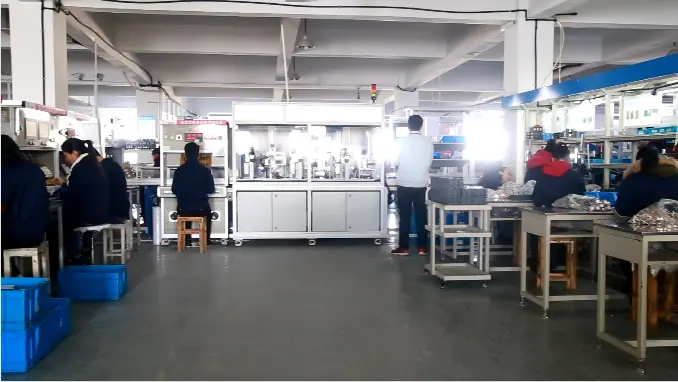

CDADA Factory Agbara
★ 40+ ọdun R&D ọjọgbọn ati iriri iṣelọpọ
★ 50,000 ㎡ ipilẹ iṣelọpọ igbalode
★ Full-laifọwọyi abẹrẹ, stamping, alurinmorin, ijọ ila
★ 90% mojuto irinše produced ni-ile
★ Ọjọgbọn R&D egbe & didara iṣakoso egbe
★ Oṣooṣu agbara lori 5 milionu awọn ege
★ Pipe m idagbasoke & isọdi agbara
Kini idi ti o yan CDADA?
★ Idurosinsin didara, 100% kikun ayewo ṣaaju ki o to sowo
★ Ultra-ga iye owo-išẹ, rọpo MCCB pẹlu kekere iye owo
★ Yara ifijiṣẹ, ti o tobi iṣura fun boṣewa si dede
★ Ọjọgbọn imọ support & lẹhin-tita iṣẹ
★ Gba OEM / ODM isọdi
★ Iwe-ẹri agbaye, o dara fun awọn ọja agbaye
★ Gun-igba ifowosowopo pẹlu awọn onibara lati 80+ awọn orilẹ-ede

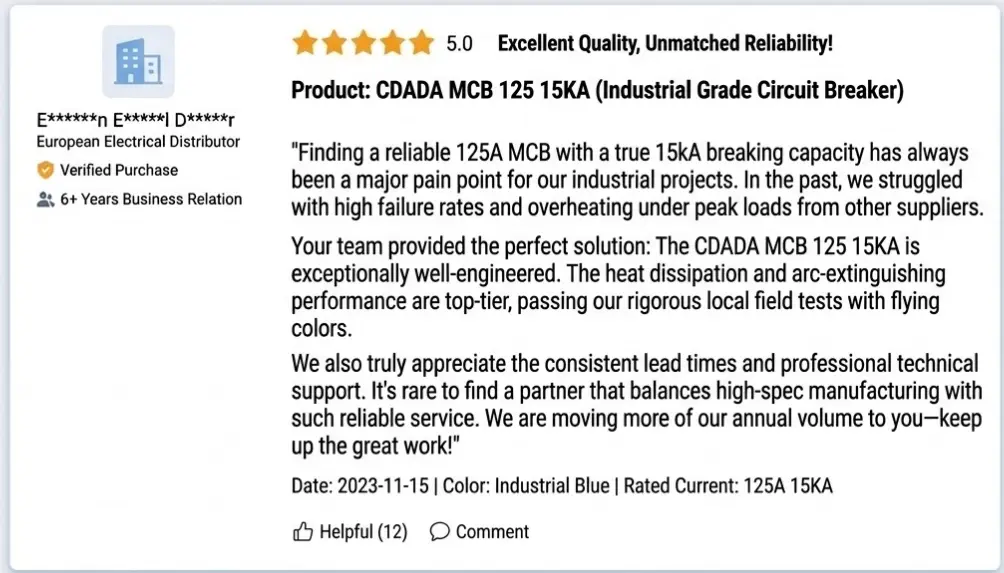

Idahun Onibara
"CDADA 125 15KA Miniature Circuit Breaker jẹ idurosinsin ati ki o gbẹkẹle, pipe fun awọn ile-iṣẹ ile-iṣẹ wa.
