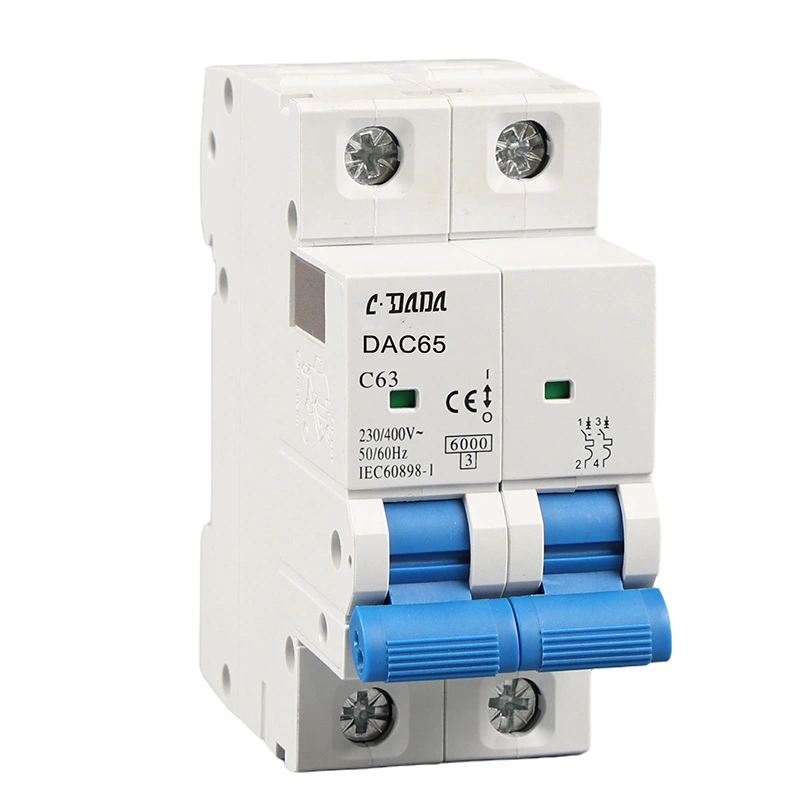

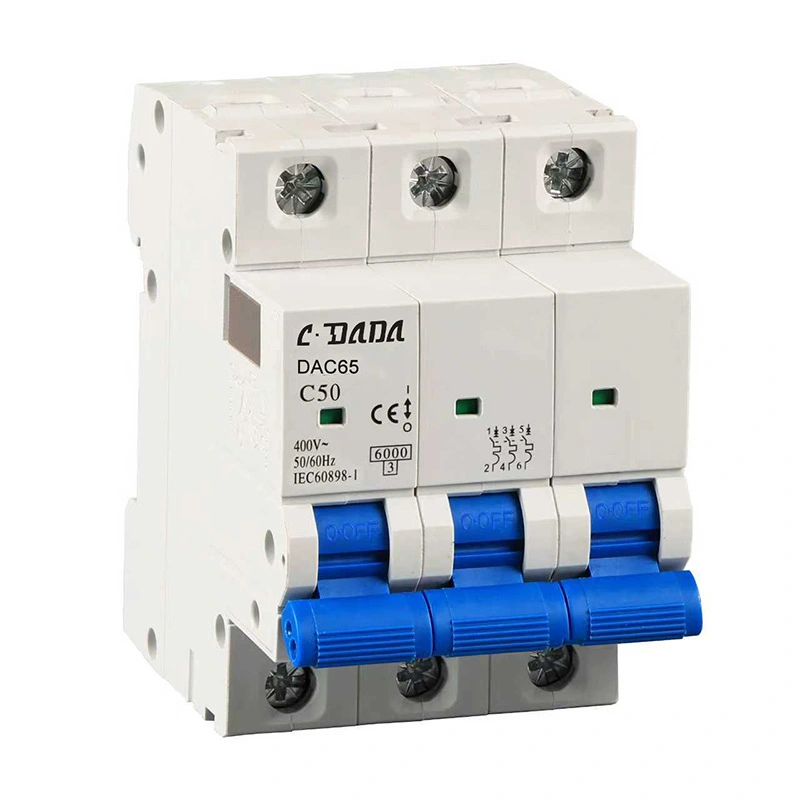

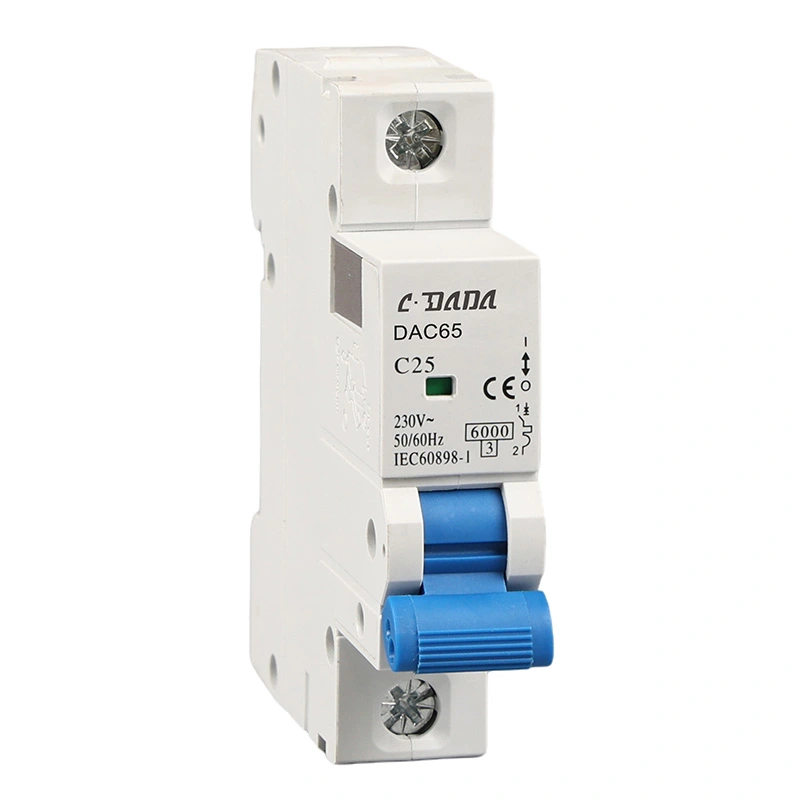

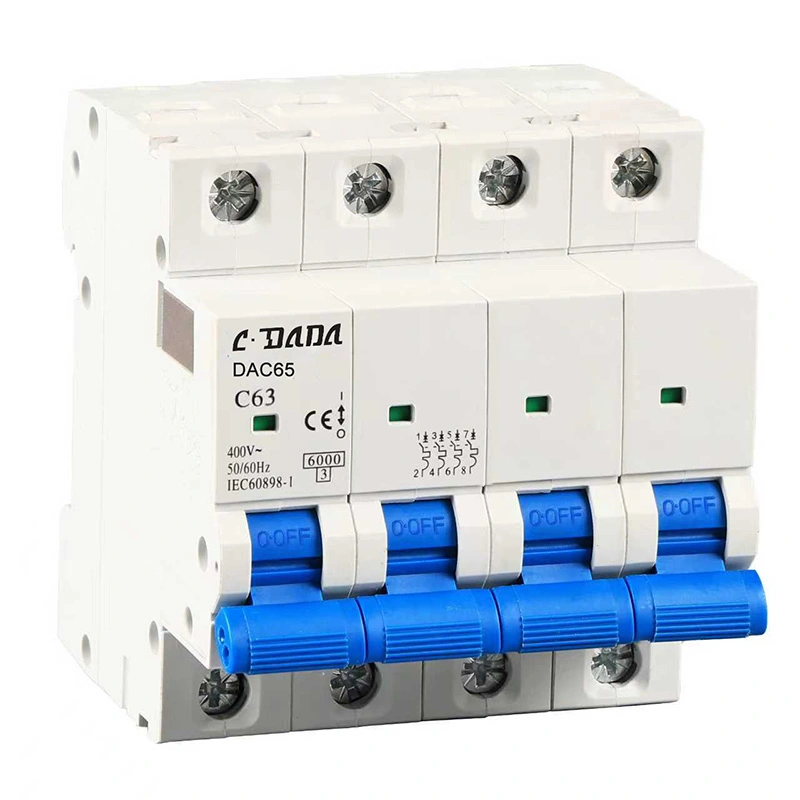

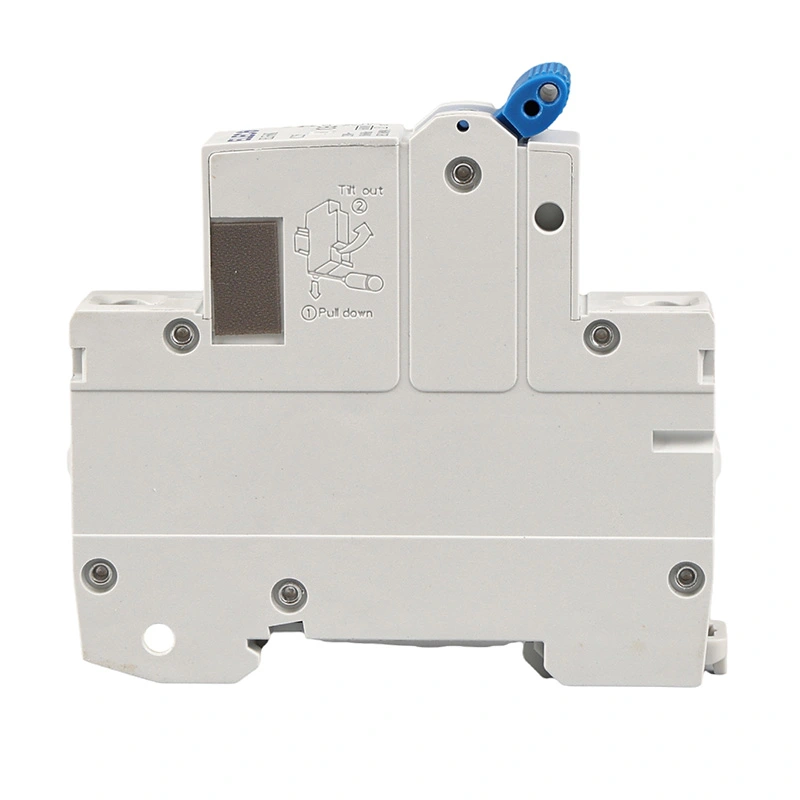

Miniature Circuit fifọ GIDI 6KA
Model:DAC65
Kan si CDADA loni ki o jẹ ki a jẹ olupese rẹ ti Miniature Circuit Breaker REAL 6KA, ifaramọ ẹrọ fifọ kekere ti o ni agbara giga pẹlu IEC / EN60898 fun aabo iyika igbẹkẹle. O ṣe ẹya tripping oofa ti o gbona ati ikarahun ti ina, o rọrun lati fi sori ẹrọ lori iṣinipopada DIN, ati pe o rọrun lati ṣetọju. O daapọ iṣẹ iduroṣinṣin pẹlu apẹrẹ ti o tọ, iyọrisi igbesi aye iṣẹ pipẹ fun ibugbe ati pinpin agbara ile-iṣẹ.
CDADA DAC65 Miniature Circuit Breaker REAL 6KA jẹ fifọ iyika kekere iṣẹ ṣiṣe giga ti a ṣe apẹrẹ fun awọn eto agbara AC 50/60Hz. O pese apọju imunadoko ati aabo kukuru-yika, pẹlu awọn iyipo tripping B/C/D lati baamu awọn ẹru oriṣiriṣi. Ti a lo jakejado ni awọn igbimọ pinpin, awọn ile ibugbe, awọn ile-iṣelọpọ, ati awọn ohun elo iṣowo, o jẹ yiyan ti o ga julọ fun awọn olura agbaye ati awọn alabaṣiṣẹpọ OEM.
Awọn anfani bọtini
★ REAL 6kA high breaking capacity for stable short-circuit protection
★ Thermal-magnetic release for accurate and fast tripping
★ Compact size: 17.8mm per pole, space-saving for cabinets
★ IP20 Idaabobo ìyí, ailewu lati fi ọwọ kan ati ki o ṣiṣẹ
★ Wide wiring range: supports 0.5–63A, flexible and rigid cables
★ DIN iṣinipopada iṣagbesori fun awọn ọna fifi sori
★ ikarahun ti ina-ina, resistance otutu otutu
★ Iduroṣinṣin išẹ ni -5℃~+40℃ ayika ibaramu
Awọn ohun elo
CDADA Miniature Circuit Breaker REAL 6KA is widely used in:
★ Ibugbe ile, Irini, Villas
★ Offices, tio malls, hotels, àkọsílẹ ile
★ Awọn idanileko ile-iṣẹ, awọn ohun elo agbara kekere
★ Awọn ọna itanna, awọn iho agbara, awọn panẹli pinpin
★ egeb, bẹtiroli, compressors ati kekere Motors
★ Amayederun ati itanna atunse ise agbese
Imọ paramita
| Nkan | Sipesifikesonu |
| Awoṣe | DAC65 MCB GIDI 6KA |
| Standard | IEC / EN60898 |
| Kikan Agbara | 6kA |
| Ti won won Lọwọlọwọ | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Awọn ọpá | 1P,1P+N,2P,3P,3P+N,4P |
| Tripping Curve | B(3-5Inu), C (5-10Inu), D(10-20Ninu) |
| Ti won won Foliteji | 1P:240V; 2P: 240/415V; 3P/4P:415V |
| Foliteji idabobo | 500V |
| Impulse Foliteji | 6kV |
| Agbara Idiwọn Class | 3 |
| Idaabobo ìyí | IP20 |
| Fifi sori ẹrọ | 35mm DIN iṣinipopada |
| Ebute Iru | Lug Iru / Pin Iru |
| Ibaramu otutu | -5℃ ~ +40℃ |

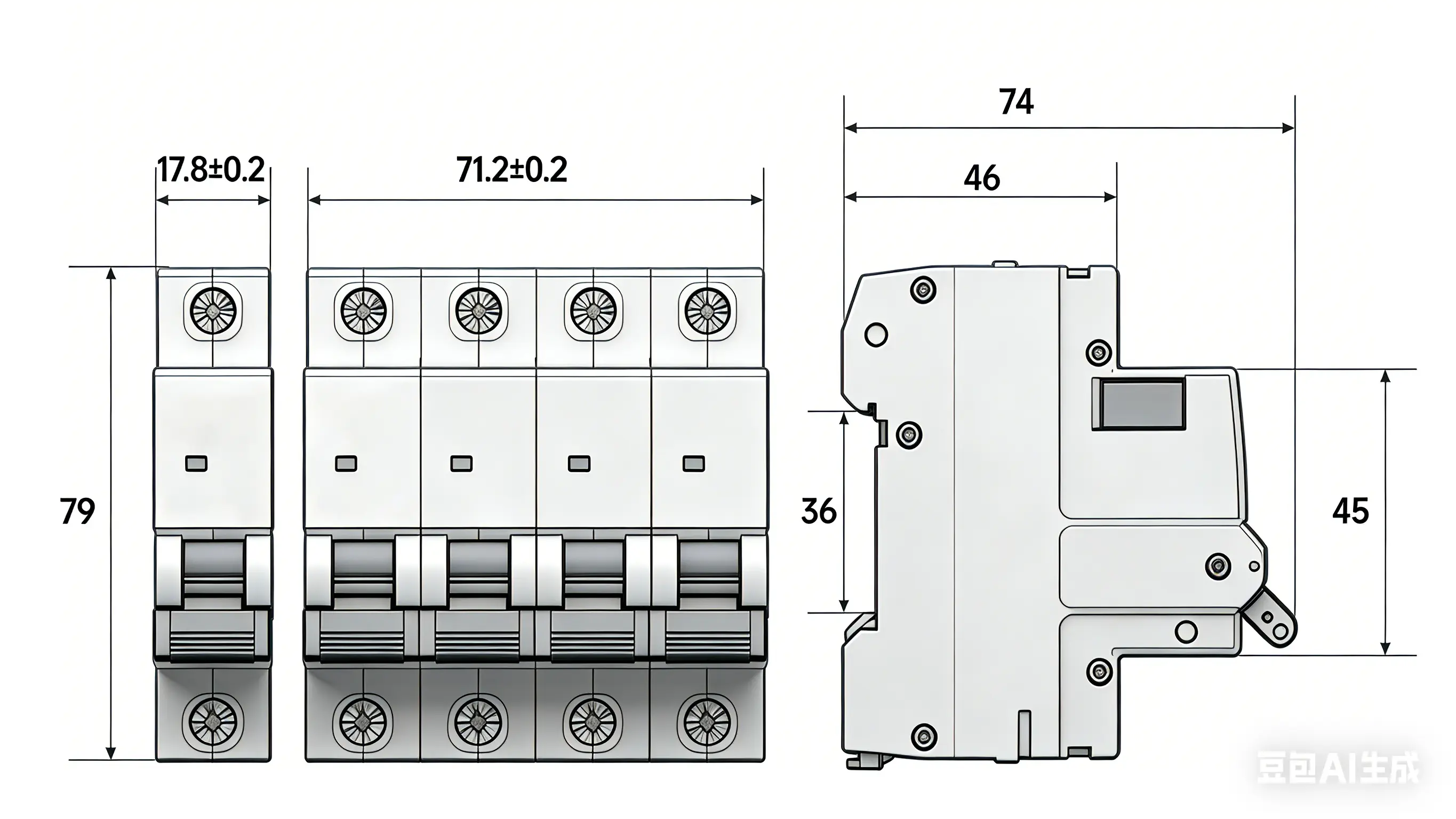

Awọn iwọn ila
★ Iwọn: 17.8mm fun ọpá kan
★ Iṣagbesori: Standard 35mm DIN iṣinipopada
★ Agbara onirin: Titi di 35mm² okun lile
★ iwapọ be fun boṣewa pinpin apoti
Standard Igbeyewo Awọn ohun
★ 1.13Ninu idanwo ti kii-tripping (≥1h)
★ 1.45 Ninu idanwo tripping (<1h)
★ Idanwo abuda tripping oofa
★ Igbeyewo dide otutu
★ Dielectric foliteji withstand igbeyewo
★ Idanwo agbara fifọ kukuru-kukuru (6kA)
★ Mechanical & itanna ìfaradà igbeyewo

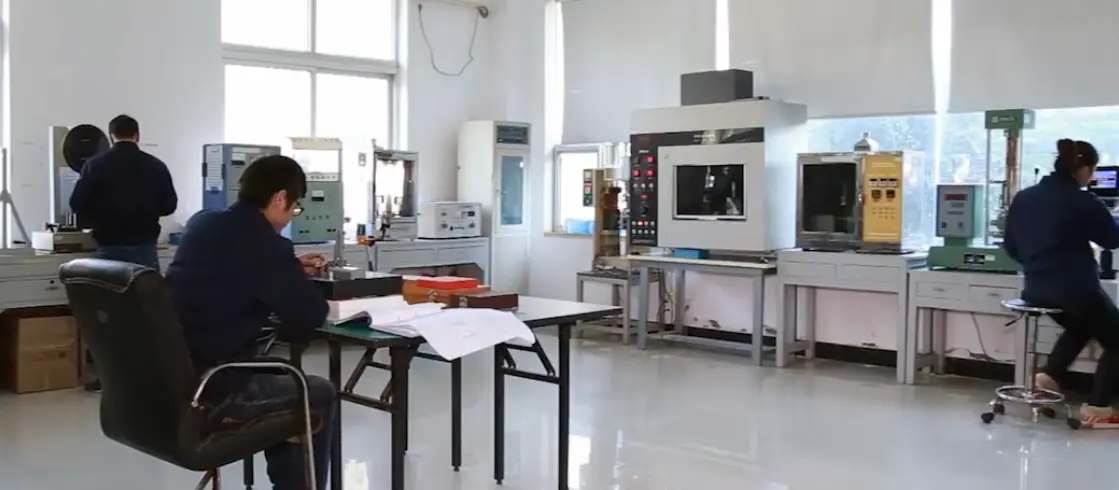

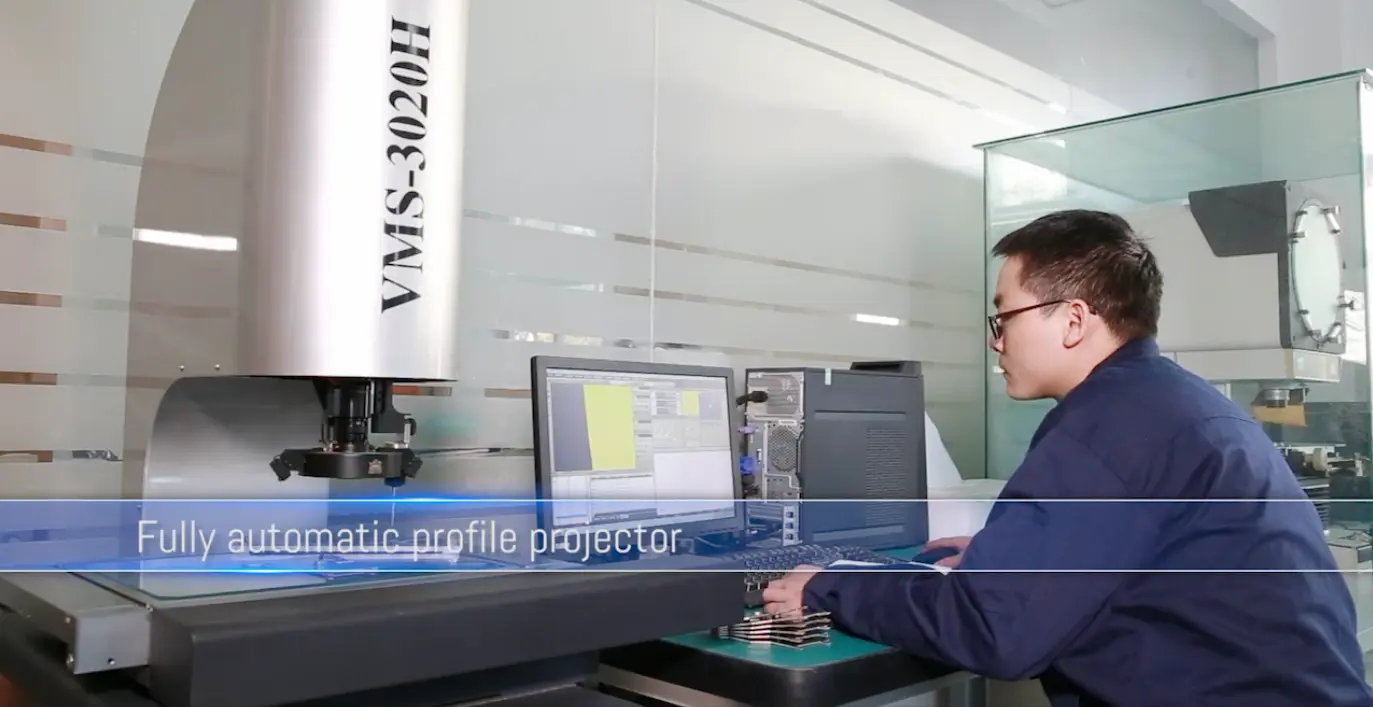

Ilana Iṣakoso Didara
1. Aise ohun elo ti nwọle ayewo
2. Ṣiṣejade laifọwọyi & apejọ deede
3.100% ni kikun tripping odiwọn
4. Igbeyewo ti nṣiṣẹ giga / kekere
5. Duro foliteji & idanwo idabobo
6. Irisi & ayewo iwọn
7. Ayẹwo ikẹhin ṣaaju iṣakojọpọ
Iṣakojọpọ & Gbigbe
★ Standard okeere paali pẹlu shockproof akojọpọ ikan
★ Ko aami: awoṣe, lọwọlọwọ, ọpá, opoiye, iwe eri
★ apoti apoti ẹgbẹ lati yago fun ibere ati ibajẹ
★ Dara fun okun, air ati ilẹ transportation
★ Atilẹyin OEM aami & aṣa apoti
Awọn ọran Aṣeyọri Onibara
CDADA Miniature Circuit Breaker REAL 6KA has long-term partnerships worldwide:
★ Bulk supply for European distributors and contractors
★ Residential & commercial projects in Middle East & Africa
★ OEM ifowosowopo pẹlu agbaye itanna burandi
★ Power distribution systems in Southeast Asia & South America
★ Long-term orders from importers and electrical integrators
