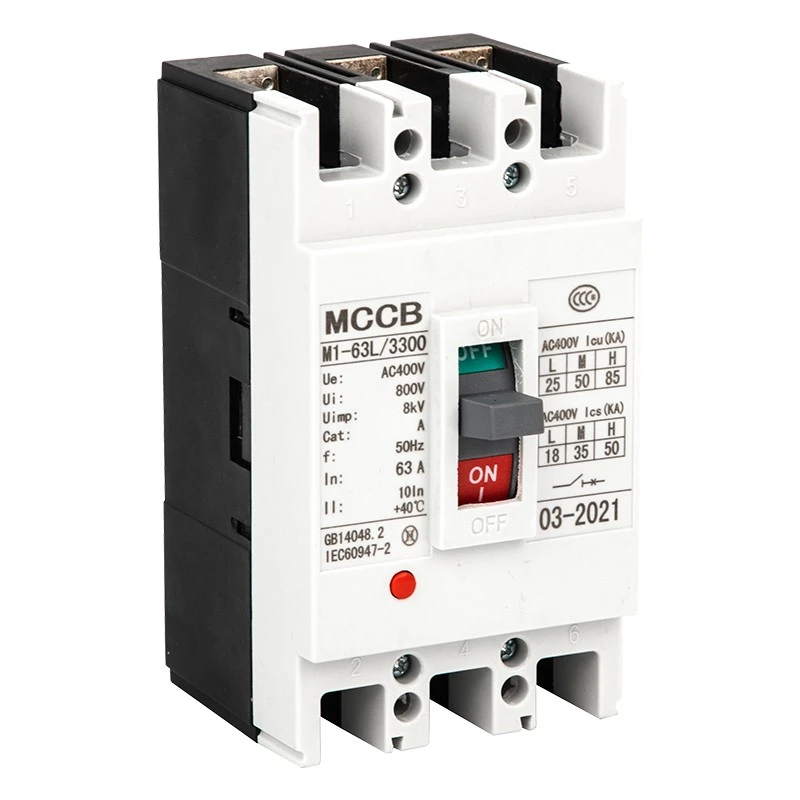

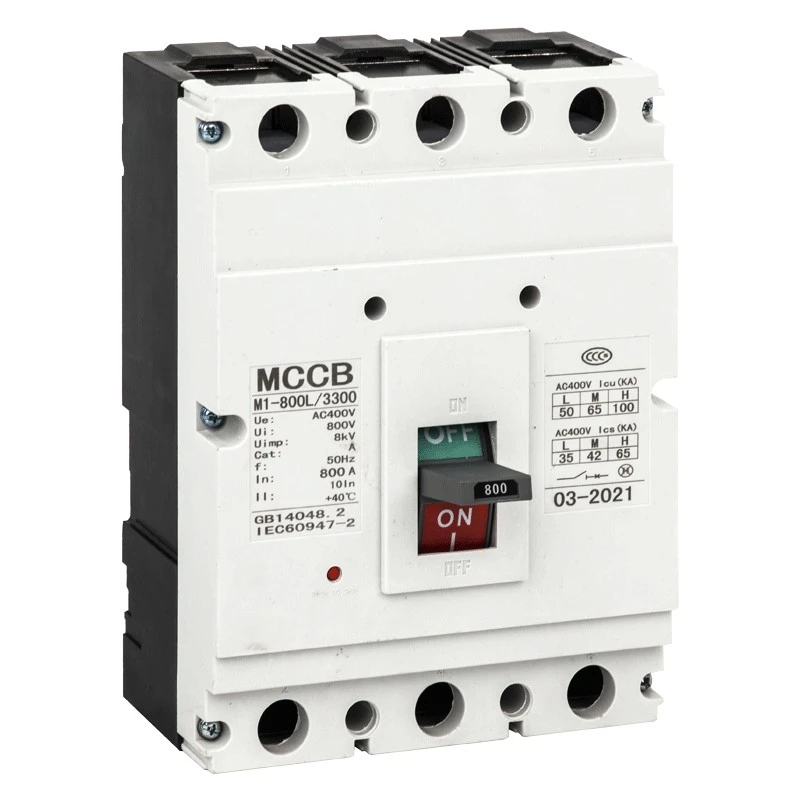

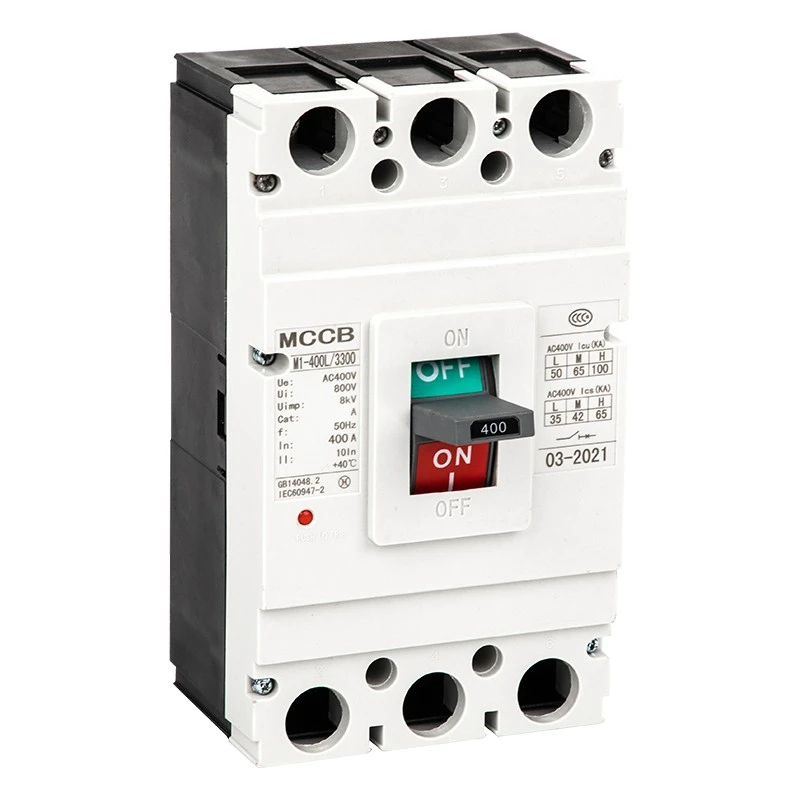

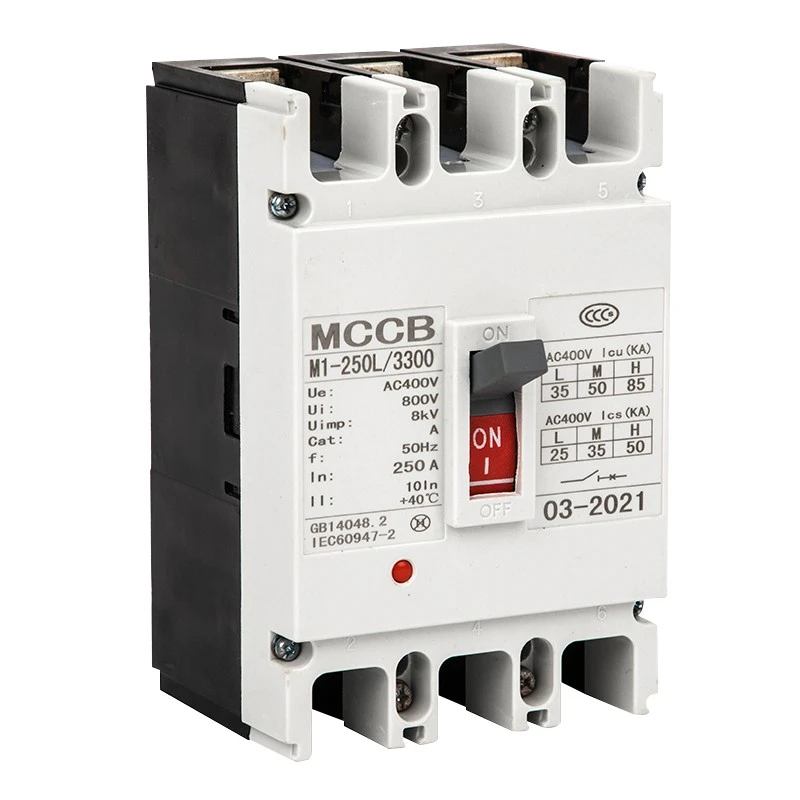

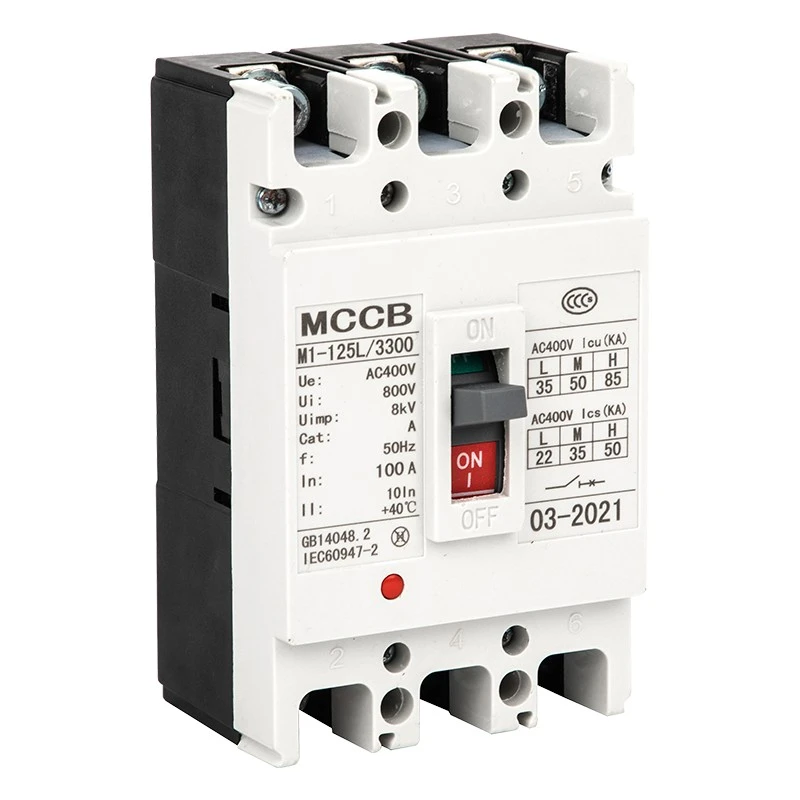

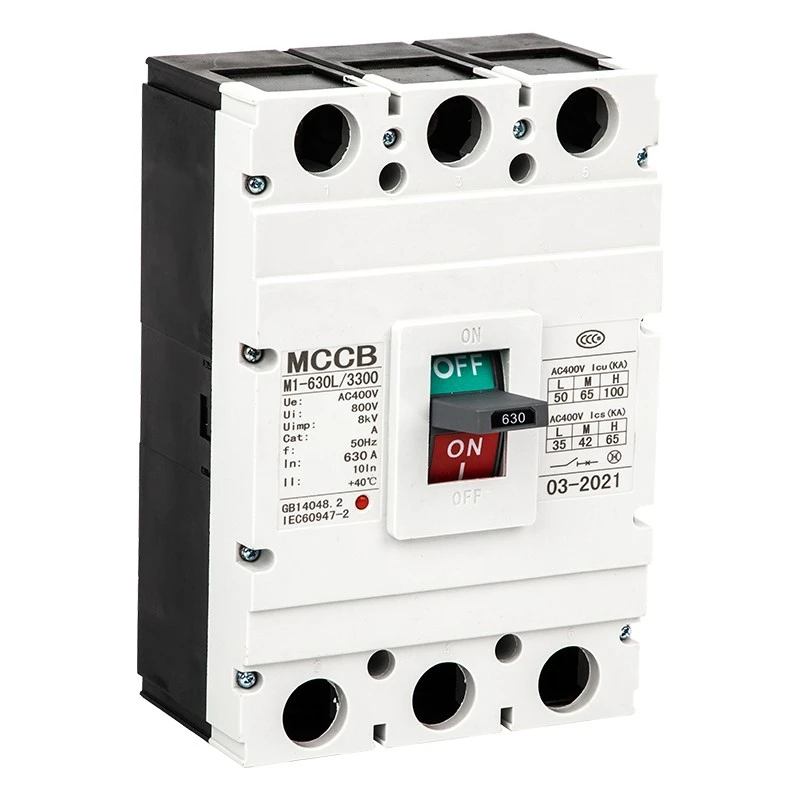

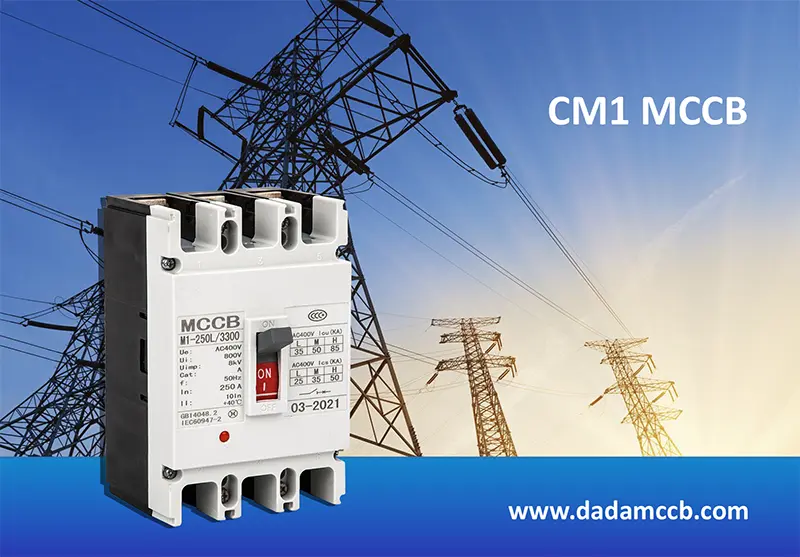

CM1 Molded Case Circuit fifọ

DAM2 yii (CM1) jara CM1 Molded Case Circuit Breaker jẹ ohun elo aabo kekere-voltage giga ti iṣelọpọ nipasẹ Shanghai DADA Electric Co., Ltd., olupese ti o gbẹkẹle ati olupese ni Ilu China. Pẹlu foliteji idabobo ti a ṣe iwọn si 800V, iwọn foliteji ṣiṣẹ 400V/690V, ati iwọn lọwọlọwọ lati 63A si 1600A, o jẹ lilo pupọ fun pinpin agbara, aabo Circuit, iṣakoso mọto ati iyipada loorekoore.

Ẹya yii ṣe atilẹyin inaro ati fifi sori petele, ni ibamu pẹlu boṣewa IEC60947-2, ati pe o pese apọju pipe, ọna kukuru ati aabo labẹ-foliteji fun ohun elo agbara.

Ọja Awọn ẹya ara ẹrọ

★ Foliteji idabobo ti a ṣe iwọn: 800V; Foliteji ṣiṣẹ: 400V/690V

★ Iwọn lọwọlọwọ: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A

★ Kikan agbara: L boṣewa, M alabọde, H ga kikan iru

★ Oofa-oofa & itanna awọn ipo idasilẹ meji

★ inaro / petele fifi sori, o dara fun ipinya lilo

★ Iwọn otutu ibaramu jakejado: -5℃~+40℃

★ Giga ≤2000m, iwọn idoti 3

Awọn ohun elo

CDADA CM1 Molded Case Circuit Breaker jẹ lilo pupọ ni ile-iṣẹ ati awọn eto pinpin agbara ara ilu, pẹlu awọn ile-iṣelọpọ, awọn ile, awọn ile-iṣẹ data, awọn ibudo agbara, awọn amayederun, ohun elo ẹrọ, ati awọn apoti minisita pinpin agbara. O tun lo fun aabo mọto, iyipada iyika, ati ipese agbara ailewu ni ikole, irin-irin, petrochemical ati awọn ile-iṣẹ miiran.

Imọ paramita

★ Standards: IEC60947-2, GB14048.2

★ Igbohunsafẹfẹ: AC 50Hz/60Hz

★ Ọpá: 1P,2P, 3P, 4P

★ itusilẹ: Oofa-oofa (ilọpo meji), itanna (lasekanna)

★ Eto lẹsẹkẹsẹ: Iru pinpin 10Ni ± 20%; Iru mọto 12In ± 20%

★ fifi sori: Iwaju onirin, ru onirin, plug-ni iru

★ isẹ: Afowoyi, ina ẹrọ siseto

Ìla & Fifi sori Mefa

CM1 MCCB wa n pese data iwọn pipe fun awọn awoṣe 63A-1600A, pẹlu wiwọ iwaju, wiwọ ẹhin ati iru plug-in. Awọn titobi fireemu oriṣiriṣi (63/100/225/400/630/800/1250/1600) ti baamu awọn iwọn H, H1, H2 fun fifi sori minisita boṣewa. Afowoyi ati giga ẹrọ ṣiṣe ina tun jẹ idiwọn fun apejọ irọrun.

Awọn ẹya ẹrọ & Awọn iṣẹ

Ti abẹnu Awọn ẹya ẹrọ

★ Itusilẹ Shunt: 70% – 110% foliteji ti a ṣe iwọn fun tripping ti o gbẹkẹle

★ Itusilẹ labẹ-foliteji: 35%–70% foliteji ju silẹ fun aabo adaṣe

★ Olubasọrọ oluranlọwọ & Olubasọrọ itaniji: Esi ifihan agbara ati itaniji aṣiṣe

★ Tusilẹ iyasọtọ mita ti a ti san tẹlẹ: Idaduro tripping 0.5–2s

Ita Awọn ẹya ẹrọ

★ Afọwọṣe ọna ẹrọ

★ Electric (motor) ẹrọ siseto

★ alakoso separators, iṣagbesori skru, busbars irin ise

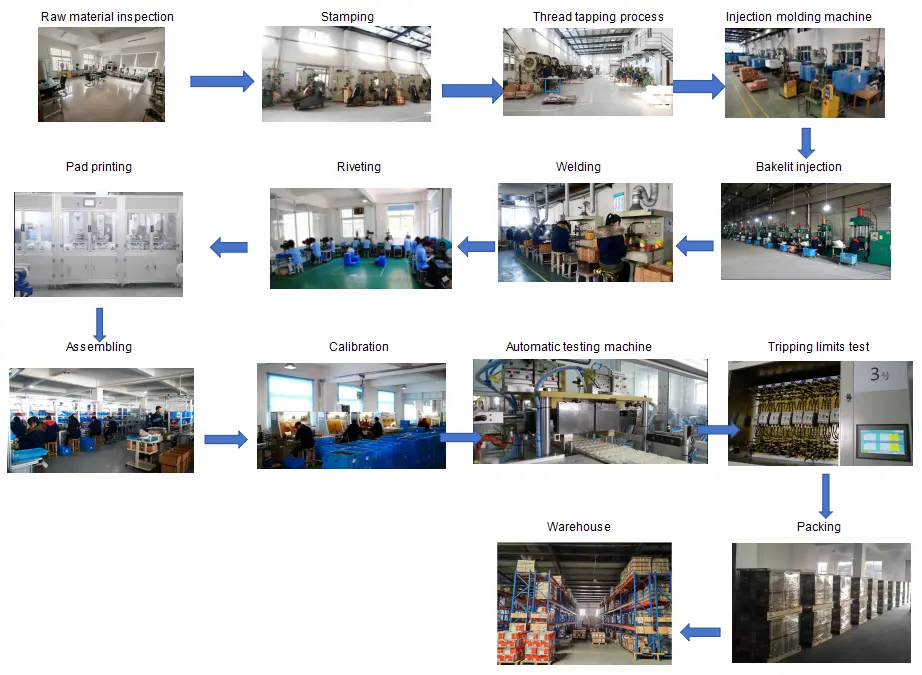

Ṣiṣan Iṣakoso Didara

Ayẹwo ohun elo aise → Ṣiṣejade iṣelọpọ → Laini apejọ → Idanwo abuda irin ajo → Idanwo iwọn otutu → Idanwo kukuru kukuru → Idanwo ti ogbo → Irisi & ayẹwo iwọn → Iṣakojọpọ → Ayewo ikẹhin ṣaaju gbigbe.

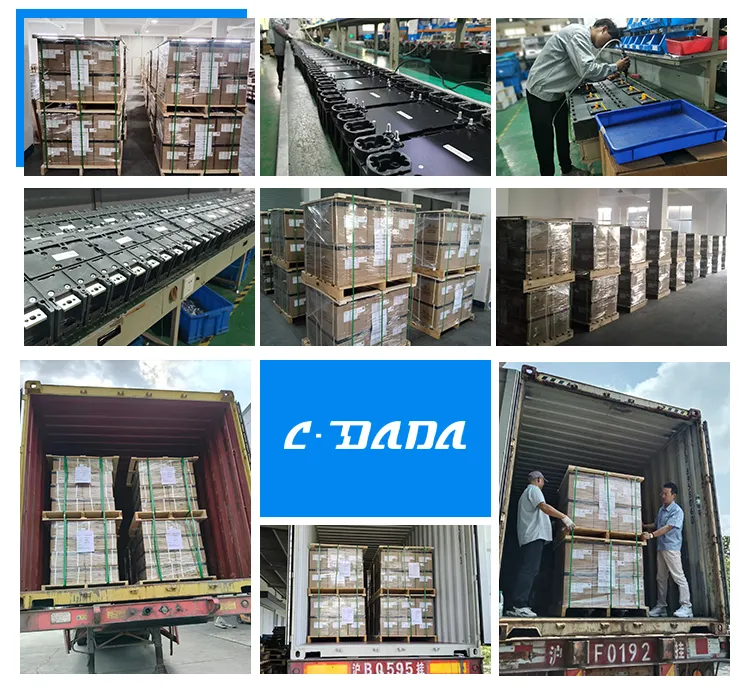

Iṣakojọpọ & Gbigbe

★ Standard okeere paali + onigi pallet fun ailewu transportation

★ Aami: awoṣe, lọwọlọwọ, polu, opoiye, ijẹrisi

★ Dara fun okun, air ati ilẹ eekaderi

Awọn iwe-ẹri

IEC60947-2, GB14048.2, CE, CB, ROHS ati awọn miiran okeere alakosile.

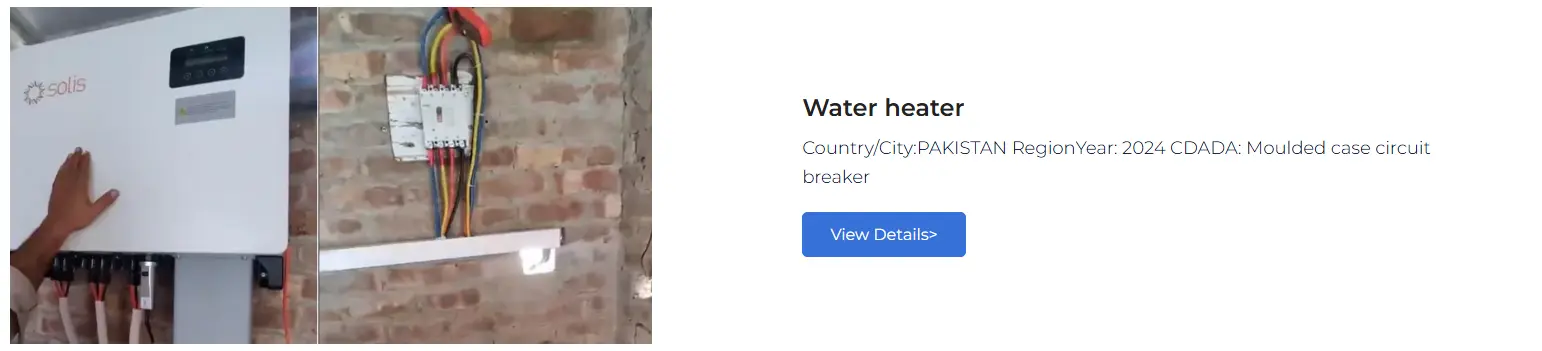

Awọn ọran Ifowosowopo Onibara

CDADA DAM2 jara MCCB ti pese si awọn alabara agbaye, pẹlu awọn olutọpa eto pinpin agbara, awọn aṣelọpọ ohun elo ile-iṣẹ, awọn ile-iṣelọpọ switchgear, awọn alagbaṣe ikole ati awọn ami OEM ni Yuroopu, Guusu ila oorun Asia, Aarin Ila-oorun, Afirika ati South America. A pese ipese olopobobo iduroṣinṣin ati awọn solusan adani fun awọn alabaṣiṣẹpọ igba pipẹ.
