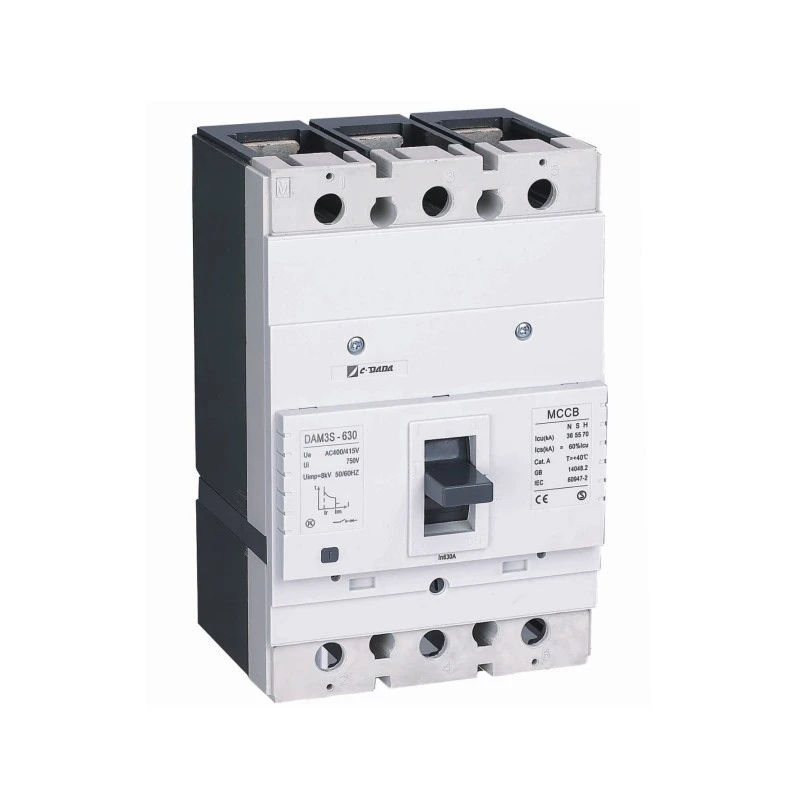

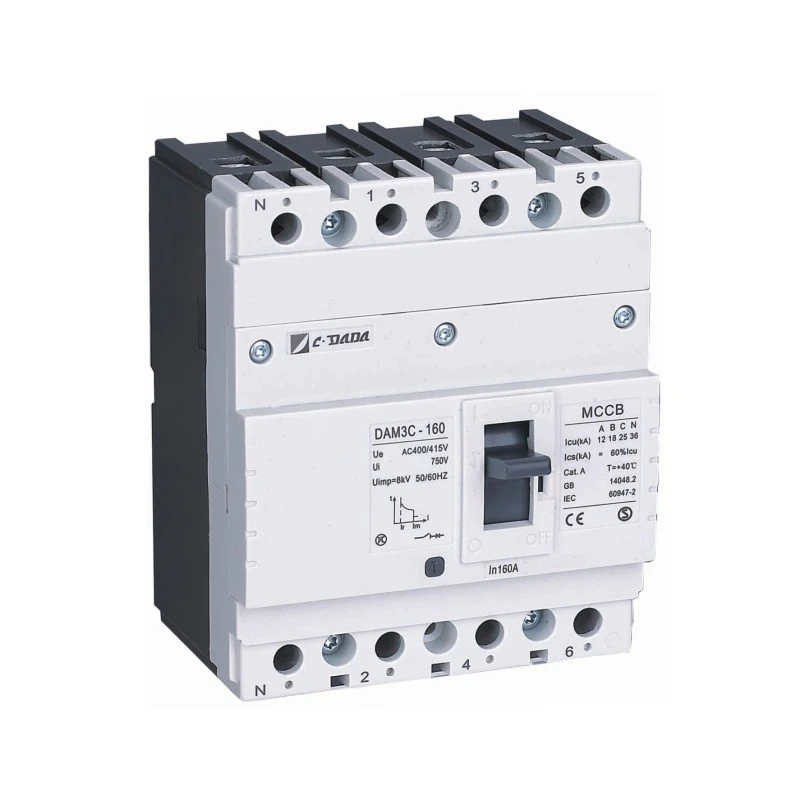

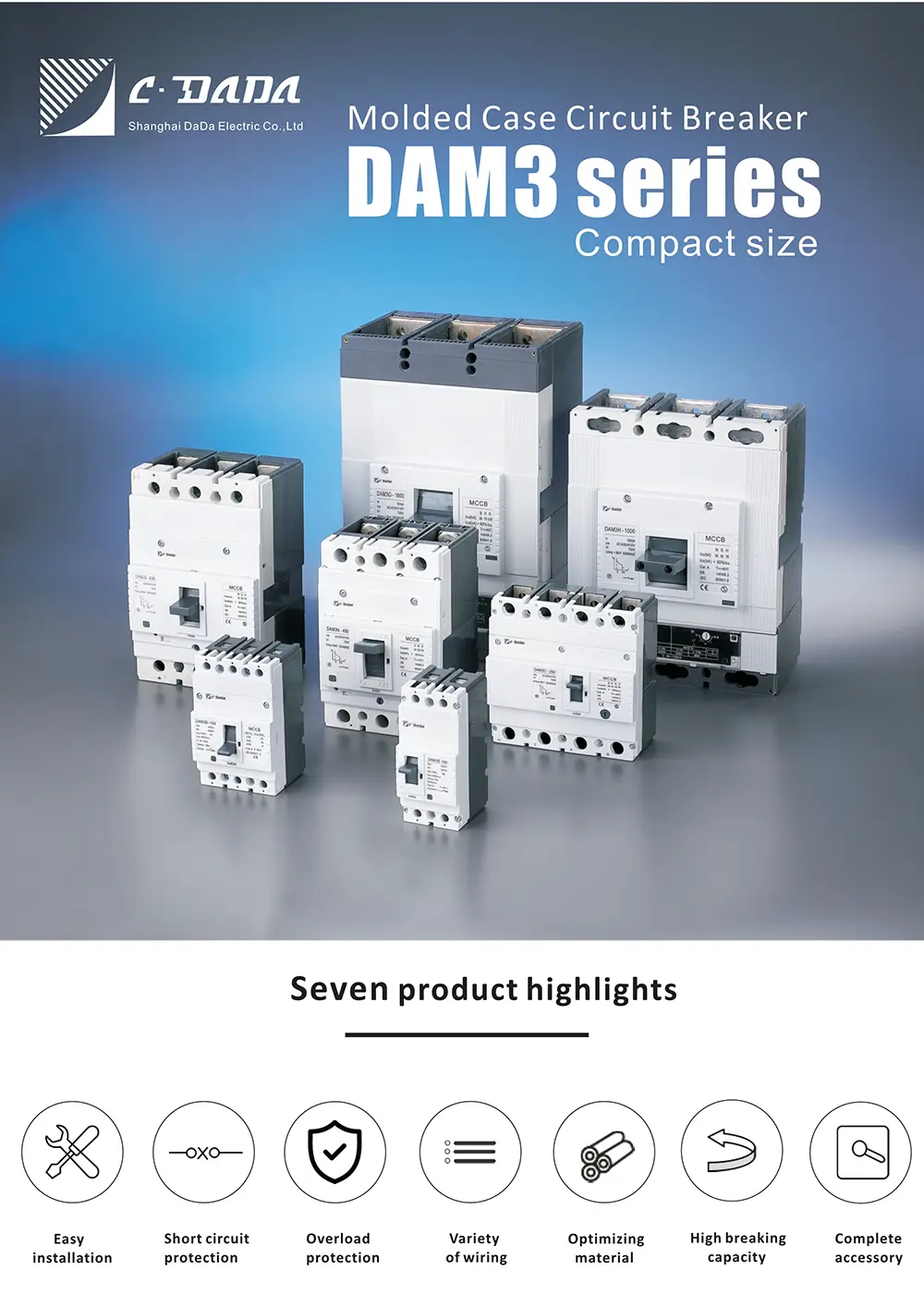

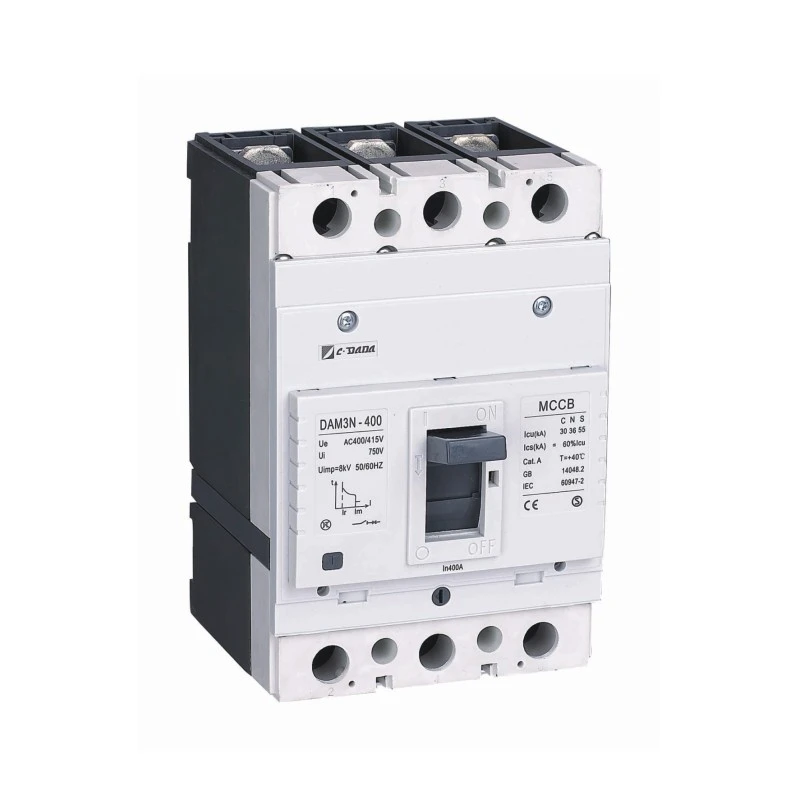

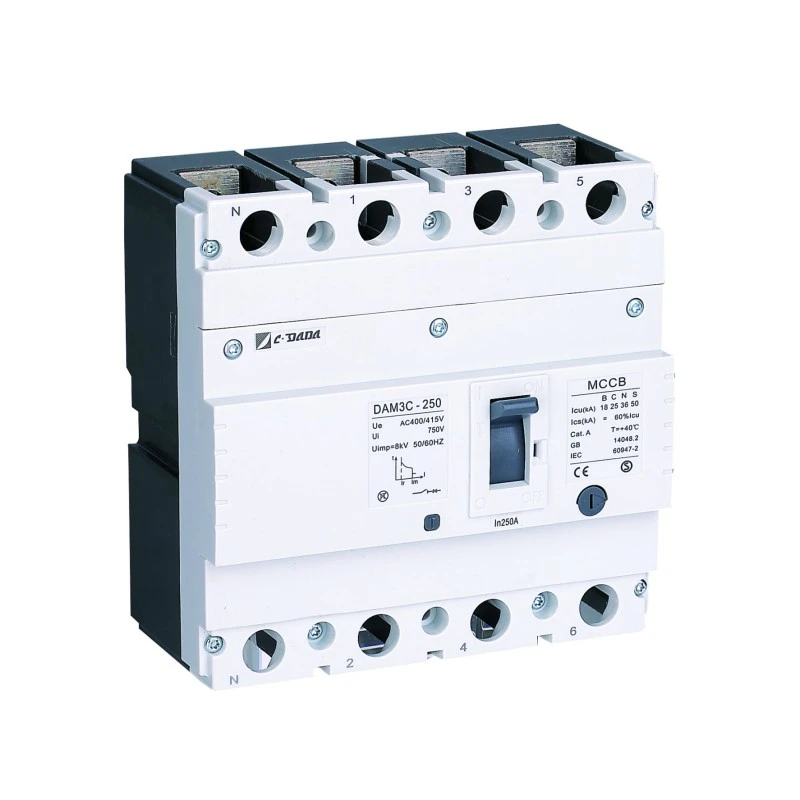

Iwapọ mọ Case Circuit fifọ
Model:DAM3 Series
CDADA, olupilẹṣẹ relibale ati olupese lati ọdun 1983, le funni ni didara didara DAM3 Series Compact Molded Case Circuit Breaker, kekere sibẹsibẹ lagbara, ti a ṣe iwọn 16A-1600A, to agbara fifọ 70kA. Apẹrẹ fifipamọ aaye dinku iwọn nronu nipasẹ 25%. Apẹrẹ fun OEMs & awọn akọle nronu. CE & IEC ifọwọsi.
Nigbati aaye ba ṣoki ṣugbọn iṣẹ ko le ṣe adehun, CDADA DAM3 Compact Molded Case Circuit Breaker n pese iwọntunwọnsi pipe. Ti a ṣe nipasẹ Shanghai DADA Electric CO., LTD., mini MCCB tun ṣe alaye ṣiṣe pẹlu ipasẹ ti o dinku pupọ-laisi rubọ igbẹkẹle tabi agbara fifọ.
Ti a ṣe iwọn lati 16A si 1600A ati fifun idalọwọduro kukuru-kukuru to 70kA ni 415V, jara DAM3 jẹ idi-itumọ fun awọn ile-iṣelọpọ OEM, awọn olutọpa nronu, ati awọn ẹgbẹ fifi sori ẹrọ ti o beere yiyan ti o rọrun, wiwu irọrun, ati awọn ifowopamọ aaye minisita ti o pọju. Pelu iwọn iwapọ rẹ, o pin gbogbo awọn ẹya inu inu pẹlu jara DAM1 ti a fihan — ni idaniloju ibamu ati iṣẹ ṣiṣe ni gbogbo eto rẹ.
Awọn pato bọtini
Awoṣe: DAM3 Series – Iwapọ mọ Case Circuit fifọ
Ti won won Lọwọlọwọ (Ninu): 16A - 1600A
Awọn ọpá: 2P / 3P / 4P
Ti won won idabobo Foliteji (Ui): 1000V
Agbara fifọ (Icu): 10kA – 70kA @ 415V (ti o gbẹkẹle awoṣe)

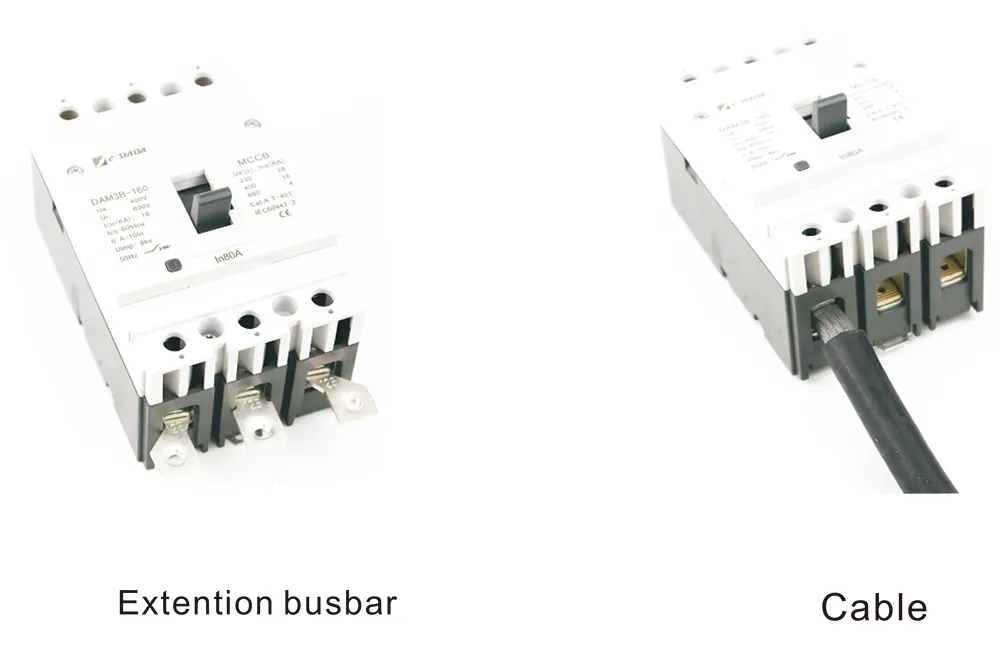

Ipari USB: Awọn lugs USB M8 tabi awọn ebute apoti (boṣewa)
Iṣagbesori: Panel-agesin (pẹlu iyan DIN ohun ti nmu badọgba iṣinipopada fun awọn fireemu kere)
|
Ti won won lọwọlọwọ ti iwọn fireemu inm [A] |
160 |
250 |
400 |
630 |
1000 |
1600 |
|
|
Ti won won lọwọlọwọ [A] |
12.5-160 |
100-250 |
200-400 |
315-630 |
630 800 1000 |
1000 1250 1600 |
|
|
Nọmba ti ọpá |
2/3/4 |
2/3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
|
|
Won won awọn ọna waltage |
AC) 50-60HZ [V] |
4001690 |
4001690 |
4001690 |
4001690 |
4001690 |
4001690 |
|
DC |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
250V1000 |
|
|
Imudani ti o ni idiwọn withstand foliteji ulmp [kv] |
8 |
8 |
8 |
8 |
8 |
8 |
|
|
Iwọn idabobo voliage Ul [V] |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
Ṣe idanwo voltsge ni igbohunsafẹfẹ induslrial fun iṣẹju 1 [V] |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
Ti won won uhimate shart Circuit fifọ agbara lcu [kA] |
A |
C |
N |
N |
N |
S |
|
|
(AC) 50-60HZ 220/230V [KA] |
18 |
25 |
36 |
36 |
36 |
55 |
|
|
(AC) 50-60HZ 400/415V [KA] |
10 |
15 |
25 |
25 |
36 |
36 |
|
|
(AC) 50-60HZ 690V [KA] |
6 |
8 |
15 |
15 |
15 |
20 |
|
|
Agbara fifọ iṣẹ kukuru kukuru, lca [KA] |
|
||||||
|
(AC) 50-60HZ 220/230V [% lcu] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
(AC) 50-60HZ 400/415V [% lcu] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
(AC) 50-60HZ 690V [% lcu]] |
60% |
60% |
60% |
60% |
60% |
60% |
|
|
Ẹka ti iṣamulo (EN 60947.2) |
A |
A |
A |
A |
A |
A |
|
|
Ifarada |
Lapapọ awọn iyipo |
10000 |
10000 |
8000 |
6000 |
5000 |
5000 |
|
Itanna ifarada |
1500 |
1500 |
1000 |
1000 |
1000 |
1000 |
|
|
Darí ìfaradà |
8500 |
8500 |
7000 |
5000 |
4000 |
4000 |
|
Anfani bọtini:
★ Titi di 25–30% kere ju awọn MCCB ti aṣa ni kilasi lọwọlọwọ kanna
★ Ibamu: Gbogbo awọn ẹya inu inu interchangeable pẹlu DAM1 jara
★ Standards: Complies with IEC/EN 60947-2
Kini idi ti o yan CDADA Compact MCCB?
★ Awọn ẹya ẹrọ oriṣiriṣi jẹ iyan,
★ Iwọn ti dinku pupọ.
DAM3, eyiti o ṣepọ gbogbo awọn ẹya ara ẹrọ ti didara to gaju, igbẹkẹle giga ati ayedero ti Dada ina mọnamọna, jẹ gidi ti o rọrun ati ti o wulo Molded Case Circuit Breaker.
Iwọn ti dinku, ṣugbọn ṣe idaniloju iṣẹ ti o dara julọ ati igbẹkẹle. Ti a ṣe afiwe pẹlu gbogbo iru awọn ọja fifọ iyika ti o jọra lori ọja, o ni ipin iwọn iṣẹ ṣiṣe giga., Eyi ti o le pese aaye diẹ sii fun awọn olumulo lati ṣe wiwọn okun ati dinku iwọn minisita.
Iwapọ iwọn ni awọn anfani nla. O dara ni pataki fun awọn ile-iṣẹ OEM, awọn ile-iṣelọpọ nronu, ati awọn oṣiṣẹ fifi sori ẹrọ.
★ Ngba Irọrun & Fifi sori
● Ko koodu awoṣe kuro → pipaṣẹ irọrun
● Awọn ẹya ẹrọ ti o ni idiwọn → ko si awọn ẹya aṣa ti o nilo
● Wiwọle ebute lọpọlọpọ → ifopinsi okun yiyara
★ Iye owo & Awọn ifowopamọ aaye
Kere breakers = kere enclosures = kekere ohun elo, sowo, ati fifi sori owo. Awọn aaye inu afikun tun ṣe ilọsiwaju sisẹ ooru ati iraye si itọju.
★ Igbẹkẹle ti a fihan
Ti a ṣe lori awọn ewadun ti iriri imọ-ẹrọ DADA. Pinpin awọn paati ipilẹ pẹlu aaye-ẹri DAM1 jara-ti o gbẹkẹle ẹgbẹẹgbẹrun awọn fifi sori ẹrọ ni kariaye.
★ Scalable Kọja Awọn ohun elo
Lati 32A mini MCCB fun awọn iyika iṣakoso si fifọ akọkọ 1600A fun awọn ifunni ile-iṣẹ — pẹpẹ DAM3 bo gbogbo rẹ pẹlu ọgbọn apẹrẹ ibamu.

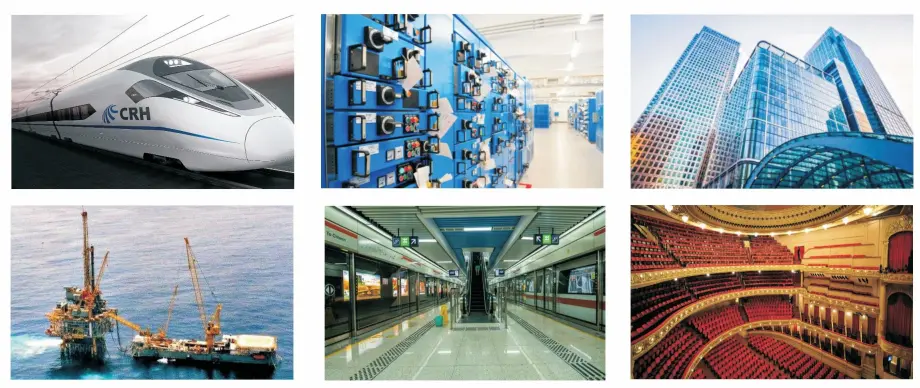

Bojumu Lo Igba
★ Ẹrọ OEM: Fi sii ninu awọn apoti ohun elo iṣakoso iwapọ (fun apẹẹrẹ, apoti, CNC, roboti)
★ Awọn panẹli Iṣowo: Ina, HVAC, ati ipinpinpin ni awọn giga-giga
★ Agbara isọdọtun: Awọn apoti akojọpọ oorun & aabo oluyipada
★ Amayederun: Telecom agbara sipo, EV gbigba agbara ibudo
★ Retrofit Projects: Rọpo bulky julọ breakers lai redesigning paneli

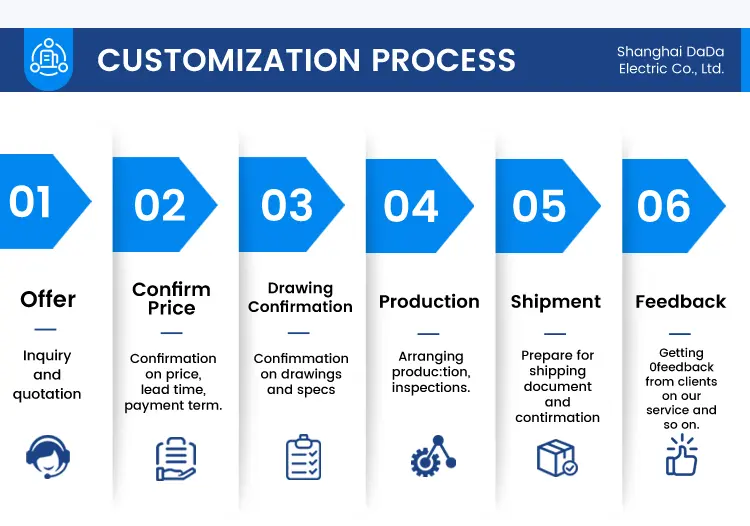

Bere fun & Isọdi
A ni awọn agbara OEM / ODM ti o lagbara ati pe o le ṣe idagbasoke ati iṣelọpọ awọn ọja ti o da lori awọn iyaworan imọ-ẹrọ ati awọn pato.
Sowo & eekaderi
A ni sanlalu okeere iriri. A le ṣeto gbogbo gbigbe, iwe, ati awọn ilana imukuro kọsitọmu okeere fun ọ.
FAQs
Q1: Kini o jẹ ki DAM3 jẹ “iwapọ” MCCB?
A1: Apẹrẹ ẹrọ rẹ jẹ 25 – 30% kere ju awọn MCCBs boṣewa ni iwọn lọwọlọwọ kanna - aṣeyọri nipasẹ awọn iyẹwu arc iṣapeye, awọn ẹya irin-ajo iwapọ, ati ipa-ọna ọkọ akero daradara-lakoko mimu agbara fifọ 70kA ni kikun.
Q2: Ṣe 32A iwapọ MCCB wa ni 3-polu?
A2: Bẹẹni! DAM3 jara Iwapọ Molded Case Circuit Breaker nfunni ni 2P, 3P, ati awọn atunto 4P kọja gbogbo sakani 16A–1600A, pẹlu awọn idiyele olokiki bii 32A, 63A, 100A, ati 160A.
Q3: Ṣe Mo le lo awọn ẹya ẹrọ kanna bi DAM1?
A3: Egba-gbogbo awọn ẹya inu ati ita (awọn irin-ajo shunt, awọn oluranlọwọ iranlọwọ, awọn idasilẹ ti ko ni agbara, ati bẹbẹ lọ) ni ibamu ni kikun pẹlu jara DAM1, ohun-ọja ti o rọrun.
Q4: Ṣe iwọn iwapọ ni ipa lori iṣẹ fifọ?
A4: Bẹẹkọ. Pelu iwọn kekere rẹ, DAM3 n pese agbara idilọwọ 70kA ni 415V-ti o kọja ọpọlọpọ awọn oludije ti o tobi ju-ọpẹ si imọ-ẹrọ arc-quenching to ti ni ilọsiwaju.
Q5: Kilode ti o yan CDADA lori awọn ami iyasọtọ "mini" MCCB miiran?
A5: CDADA duro jade nitori:
● Otitọ agbegbe giga-lọwọlọwọ (to 1600A ni fọọmu iwapọ)
● Agbara fifọ 70kA ni awọn awoṣe ti a yan (toje fun awọn “mini” MCCBs)
● Eto ilolupo ẹya ẹrọ ni kikun ati ibamu DAM1
● Idojukọ ibamu agbaye (IEC, CE, RoHS)
● Atilẹyin idojukọ OEM: Awọn iwe Gẹẹsi, iṣapẹẹrẹ iyara, idiyele pupọ
