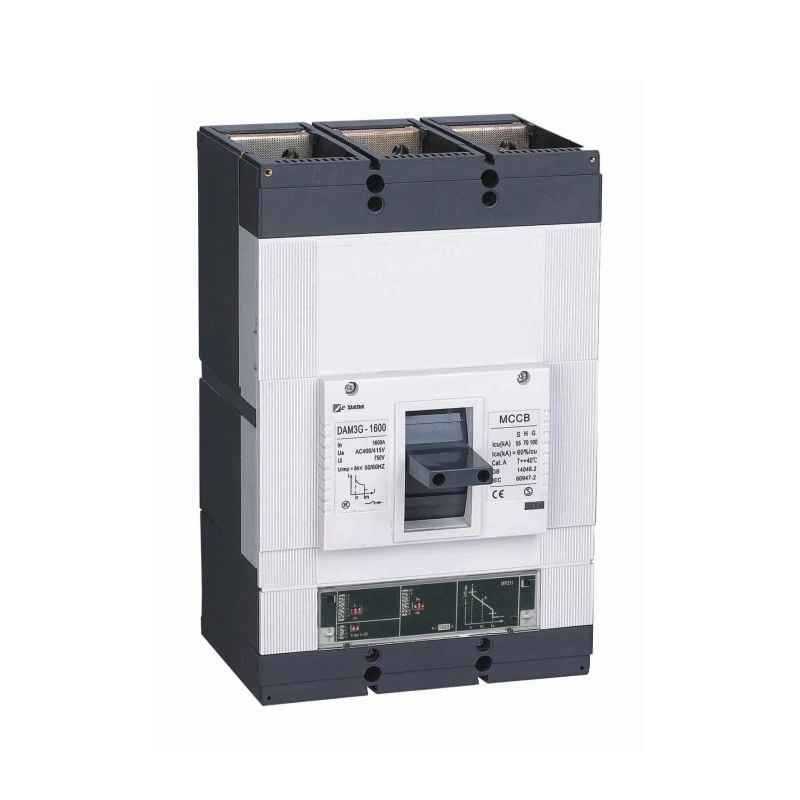

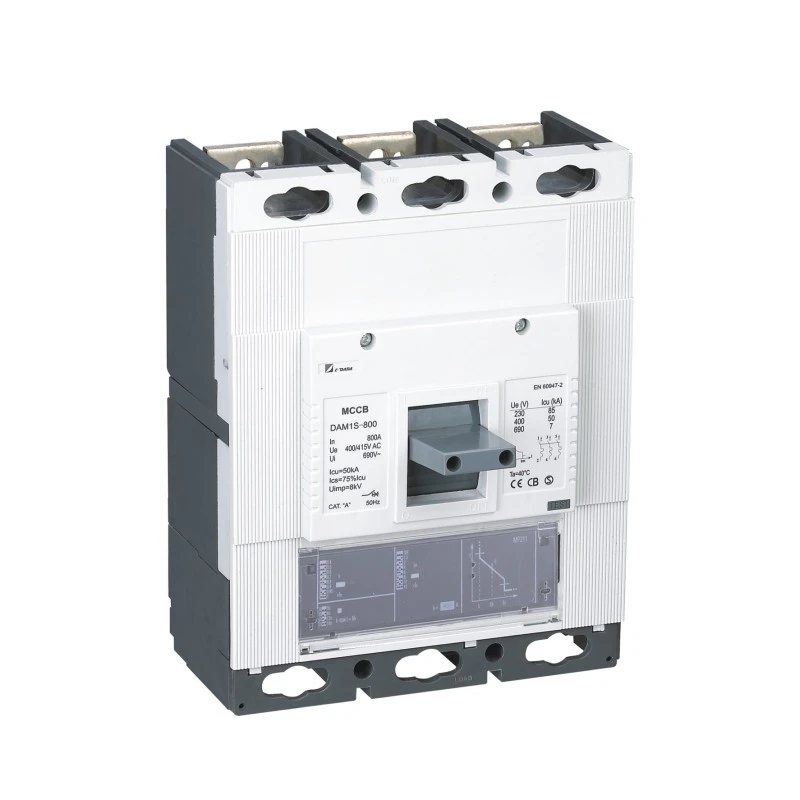

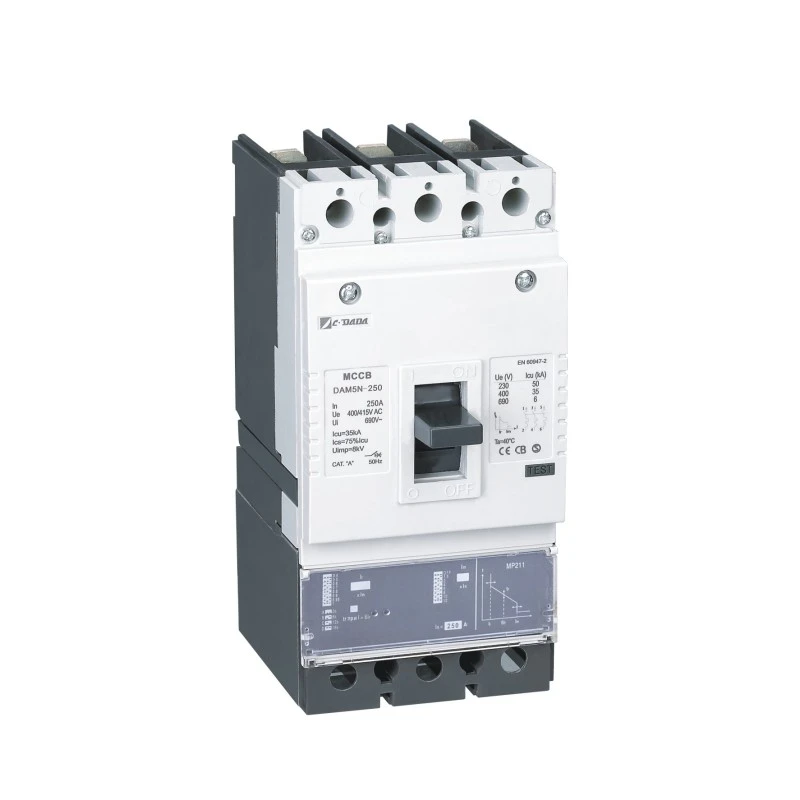

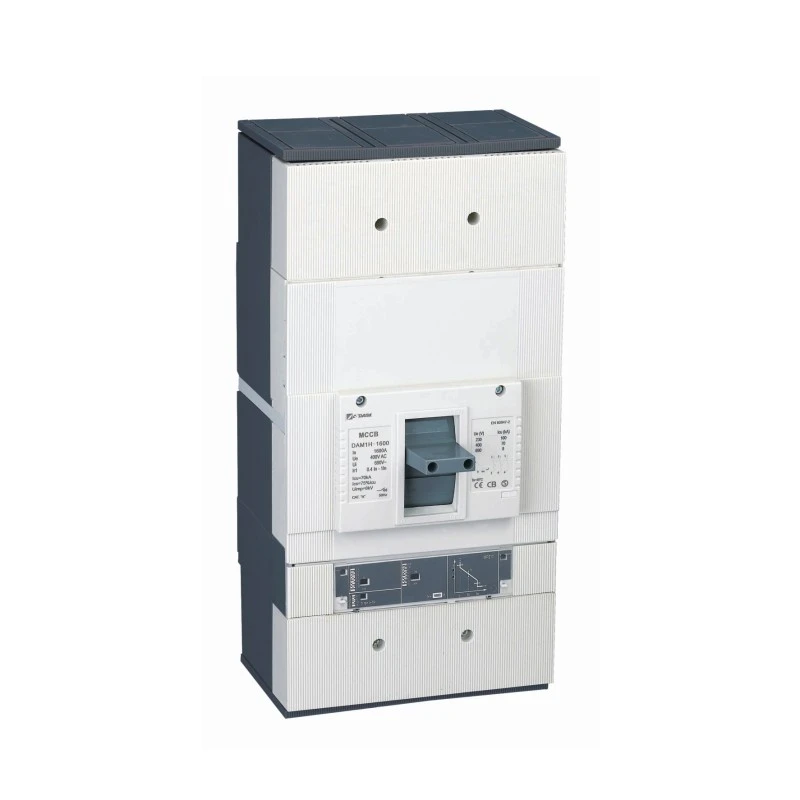

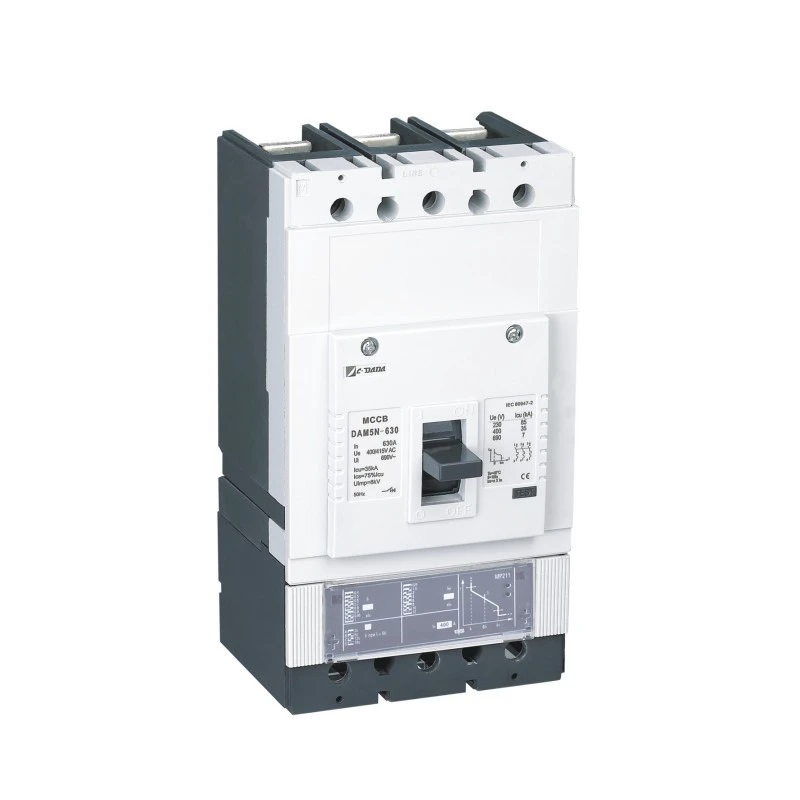

Itanna Iru Molded Case Circuit fifọ

Fun awọn ọna ṣiṣe agbara ode oni n beere fun konge, itetisi, ati igbẹkẹle, Iru Itanna Ohun elo Circuit Didasilẹ nipasẹ Shanghai DADA Electric CO., LTD. kn a titun bošewa ni kekere-foliteji Idaabobo. Ko dabi awọn fifọ oofa igbona ti aṣa, MCCB oloye yii nlo ẹyọ irin-ajo eletiriki kan ti o da lori microprocessor lati fi jiṣẹ deede gaan, idabobo lọwọlọwọ ti siseto — ajesara si awọn iyipada iwọn otutu ibaramu.

Pẹlu awọn eto adijositabulu lati 40% si 100% Ni (gbona) ati 1.5 × si 12 × In (magnetic), o funni ni irọrun ti ko ni ibamu fun isọdọkan eka ni awọn ile-iṣẹ data, awọn ohun ọgbin ile-iṣẹ, awọn ile-iwosan, ati awọn eto agbara isọdọtun. Ti a ṣe iwọn lati 100A si 1600A ni 400V/415V, o dapọ apẹrẹ iwapọ pẹlu iṣẹ ṣiṣe to ti ni ilọsiwaju-ati pẹlu ikuna-ailewu irin-ajo taara lakoko awọn aṣiṣe to gaju, paapaa ti ẹrọ itanna ba kuna.

Awọn pato bọtini

Awoṣe: CDADA DAM2 / DE Series (Iru Itanna Apoti Ayika Apoti ti a ṣe)

iru: Itanna Molded Case Circuit fifọ

Awọn ọpá: 3P / 4P

Iwọn Foliteji (Ue): 400V / 415V AC

Ti won won Lọwọlọwọ (Ninu): 100A - 1600A

Irin ajo Unit: Microprocessor-orisun itanna Tu

Atunṣe Gbona (Ir): 40% - 100% ti In

Atunse Oofa (Im): 1.5× – 12× Ni

Awọn anfani

★ Gbigbo: 100A si 1600A(AC)

★ iwapọ iwọn

★ Eto igbona adijositabulu(40-100%)Ni.

★ Eto oofa adijositabulu(1.5-12times)Ni.

★ Titari si ipese bọtini irin ajo.

★ Lọtọ akọkọ ati arcing awọn olubasọrọ

★ jakejado ibiti o ti ẹya ẹrọ.

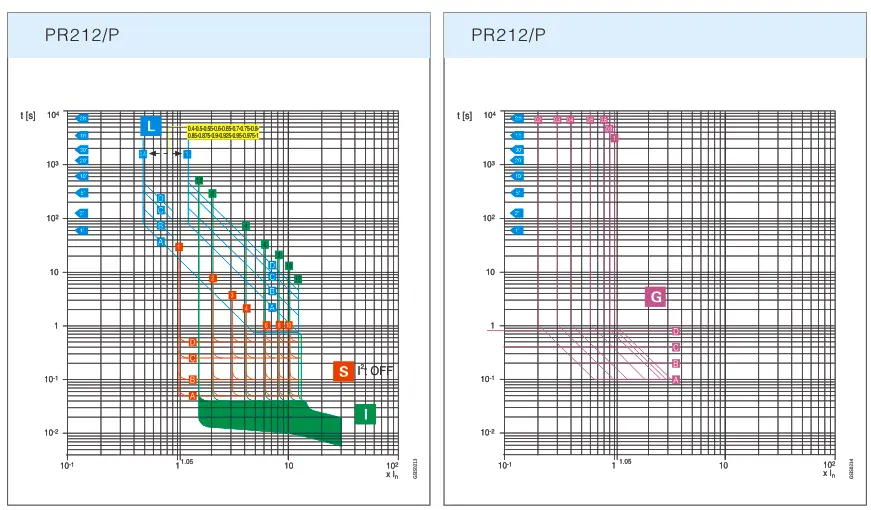

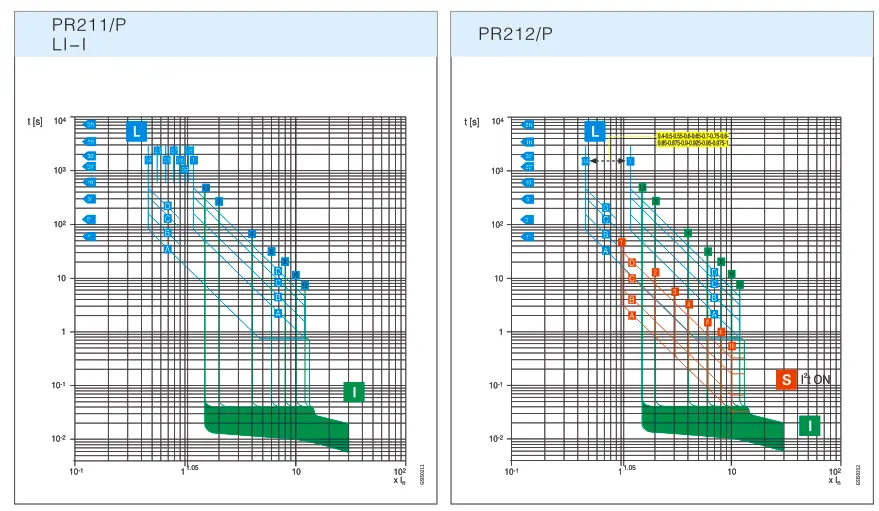

Itanna Tu ti iwa ti tẹ

Itanna paramita

Table 1 PR211 iru

S.Bẹẹkọ.

Išẹ

Eto

Iru

PR211

PR211

PR211

PR211

Factroy atunto

Awọn ọpá

3P

3P

3P

3P

Idiwon (A)

250

400

800

1600

1

L

Akopọ Eto Lọwọlọwọ (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0In

2

Idaduro akoko ni Apọju Eto lọwọlọwọ

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Eto lọwọlọwọ lọwọlọwọ

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

10 Ninu

Table 2 PR212 iru

S.Bẹẹkọ.

Išẹ

Eto

Iru

PR212

PR212

PR212

PR212

Factroy atunto

Awọn ọpá

3P

3P

3P

3P

Idiwon (A)

250

400/630

800

1600

1

L

Akopọ Eto Lọwọlọwọ (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8)xIn

1.0In

2

Idaduro akoko ni Apọju Eto lọwọlọwọ

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Kukuru - Eto Ayika lọwọlọwọ (A)

(1, 2, 3, 4, 6, 8, 10, PA) xIn

(1, 2, 3, 4, 6, 8, 10,PA) xNinu

(1, 2, 3, 4, 6, 8, 10,PA) xNinu

(1, 2, 3, 4, 6, 8, 10,PA) xNinu

6 Ninu

4

Idaduro akoko ni Eto Kukuru Circuit lọwọlọwọ

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Eto lọwọlọwọ lọwọlọwọ

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

(1.5, 2, 4, 6, 8, 10, 12, PA) xNinu

10 Ninu

6

G

Eto Aṣiṣe Ilẹ lọwọlọwọ (A)

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, PA) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, PA) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, PA) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, PA) xIn

1.0In

7

Idaduro akoko ni Eto Aṣiṣe Ilẹ

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

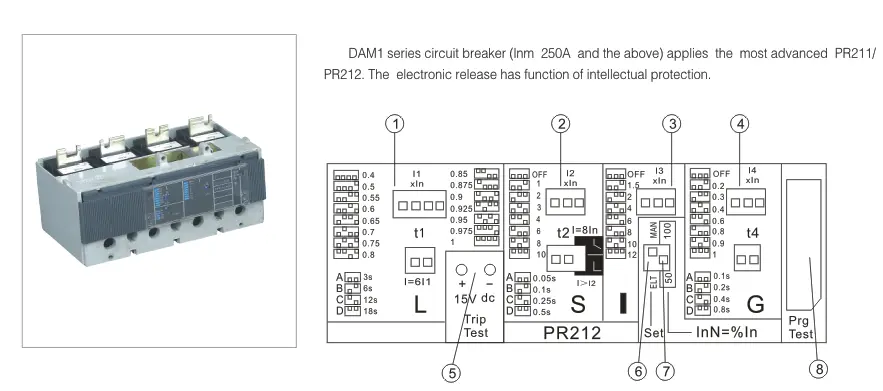

Asayan ti ina tabi itanna sile ṣeto

SET iṣẹ (yipada ELT/MAN)

9

Ti a lo fun eto awọn paramita ti dip yipada ti laini odo

InN =% Ninu, yipada 50/100

10

Socket fun ẹrọ wiwọn asopọ

Iho nronu

Kini idi ti o yan CDADA Itanna MCCB?

★ Oye Otitọ, Kii ṣe Adaṣe nikan
Ohun elo microprocessor nigbagbogbo n ṣe itupalẹ awọn ọna igbi lọwọlọwọ, n fun laaye ni akoko idakeji kongẹ, akoko-pato, ati aabo lẹsẹkẹsẹ-laisi fiseete nitori ooru tabi ti ogbo.

★ Ikuna-ailewu Design
Paapaa ti Circuit itanna ba kuna, latch itanna taara ṣe idaniloju awọn irin ajo fifọ lakoko awọn iyika kukuru ti o lagbara - ipade awọn ibeere apọju ailewu IEC 60947-2.

★ Superior Coordination
Awọn sakani atunṣe jakejado-jakejado (40-100% Ir, 1.5–12× Im) gba isọdọkan pipe pẹlu awọn ẹrọ ti o wa ni oke/isalẹ — idinku awọn agbegbe ijade.

★ Awọn amayederun Imudaniloju iwaju
Ni ibamu pẹlu iyan ibaraẹnisọrọ modulu (Modbus RTU, Profibus) fun Integration sinu Ilé Management Systems (BMS) tabi smati grids.

★ Didara Agbaye, Owo Idije

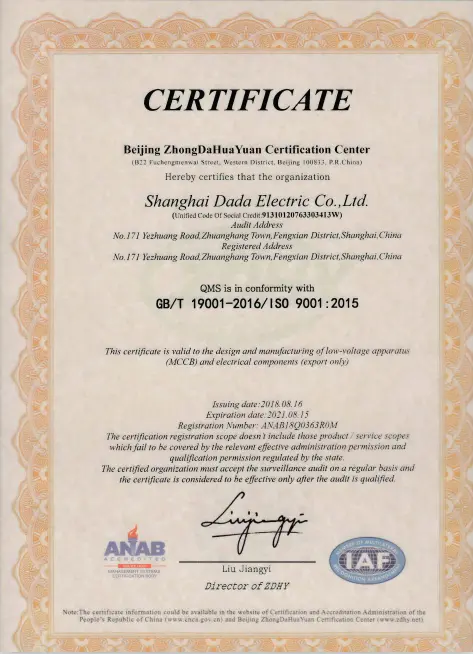

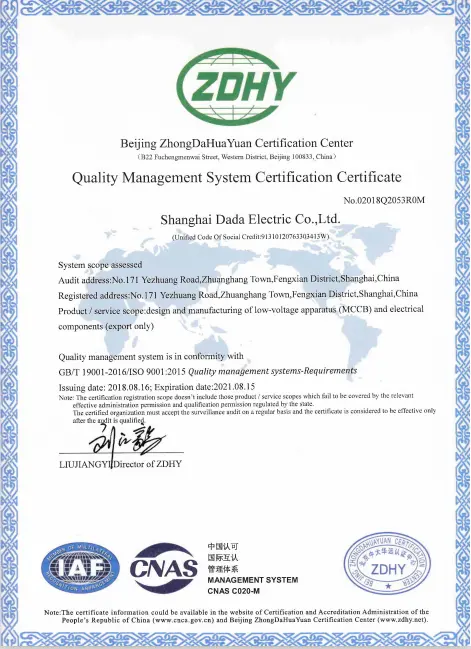

Ti ṣelọpọ labẹ ISO 9001 ni Ilu Shanghai, pẹlu awọn iwe-ẹri kariaye—nfun iṣẹ-ipele Yuroopu ni ṣiṣe idiyele idiyele Asia.

★ A ni ẹgbẹ iyasọtọ ti awọn onimọ-ẹrọ 15 lojutu lori idagbasoke ọja, ilọsiwaju, ati isọdi.

Awọn ohun elo to dara julọ

Awọn ile-iṣẹ data: Dena awọn ikuna idalẹnu pẹlu yiyan tripping gangan

Awọn ile-iwosan: Ṣe idaniloju agbara ailopin fun awọn ọna ṣiṣe atilẹyin igbesi aye

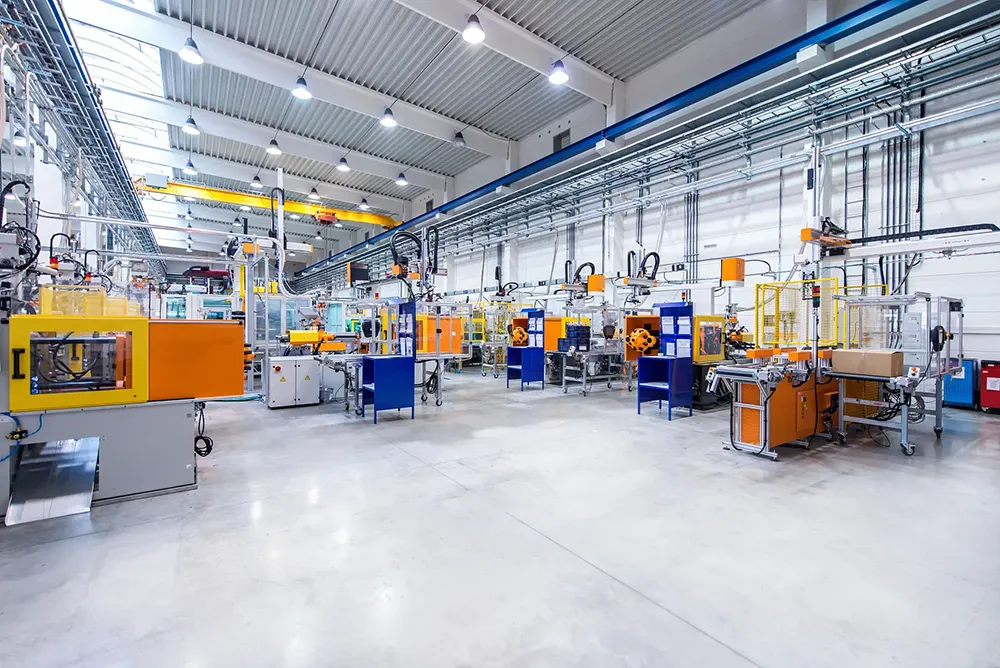

Adaṣiṣẹ ile-iṣẹ: Iṣọkan pẹlu awọn VFDs, awọn ibẹrẹ rirọ, ati awọn roboti

Awọn oko Oorun/Afẹfẹ: Mura si awọn profaili iran oniyipada

Awọn ile Iṣowo Smart: Mu ibojuwo agbara ṣiṣẹ laisi awọn mita afikun

Awọn Ibeere Nigbagbogbo (FAQ)

Q1: Kini o jẹ ki MCCB itanna yatọ si ọkan-oofa kan?

A1: Iru Itanna Iyipada Case Circuit Breakers lo microprocessor lati ṣe itupalẹ lọwọlọwọ ati awọn irin-ajo ti nfa pẹlu pipe to gaju. Wọn ko ni ipa nipasẹ iwọn otutu ibaramu, pese awọn sakani atunṣe to gbooro, ati pe o le pese gedu data fifuye — ko dabi bimetal/solenoid-orisun igbona-oofa.

Q2: Njẹ MCCB itanna 1600A wa ni iṣeto 4-polu bi?

A2: Bẹẹni-gbogbo CDADA itanna MCBs lati 250A si 1600A wa ni mejeji 3P ati 4P awọn ẹya.

Q3: Kini yoo ṣẹlẹ ti ẹrọ irin-ajo itanna ba kuna lakoko kukuru kukuru kan?

A3: Fifọ naa pẹlu afẹyinti ẹrọ: lakoko awọn ṣiṣan aiṣedeede pupọ (> 12× In), latch oofa kan nfa ṣiṣi taara-aridaju aabo paapaa pẹlu ẹrọ itanna offline.

Q4: Ṣe MO le ṣe atẹle awọn iye lọwọlọwọ akoko gidi bi?

A4: Bẹẹni-Ẹka irin-ajo itanna ṣe afihan lẹsẹkẹsẹ, max, min, ati apapọ lọwọlọwọ lori awọn window akoko ti a yan (fun apẹẹrẹ, 24h), wulo fun iṣakoso agbara.

Q5: Kini idi ti o yan CDADA lori awọn ami iyasọtọ MCCB miiran?

A5: CDADA nfunni:

● Iṣatunṣe iwọn-meji otitọ (ọpọlọpọ awọn oludije ni opin Im si ≤10×)

● Ikuna-ailewu ẹrọ afẹyinti (kii ṣe gbogbo awọn MCCB “itanna” ni eyi)

● Ìwọ̀n ìwọ̀nba—bá àwọn pánẹ́ẹ̀tì àjogúnbá mu láìsí àtúnṣe

● Apoti iwe-ẹri agbaye ti o lagbara (ASTA, KEMA, CE)

● Ifowoleri ore-ọrẹ OEM pẹlu atilẹyin imọ-ẹrọ ni Gẹẹsi
