F Olubasọrọ

Pade awọn ibeere agbara ti awọn ọna ṣiṣe ile-iṣẹ nla pẹlu CDADA LC1-F Series F Contactor — Olubasọrọ AC lọwọlọwọ ti o ga julọ ti a ṣe nipasẹ olupese ọjọgbọn Shanghai DADA Electric CO., LTD. to IEC / EN 60947-4-1 awọn ajohunše. Ti a ṣe apẹrẹ fun iṣakoso ọkọ ayọkẹlẹ ti o wuwo ati iyipada agbara, jara LC1-F ṣe atilẹyin awọn ṣiṣan iṣiṣẹ ti a ṣe iwọn lati 115A si 1000A ati awọn iṣakoso 3-phase squirrel-cage Motors titi di 500kW (ni 380-415V, AC-3 ojuse) tabi 670kW ni 690kW.

Wa ni 3-polu tabi 4-pole atunto, o jẹ apẹrẹ fun awọn compressors, awọn ifasoke nla, awọn fifun parẹ, awọn chillers HVAC, ohun elo iwakusa, ati awọn ohun elo itọju omi. Pẹlu AC-3 ati AC-4 iṣamulo-wonsi, o kapa mejeeji boṣewa motor ibere ati demanding ohun elo bi plugging tabi inching. Ifọwọsi pẹlu CE, ti wọn ṣe fun idabobo 690V, ati ṣiṣiṣẹ ni awọn iwọn otutu ibaramu lati –5°C si +40°C, CDADA F Contactor n pese iṣẹ ṣiṣe ore-ọfẹ itọju paapaa ni awọn agbegbe lile to 2000m giga.

Awọn pato bọtini

Series: F Olubasọrọ

Brand: CDADA | Olupese: Shanghai DADA Electric CO., LTD

Standard: IEC/EN 60947-4-1

Iwe-ẹri: CE

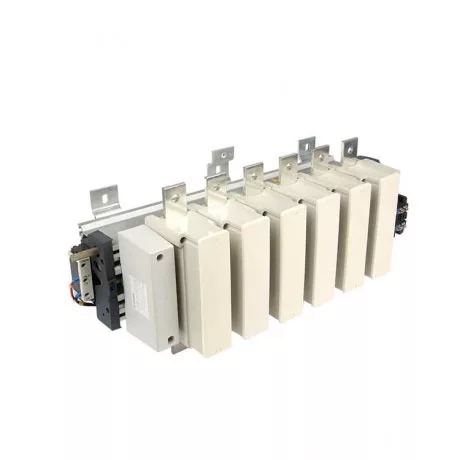

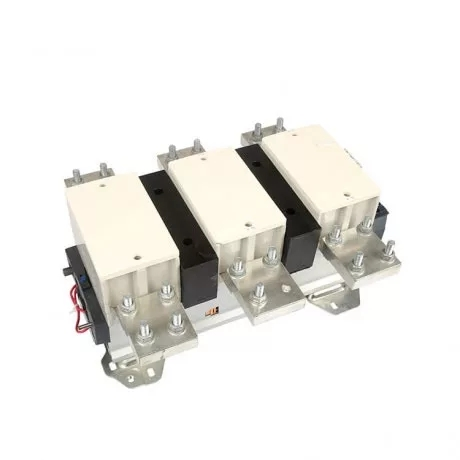

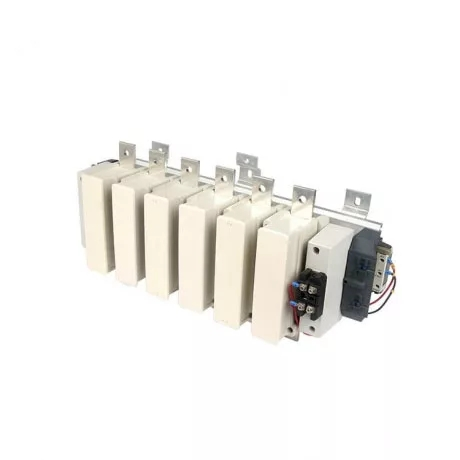

Awọn ọpá: 3P tabi 4P (aṣayan aaye lori ọpọlọpọ awọn awoṣe)

Ti won won Operational Lọwọlọwọ (AC-3): 115A - 1000A

Iṣakoso Agbara mọto (AC-3):

380/415V: 55kW - 500kW

660/690V: 80kW - 670kW

Awọn ẹka iṣamulo: AC-3 (iṣiṣẹ mọto), AC-4 (filọ / inching)

Ti won won idabobo Foliteji: 690V AC

Iwọn Ibaramu: -5°C si +40°C

Giga: ≤ 2000m

Iṣagbesori: Inaro ± 5°, Iṣagbesori Ẹka III

Awọn Foliteji Coil (AC): 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

O pọju Alapapo Alapapo lọwọlọwọ (AC-1): Titi di 1200A

Imọ data dì

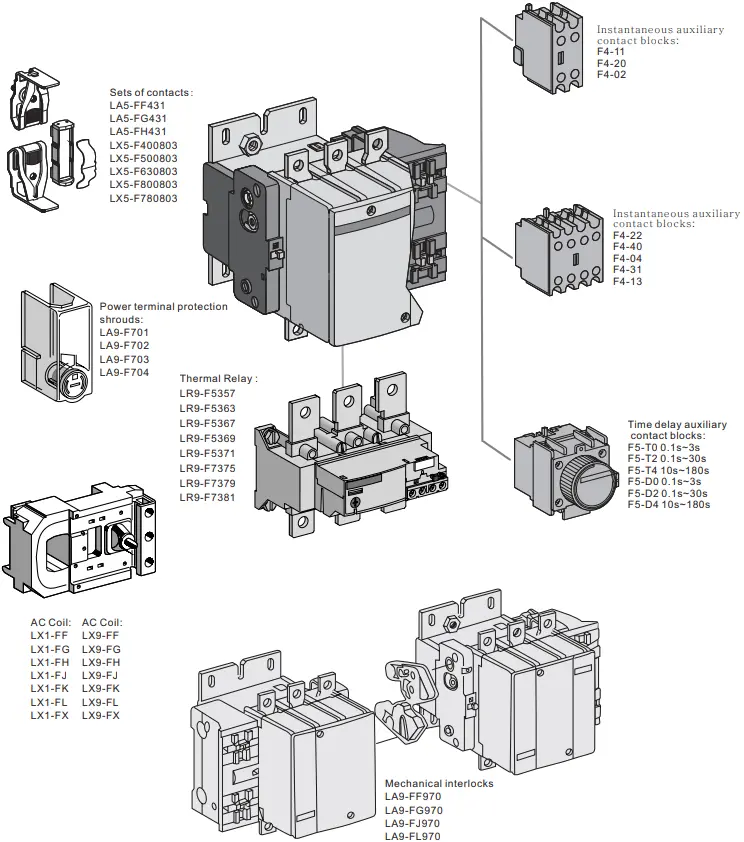

Awọn ẹya ẹrọ

Kí nìdí Yan CDADA F Contactor?

★ Otitọ Eru-ojuse Performance

Mu to 1000A ati 500kW + Motors-pipe fun iwakusa, epo & gaasi, irin ọlọ, ati idalẹnu ilu amayederun.

★ Global Foliteji ibamu

Awọn aṣayan okun AC jakejado (pẹlu 415V, 480V, 600V) ṣe idaniloju isọpọ ailopin ni Ilu Yuroopu, Ariwa Amerika, Aarin Ila-oorun, ati awọn iṣẹ akanṣe Afirika.

★ AC-4 Ti won won fun eletan cycles

Ko dabi awọn olubasọrọ ipilẹ, LC1-F duro fun iyipada loorekoore, braking, ati jogging — ṣe pataki fun awọn cranes, elevators, ati awọn extruders.

★ 4-Polu irọrun

Yipada didoju nigbati o nilo - o dara fun awọn eto TT, awọn eto monomono, tabi awọn ẹru ile-iṣẹ ifura.

★ Logan Gbona & Arc Management

Awọn iyẹwu arc ti o dara julọ ati awọn olubasọrọ ihuwasi-giga ni idaniloju igbesi aye itanna gigun ati iran ooru kekere labẹ fifuye ilọsiwaju.

★ OEM & Panel Akole Ṣetan

Ni ibamu pẹlu boṣewa DIN iṣinipopada tabi iṣagbesori skru, ati awọn orisii ni pipe pẹlu awọn relays apọju igbona CDADA fun awọn solusan ibẹrẹ motor ni kikun.

★ A nawo continuously ni R&D, bojuto agbaye awọn ajohunše ati oja lominu, ki o si ifọwọsowọpọ pẹlu ile ise amoye lati igbesoke wa ọja portfolio.

Awọn ohun elo Aṣoju

Iṣakoso mọto nla: Crushers, rogodo Mills, centrifugal bẹtiroli

Agbara & Awọn ohun elo: Awọn ohun elo omi / omi idọti, awọn oluranlowo ibudo agbara

HVAC: Awọn chillers ile-iṣẹ, awọn ile-iṣọ itutu agbaiye

Mimu ohun elo: Awọn igbanu gbigbe, awọn elevators garawa

Omi & Ti ilu okeere: Awọn ọna ẹrọ ọkọ oju omi ọkọ

Awọn isọdọtun: Hydro ti fa fifalẹ, awọn eto ifunni baomasi

Awọn Ibeere Nigbagbogbo (FAQ)

Q1: Kini iyato laarin D ati F jara contactors?

A1:

● D Series (fun apẹẹrẹ, LC1-D): Fun ina si iṣẹ alabọde (to 95A / 45kW).

● F Series (LC1-F): Fun awọn iṣẹ ile-iṣẹ ti o wuwo (115A-1000A / 55kW-500kW +). → F jara ni awọn ela olubasọrọ ti o tobi ju, fikun arc chutes, ati iduro akoko kukuru ti o ga julọ.

Q2: Ṣe MO le lo olubasọrọ 4P F lati yipada didoju bi?

A2: Bẹẹni. Ẹya 4-pole ngbanilaaye gige asopọ nigbakanna ti gbogbo awọn ipele 3 + didoju-ti a beere ni diẹ ninu aabo tabi awọn ohun elo ipinya (fun apẹẹrẹ, iyipada monomono).

Q3: Ṣe atunṣe apọju tun nilo bi?

A3: Nitootọ. Olubasọrọ nikan yi agbara pada-ko ṣe aabo lodi si awọn ẹru apọju tabi pipadanu alakoso. Papọ nigbagbogbo pẹlu igbona tabi itanna apọju yii fun aabo mọto.

Q4: Kí ni "AC-4 won won" tumo si ni iwa?

A4: O tumo si awọn contactor le kuro lailewu mu motor plugging (yi braking) ati inching (kukuru bursts) -wọpọ ni hoists, presses, ati mixers. Eleyi fa ga lọwọlọwọ surges; AC-4 Rating idaniloju olubasọrọ agbara.

Q5: Kini idi ti o yan CDADA F Contactor lori awọn ami iyasọtọ agbaye?

A5: CDADA nfunni:

● Otitọ IEC 60947-4-1 ibamu pẹlu iwe idanwo

● Ifowoleri ifigagbaga laisi ibajẹ lori awọn olubasọrọ fadaka-alloy tabi idinku arc

● Iwọn folti okun ni kikun fun awọn okeere okeere

● Ayẹwo iyara & ifijiṣẹ olopobobo lati China

● Atilẹyin OEM: isamisi aṣa, iṣakojọpọ, ati awọn faili imọ-ẹrọ (ikede CE, awọn aworan wiring)
