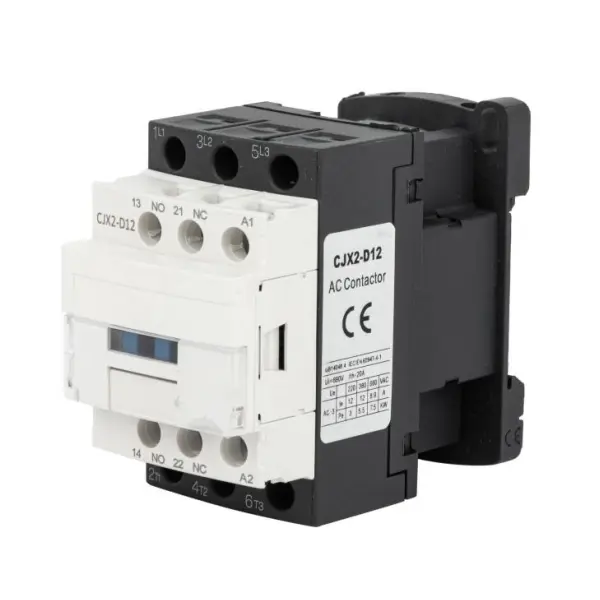

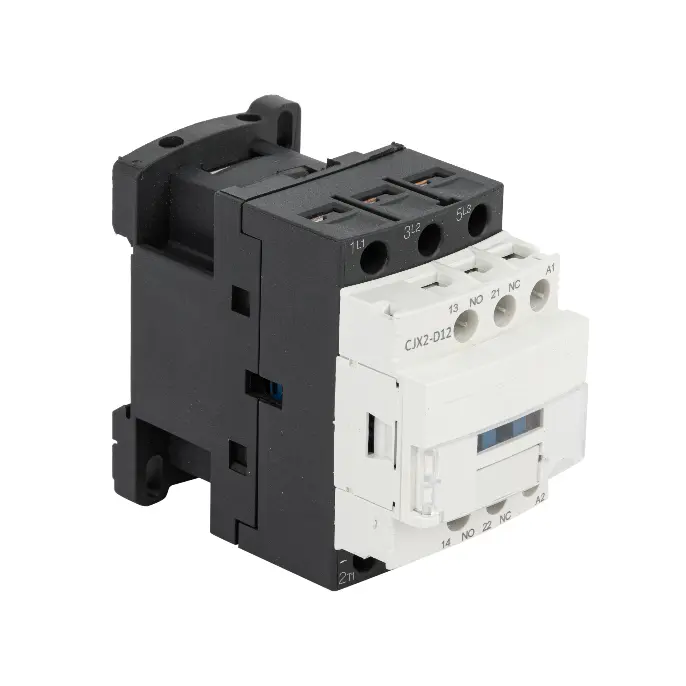

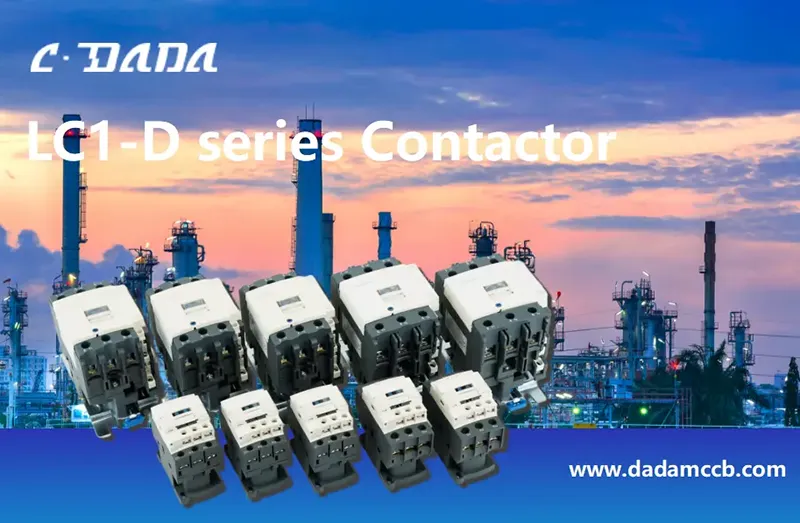

D Olubasọrọ
Model:LC1-D Series
Shanghai DADA Electric jẹ olupese ti o gbẹkẹle ati pe a ni awọn ami iyasọtọ ti ara wa, CDADA. Olubasọrọ D wa (LC1-D Series) jẹ ifọwọsi IEC 60947-4-1, 3P/4P, titi di 620A, AC-3/AC-4 ti wọn ṣe. Wide okun foliteji awọn aṣayan. A ṣeduro ọja yii fun iṣakoso motor & adaṣe ile-iṣẹ, kan si wa fun agbasọ kan.
Engineer gbẹkẹle iṣakoso ọkọ ayọkẹlẹ ati iyipada agbara pẹlu CDADA LC1-D Series D Contactor oluṣeto AC ti o ga julọ ti a ṣe apẹrẹ nipasẹ Shanghai DADA Electric CO., LTD lati pade awọn iṣedede IEC / EN 60947-4-1. Ti a ṣe fun awọn ohun elo ile-iṣẹ, iṣowo, ati awọn ohun elo amayederun, jara LC1-D ṣe atilẹyin 3-pole tabi awọn atunto 4-polu pẹlu awọn ṣiṣan ti o ni iwọn lati 9A si 95A (ti o to 620A ni awọn iyatọ iṣẹ-ṣiṣe ti o wuwo) ati awọn iṣakoso 3-phase squirrel-cage Motors to 45kW (ni 380 AC-4).
Ni ipese pẹlu boṣewa 1NO + 1NC awọn olubasọrọ oluranlọwọ, o ṣepọ laisiyonu pẹlu awọn isunmọ apọju igbona fun aabo mọto ni kikun. Pẹlu awọn aṣayan okun AC tabi DC (24V – 600V), AC-3 ati awọn ẹka iṣamulo AC-4, ati apẹrẹ ti o lagbara ti a ṣe iwọn fun idabobo 690V, CDADA D Contactor n pese iṣẹ ti o gbẹkẹle ni awọn akoko iduro-ibẹrẹ loorekoore, awọn ọna gbigbe, awọn ifasoke, awọn compressors, ati awọn ẹya HVAC-paapaa ni awọn agbegbe ti o nbeere titi di iwọn 40m ati iwọn 40m.
Awọn pato bọtini
Series: D Contactor
Brand: CDADA | Olupese: Shanghai DADA Electric CO., LTD
Standard: IEC/EN 60947-4-1
Iwe-ẹri: CE
Awọn ọpá: 3P tabi 4P (a yan)
Ti won won Ise Lọwọlọwọ (AC-3): 9A – 95A (to 620A ni ibiti o gbooro sii)
Iṣakoso Agbara mọto (AC-3):
380/415V: 4kW - 45kW
660/690V: to 45kW
Awọn ẹka iṣamulo: AC-3 (awọn mọto-ẹyẹ okere), AC-4 (filọ ati inching)
Ti won won idabobo Foliteji: 690V AC
Iwọn Ibaramu: -5°C si +40°C
Giga: ≤ 2000m
Iṣagbesori: Inaro ofurufu ± 5°, Iṣagbesori Ẹka III
Awọn olubasọrọ Iranlọwọ: 1NO + 1NC (boṣewa lori gbogbo awọn awoṣe)
Awọn aṣayan Coil:
Awọn okun AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V
Awọn okun DC: 24V, 36V, 48V, 110V, 220V
Technical Data dì
|
Awọn nkan |
Awoṣe |
LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
LC1-D32 |
|
|
Ọpá |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Olubasọrọ Iranlọwọ |
1KO +1NC |
1KO +1NC |
1KO +1NC |
1KO +1NC |
1KO +1NC |
||
|
Ti won won mora alapapo lọwọlọwọ (A) AC-1 |
20 |
20 |
30 |
40 |
50 |
||
|
Ti won won isẹ lọwọlọwọ (A) |
380/400V |
AC-1 AC-4 |
9 |
12 |
18 |
25 |
32 |
|
3.5 |
5 |
7.7 |
8.5 |
12 |
|||
|
660/690V |
AC-3 AC-4 |
6.6 |
8.9 |
12 |
18 |
21 |
|
|
1.5 |
2 |
3.8 |
4.4 |
7.5 |
|||
|
Foliteji idabobo ti won won (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Agbara iṣakoso 3-alakoso mọto ẹyẹ (AC-3) |
kW |
220/230V AC 380/415V AC 660/690V AC |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
4 |
5.5 |
7.5 |
11 |
15 |
|||
|
5.5 |
7.5 |
10 |
15 |
18.5 |
|||
|
Okun AC (V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
Okun DC (V) |
24,36,48,110,220 |
||||||
|
Awọn nkan |
Awoṣe |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
|
|
Ọpá |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Ologbo Circuit Iranlọwọ:AC-15,Ue=4 15V le=0.95A Ith=10A |
1KO +1NC |
1KO +1NC |
1KO +1NC |
1KO +1NC |
1KO +1NC |
||
|
Ti won won mora alapapo lọwọlọwọ (A) AC-1 |
60 |
80 |
80 |
110 |
110 |
||
|
Ti won won isẹ lọwọlọwọ (A) |
380/400V |
AC-3 AC-4 |
40 |
50 |
65 |
80 |
95 |
|
18.5 |
24 |
28 |
37 |
44 |
|||
|
660/690V |
AC-3 AC-4 |
34 |
39 |
42 |
49 |
49 |
|
|
9 |
12 |
14 |
17.3 |
21.3 |
|||
|
Foliteji idabobo ti won won (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Agbara iṣakoso 3-alakoso mọto ẹyẹ (AC-3) |
KW |
220/230V AC 380/415V AC 660/690V AC |
11 |
15 |
18.5 |
22 |
25 |
|
18.5 |
22 |
30 |
37 |
45 |
|||
|
30 |
37 |
37 |
45 |
45 |
|||
|
Okun AC (V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
Okun DC (V) |
24,36,48,110,220 |
||||||
|
Awọn nkan |
Awoṣe |
LC1-D115 |
LC1-D150 |
LC1-D170 |
LC1-D205 |
LC1-D245 |
|||||||
|
Ọpá |
3 |
3 |
3 |
3/4 |
3/4 |
||||||||
|
Ti won won mora alapapo lọwọlọwọ (A) AC-1 |
200 |
200 |
200 |
275 |
280 |
||||||||
|
Ti won won isẹ lọwọlọwọ (A) |
380/400V |
AC-3 AC-4 |
115 |
150 |
170 |
205 |
245 |
||||||
|
50 |
65 |
70 |
75 |
85 |
|||||||||
|
660/690V |
AC-3 AC-4 |
70 |
90 |
100 |
108 |
115 |
|||||||
|
25 |
32 |
35 |
38 |
40 |
|||||||||
|
Foliteji idabobo ti won won (V AC) |
690 |
690 |
690 |
690 |
690 |
||||||||
|
Agbara iṣakoso 3-alakoso mọto ẹyẹ (AC-3) |
kW |
380/415V AC 660/690V AC |
55 |
75 |
75 |
90 |
110 |
||||||
|
80 |
100 |
100 |
110 |
140 |
|||||||||
|
Okun AC (V) |
110,127,220,240,380,415,440,480,500,600 |
||||||||||||
|
Awọn nkan |
Awoṣe |
LC1-D300 |
LC1-D410 |
LC1-D475 |
LC1-D620 |
||||||||
|
Ọpá |
3/4 |
3/4 |
3/4 |
3/4 |
|||||||||
|
Ti won won mora alapapo lọwọlọwọ (A) AC-1 |
360 |
430 |
580 |
850 |
|||||||||
|
Ti won won isẹ lọwọlọwọ (A) |
380/400V |
AC-3 AC-4 |
300 |
410 |
475 |
620 |
|||||||
|
124 |
150 |
185 |
188 |
||||||||||
|
660/690V |
AC-3 AC-4 |
190 |
235 |
290 |
360 |
||||||||
|
60 |
72 |
85 |
170 |
||||||||||
|
Foliteji idabobo ti won won (V AC) |
690 |
690 |
690 |
690 |
|||||||||
|
Agbara ti iṣakoso 3-alakoso mọto ẹyẹ (AC-3) |
kW |
380/415V AC 660/690V AC |
160 |
200 |
250 |
335 |
|||||||
|
220 |
280 |
330 |
450 |
||||||||||
|
Okun AC (V) |
110, 127,220,240,380,415,440,480,500,600 |
||||||||||||

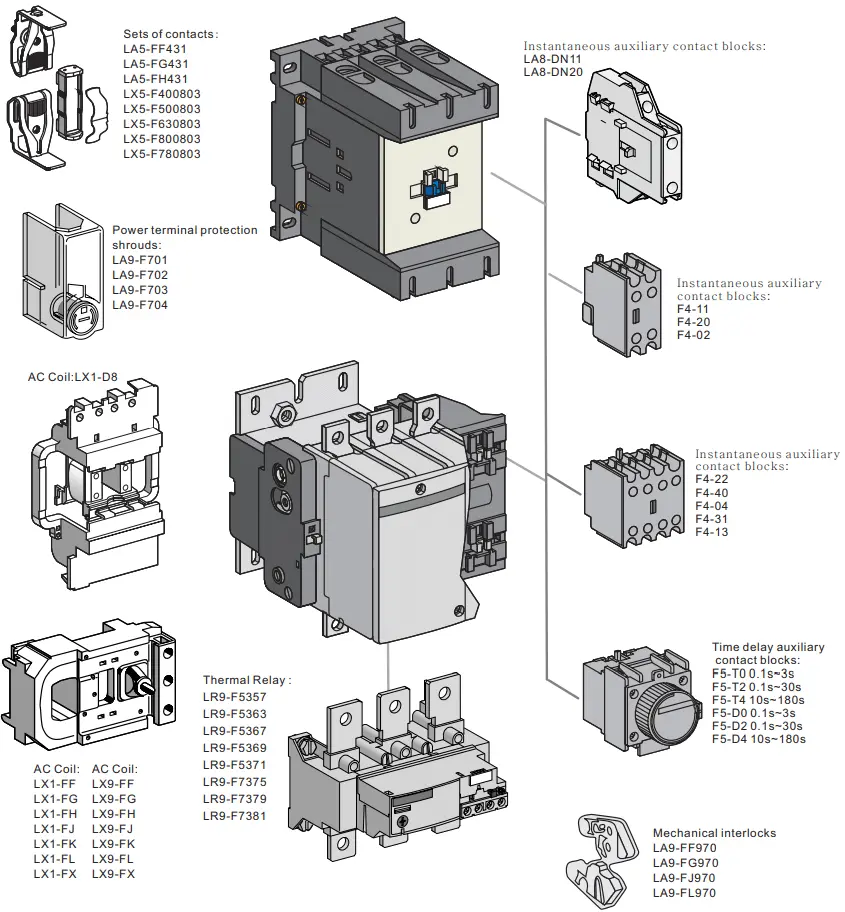

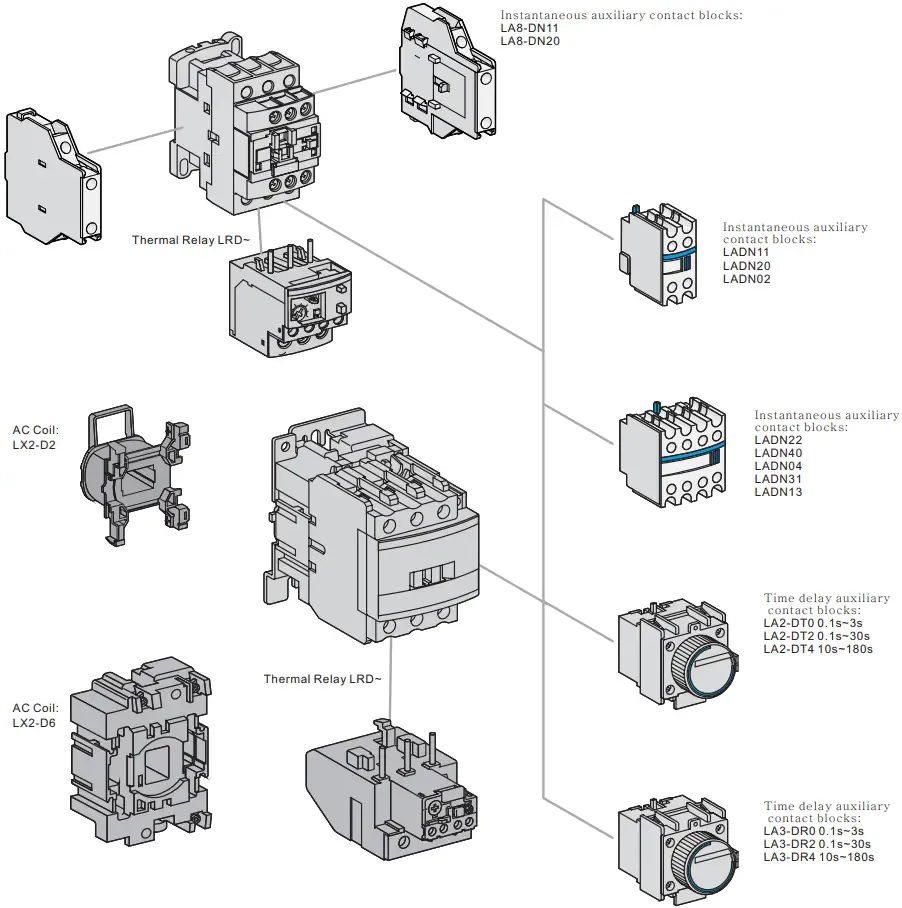

Awọn ẹya ẹrọ
Kí nìdí Yan CDADA D Contactor?
★ Ibamu IEC otitọ
Ti ṣe apẹrẹ ati idanwo si IEC/EN 60947-4-1-aridaju gbigba agbaye ati ibaraenisepo.★ Full Motor Iṣakoso Solusan
So pọ pẹlu CDADA agberu igbona gbigbona fun pipe awọn apejọ olupilẹṣẹ mọto — apọju + kukuru-yika + ipinya.★ Wide Foliteji irọrun
Yan lati 13 AC ati 5 DC awọn foliteji okun-o dara fun awọn iṣẹ akanṣe agbaye tabi awọn panẹli foliteji dapọ.★ Logan fun Eru Ojuse
Ṣe atilẹyin iṣẹ AC-4 (iyipada loorekoore/filọ) — pipe fun awọn cranes, awọn elevators, ati awọn gbigbe.★ Plug-and-Play Integration
Standard 1NO + 1NC awọn olubasọrọ oluranlọwọ jeki interlocking rọrun, ifihan agbara, tabi esi PLC.★ Igbẹkẹle Ipele Iṣẹ
Idanwo fun ifarada itanna giga, resistance olubasọrọ kekere, ati idaduro arc iduro-dindinku akoko idinku.★ Awọn anfani bọtini wa: 1) Awọn iwe-ẹri pipe ti ilu okeere, 2) Agbara OEM / ODM ti o lagbara, 3) Iwọn iṣẹ-ṣiṣe ti o ga julọ, 4) Gbẹkẹle ti o pọju iṣelọpọ agbara, 5) Iriri okeere okeere.
★ Awọn ọja wa ni ifijišẹ ni okeere si Guusu ila oorun Asia, Aringbungbun oorun, South America, Africa, Europe, ati CIS awọn orilẹ-ede, pẹlu kan to lagbara aifọwọyi lori igbanu ati Road awọn ọja.
Awọn ohun elo Aṣoju
Motor Starters: Awọn ifasoke, egeb, compressors, mixers
Awọn ọna HVAC: Chiller & iṣakoso fifun
Automation Iṣẹ: Awọn laini gbigbe, awọn ẹrọ iṣakojọpọ
Isakoso ile: Iṣakoso elevator, awọn banki ina
Agbara & Omi: Itọju omi idọti, awọn ọna irigeson
Awọn ibeere Nigbagbogbo
Q1: Kí ni "D Contactor" tumo si?
A1: "D" ntokasi si awọn jara yiyan (LC1-D) lo agbaye fun yi apọjuwọn, idiwon AC contactor Syeed. Kii ṣe isọdi imọ-ẹrọ — ṣugbọn ti a mọ ni ibigbogbo ni ile nronu fun ibaramu rẹ pẹlu awọn ẹya ẹrọ bii awọn relays apọju ati awọn interlocks ẹrọ.
Q2: Kini iyatọ laarin AC-3 ati AC-4 ojuse?
A2:● AC-3: Ibẹrẹ deede / idaduro ti awọn ọkọ ayọkẹlẹ squirrel-cage (fun apẹẹrẹ, awọn ifasoke, awọn onijakidijagan). Isalẹ wahala.
● AC-4: Pilogi loorekoore, inching, tabi yiyipada (fun apẹẹrẹ, awọn cranes, hoists). Wahala itanna to ga → nbeere awọn olubasọrọ to lagbara diẹ sii. → CDADA LC1-D jẹ iwọn fun awọn mejeeji, ti o jẹ ki o wapọ.
Q3: Ṣe MO le lo olubasọrọ yii laisi iṣipopada apọju bi?
A3: Ko ṣe iṣeduro fun awọn ẹru ọkọ. Olubasọrọ nikan yi agbara pada-ko ṣe aabo lodi si awọn ẹru apọju. Papọ nigbagbogbo pẹlu igbona tabi itanna apọju yii fun aabo mọto.
Q4: Ṣe awọn ẹya 4-polu wa?
A4: Bẹẹni! Gbogbo awọn awoṣe LC1-D ṣe atilẹyin awọn atunto 3P tabi 4P — o dara fun awọn ohun elo didoju tabi awọn ọna ẹrọ 4-waya.
Q5: Kilode ti o yan CDADA lori awọn olubasọrọ D-jara miiran?
A5: CDADA nfunni:● Otitọ IEC 60947-4-1 ibamu pẹlu awọn ijabọ idanwo
● Iwọn foliteji okun ti o tobi ju (pẹlu 415V, 480V, 600V fun okeere)
● Didara to ni ibamu pẹlu awọn olubasọrọ fadaka-alloy ati arc chutes
● Ifowoleri ore-ọfẹ OEM ati titan awọn ayẹwo iyara
● Awọn iwe-ẹri agbaye (CE) ati awọn iwe-aṣẹ Gẹẹsi
