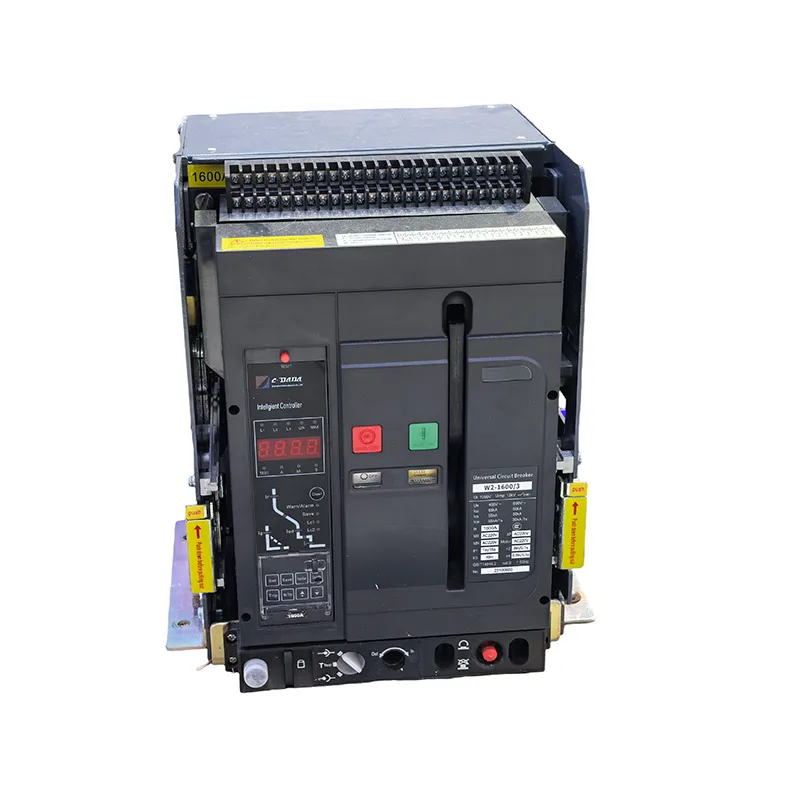

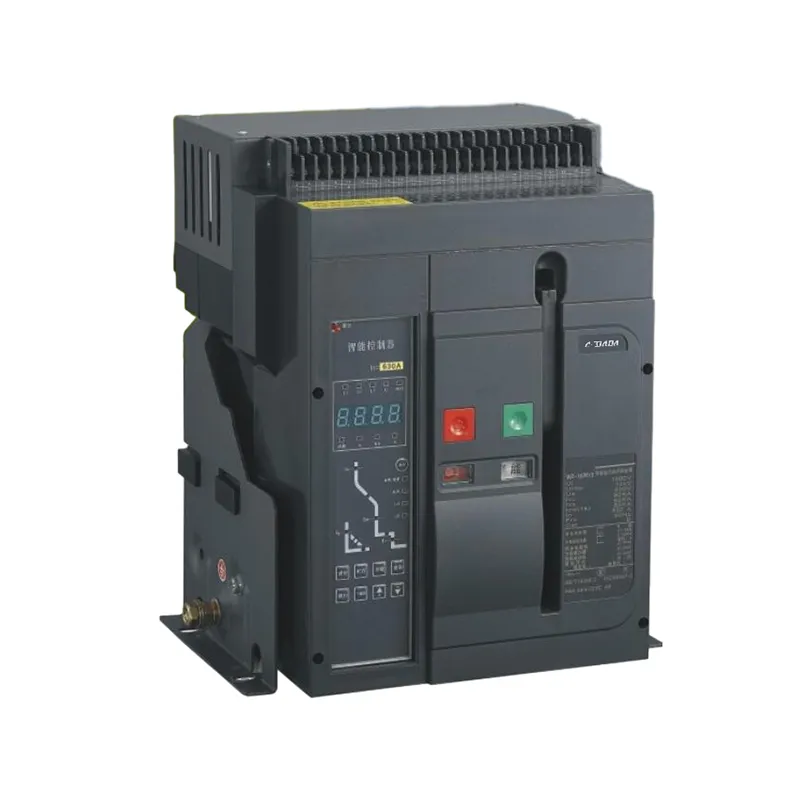

1600A Air Circuit fifọ
Model:DAW2-1600 Series
CDADA jẹ olupese ti o gbẹkẹle ti 1600A Air Circuit Breaker, eyiti o jẹ ifọwọsi CB pẹlu aabo oye, ti a ṣe fun awọn iwulo pinpin agbara ile-iṣẹ ti o wuwo. Ti a ṣe pẹlu awọn paati ipele-giga ati ikole ti o lagbara, ẹrọ fifọ afẹfẹ afẹfẹ jẹ rọrun lati ṣiṣẹ ati ṣetọju, ni ibamu lainidi sinu awọn eto agbara ile-iṣẹ. O jẹ yiyan oke fun osunwon ati rira OEM, jiṣẹ iduroṣinṣin, iṣẹ igbẹkẹle fun gbogbo awọn ibeere aabo agbara ile-iṣẹ.

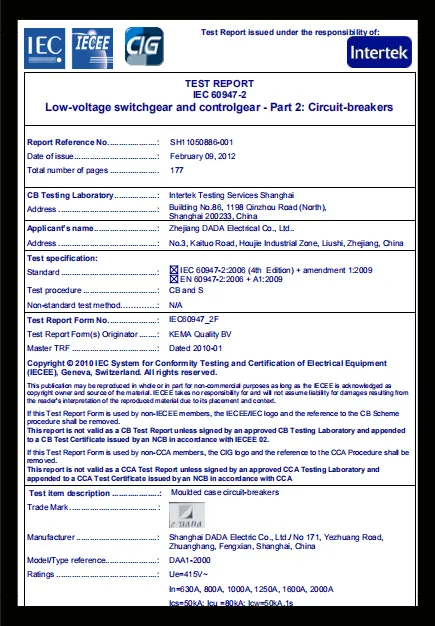

CDADA jẹ ile-iṣẹ alamọdaju ti o le funni ni 1600A Air Circuit Breaker (DAW2-1600 Series), apẹrẹ fun rira olopobobo, pẹlu iwe-ẹri CB ati ibamu pẹlu awọn iṣedede IEC60947-2. O ṣiṣẹ fun AC 50Hz, awọn nẹtiwọọki 690V, ti o funni ni apọju kongẹ, kukuru kukuru, ailagbara ati aabo jijo.
Ti a ṣe fun lilo ile-iṣẹ, o ṣe atilẹyin ibojuwo latọna jijin, rọrun lati fi sori ẹrọ, ati pe o baamu awọn ibeere awọn olupin kaakiri fun ẹrọ iyipada kekere-foliteji ọlọgbọn ti o tọ.
Apejuwe Ọja (Ipato)
Awoṣe: DAW2-1600 Series
Ti won won fireemu Lọwọlọwọ (Inm): 1600A
Ti won won lọwọlọwọ (Ninu): 200A / 400A / 630A / 800A / 1000A / 1250A / 1600A
Ti won won idabobo Foliteji (Ui): 690V
Ti won won Foliteji Ṣiṣẹ (Ue): 400V / 690V
Ibamu Awọn ajohunše: IEC 60947-2
Awọn ẹya Idaabobo: Apọju, Circuit Kukuru, Undervoltage, Aṣiṣe Ilẹ (pẹlu oluyipada jijo aṣayan)
Ibaraẹnisọrọ: Ṣii Ilana fun iṣọpọ ọkọ akero (ṣe atilẹyin awọn iṣẹ “latọna mẹrin”)
Aami ipinya: "-x_"
|
Awoṣe |
DAW2-1600 |
|||||||
|
Ti won won lọwọlọwọ ti ikarahun fireemu ite Inm (A) |
1600 |
|||||||
|
Ti won won ln (A) lọwọlọwọ |
200,400,500,630,800,1000,1250,1600 |
|||||||
|
Iwọn foliteji iṣẹ ṣiṣe Ue(V) |
AC400, AC690 |
|||||||
|
Igbohunsafẹfẹ iṣẹ (Hz) |
50Hz/60Hz |
|||||||
|
Foliteji idabobo Ui(V) ti won won |
1000 |
|||||||
|
Foliteji ifarada ikolu ti a ṣe iwọn Uimp(kV) |
12 |
|||||||
|
Foliteji ifarada igbohunsafẹfẹ agbara U(V) 1min |
3500 |
|||||||
|
Nọmba ti |
3,4 |
|||||||
|
Iwọn N-pole lọwọlọwọ Ninu (A) |
100% cln |
|||||||
|
Lo Ẹka |
GB14048.2 |
B |
||||||
|
Ti won won aropin kukuru bibu agbara Circuit fifọLcu (kA)(iye to munadoko) |
AC400V |
65 |
||||||
|
AC690V |
50 |
|||||||
|
|
AC400V |
55 |
||||||
|
Ti won won kukuru Circuit fifọ agbara |
AC690v |
42 |
||||||
|
LCS (kA)(iye ti o munadoko) |
AC400V |
143 |
||||||
|
AC690V |
105 |
|||||||
|
Ti won won kukuru Circuit asopọ agbara |
AC400V |
50 |
||||||
|
AC690v |
42 |
|||||||
|
Akoko fifọ ni kikun (ko si idaduro afikun) (MS) |
25 |
|||||||
|
Akoko ipari (MS) |
O pọju 70 |
|||||||
|
Igbesi aye itanna (awọn akoko) |
AC400V |
ln=200A~630A |
1500 |
|||||
|
Ninu = 800A ~ 1250A |
1000 |
|||||||
|
Ninu = 160OA |
800 |
|||||||
|
AC690v |
ln=200A~630A |
100o |
||||||
|
ln=80OA~1250A |
650 |
|||||||
|
ln=1600A |
500 |
|||||||
|
Igbesi aye ẹrọ (awọn akoko) |
Itọju ọfẹ |
15000 |
||||||
|
Ṣe itọju kan |
20000 |
|||||||
|
Awọn iwọn (iwọn X giga X ijinle) mm |
Iru ti o wa titi |
3P |
260×310×240 |
Akọpamọ iru |
3P |
275×345×330 |
||
|
4P |
330×310×240 |
|
4P |
345×345×330 |
||||
Ẹya Ọja Ati Ohun elo

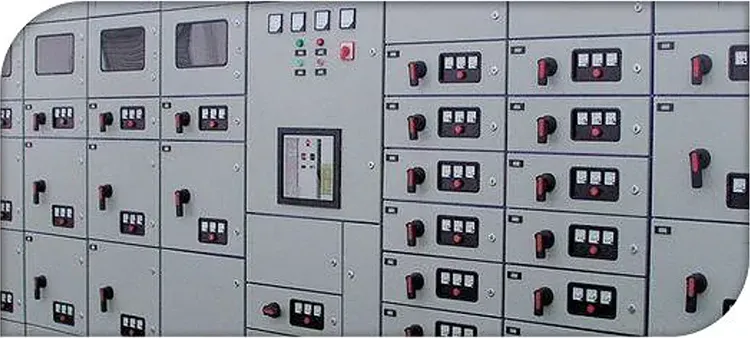

CDADA 1600A Air Circuit Breaker tayọ ni awọn ohun elo ti o wuwo bii awọn ohun elo agbara, awọn ile-iṣẹ data, ati awọn amayederun ilu. Alakoso oye rẹ jẹ ki iyasoto aṣiṣe deede, idinku akoko isunmi-pataki fun awọn ti onra ni iṣaju iduroṣinṣin akoj. Pẹlu ibi ipamọ IP20 ti o ni iwọn ati apẹrẹ modular, o rọrun lati ṣepọ sinu awọn panẹli switchgear ti o wa tẹlẹ.
Awọn anfani pataki:
★ 5-odun operational igbesi aye labẹ kikun fifuye
★ Idaabobo jijo iyan fun aabo imudara
★ Ṣe atilẹyin aabo mọto (≤1600A awọn awoṣe)
★ Agbara iyipada loorekoore fun ibẹrẹ motor
Awọn alaye iṣelọpọ
Ti ṣelọpọ nipasẹ SHANGHAI DADA ELECTRIC CO., LTD., Gbogbo 1600A ACB n gba idanwo igbona lile ati dielectric. Laini iṣelọpọ adaṣe adaṣe ṣe idaniloju ± 2% ifarada lori awọn eto irin-ajo — ti n ṣe ju awọn oludije jeneriki lọ. Ile alloy aluminiomu n pese itusilẹ ooru ti o ga julọ, lakoko ti awọn olubasọrọ ti a fi fadaka ṣe idaniloju resistance kekere lori akoko.
Ti a ṣe afiwe si awọn fifọ boṣewa, awọn ẹya CDADA nfunni:
★ 30% yiyara esi si awọn aṣiṣe ilẹ
★ imurasilẹ iwe-ẹri meji (CE lori ibeere)
★ Aṣa aami & iṣakojọpọ fun awọn ti onra aami-ikọkọ
Kini idi ti Dada's 1600A Air Circuit Breaker jade awọn oludije
Nigbati a ba ṣe afiwe pẹlu awọn oludije, ọja wa nfunni ni awọn anfani ọtọtọ.
Iye owo diẹ sii - munadoko laisi irubọ didara.
Akoko idahun yiyara ni ọran ti awọn aṣiṣe itanna.
A okeerẹ lẹhin - tita iṣẹ eto.
Anfaani: Ṣe iranlọwọ fun awọn alabara lati ṣe ipinnu alaye, yiyan ọja kan ti o ṣajọpọ iṣẹ ṣiṣe giga, igbẹkẹle, ati idiyele - ṣiṣe.

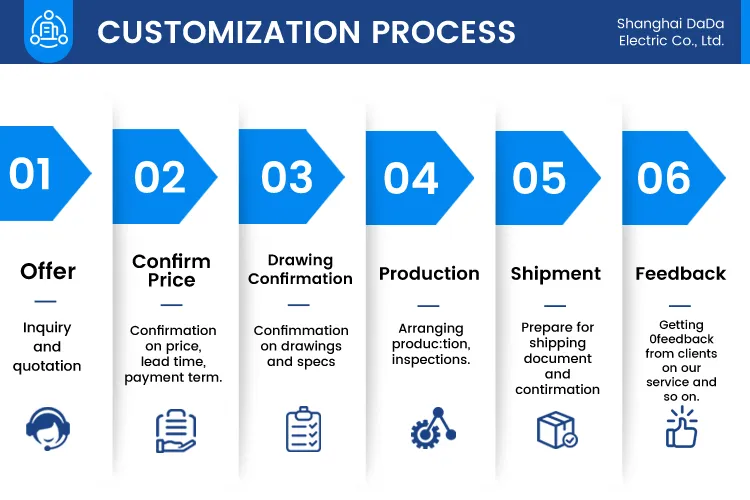

Ni Shanghai DADA Electric CO., Ltd, a loye pe gbogbo iṣowo ni awọn ibeere alailẹgbẹ. Ipese isọdi wa ti ṣe apẹrẹ lati fun ọ ni ojutu ti ara ẹni. Boya o nilo ọja kan pẹlu awọn ẹya kan pato, awọn eroja iyasọtọ, tabi iṣẹ ṣiṣe, ẹgbẹ wa ti ṣetan lati ṣe iṣẹ ipese aṣa kan fun ọ.
