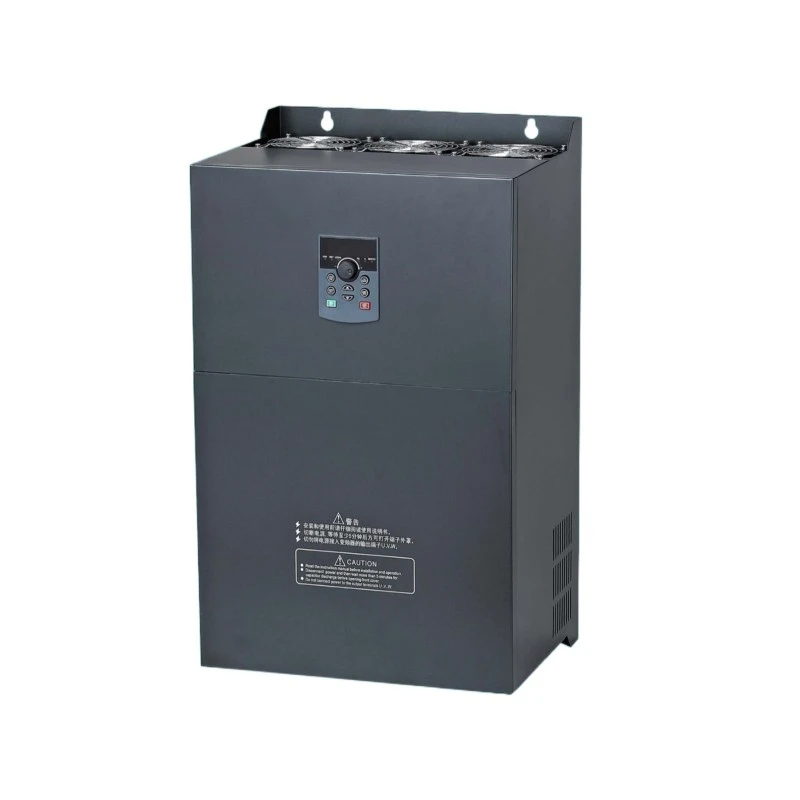

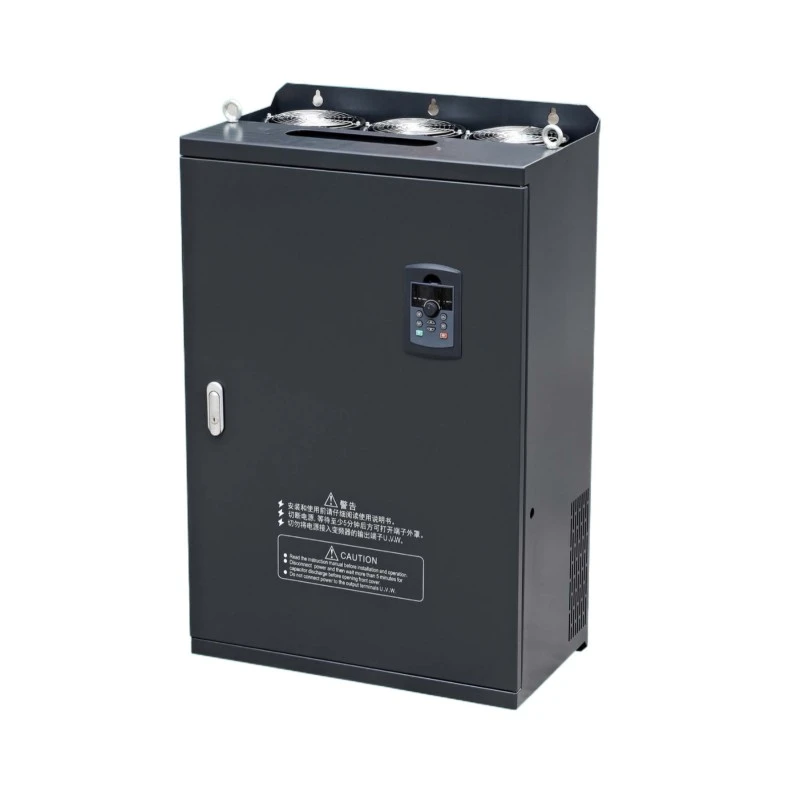

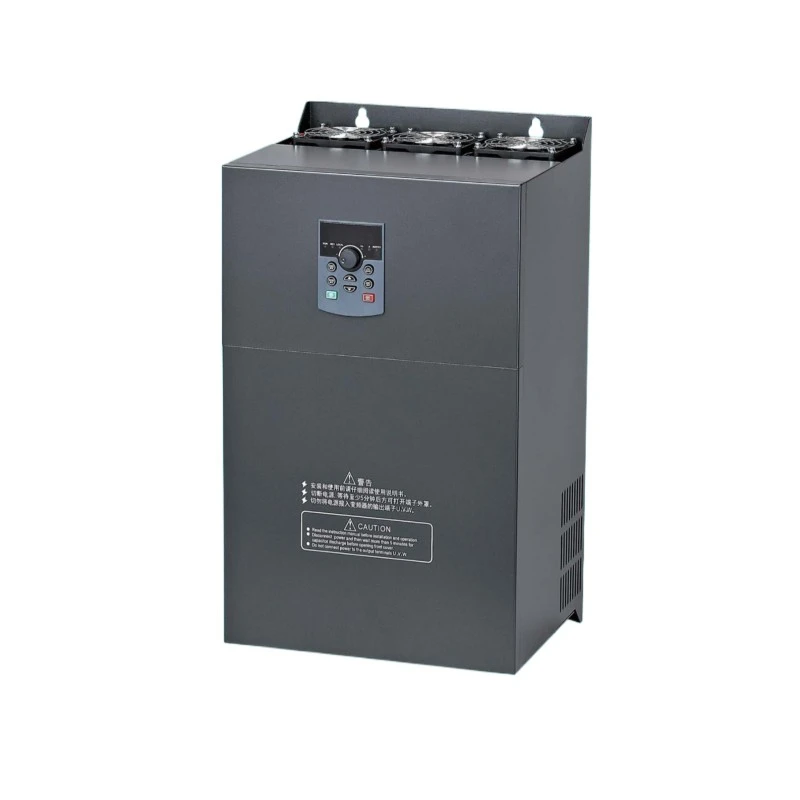

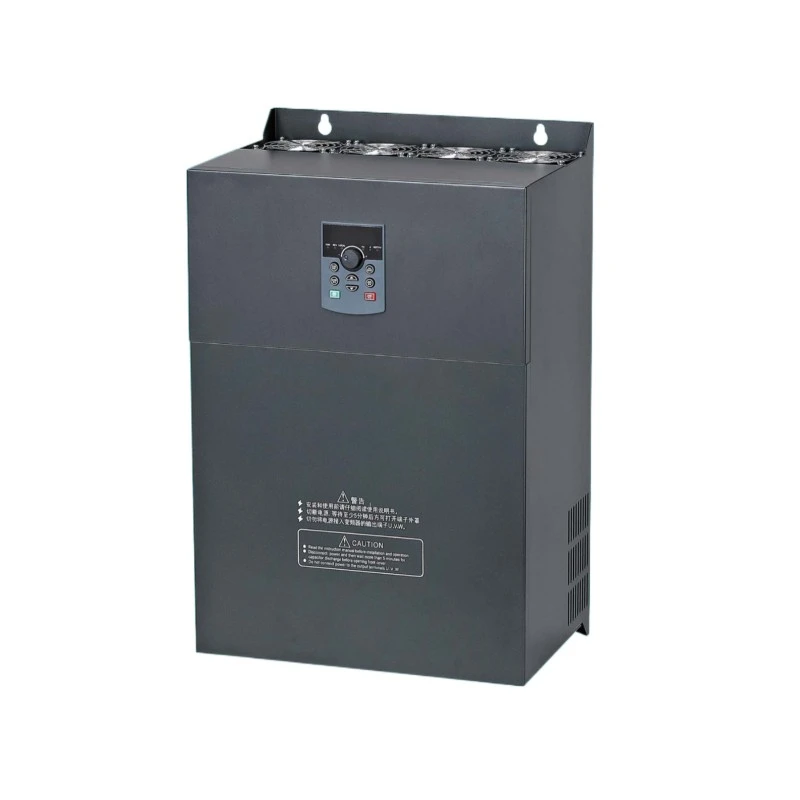

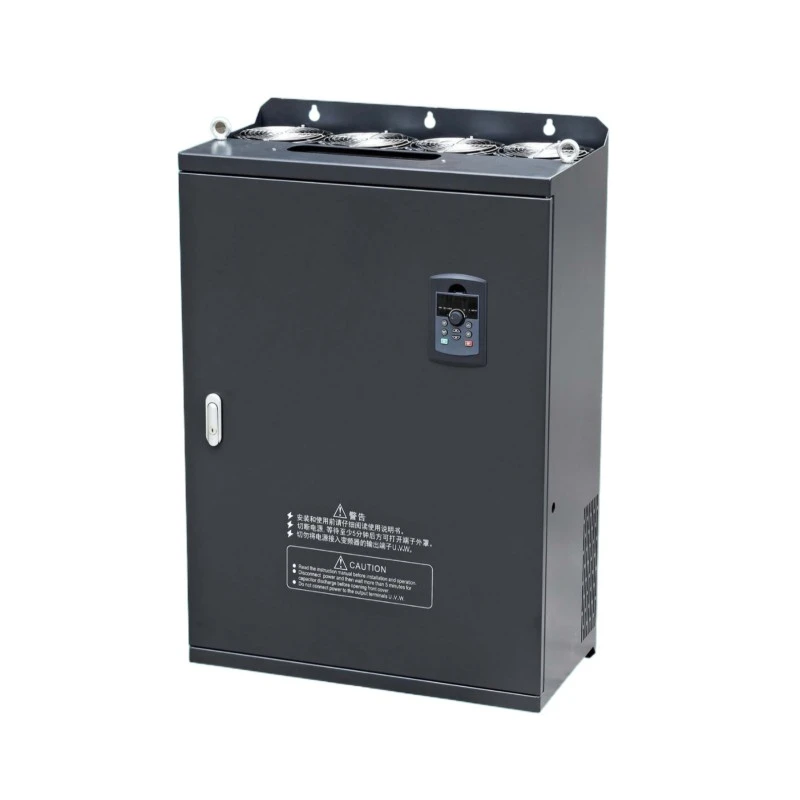

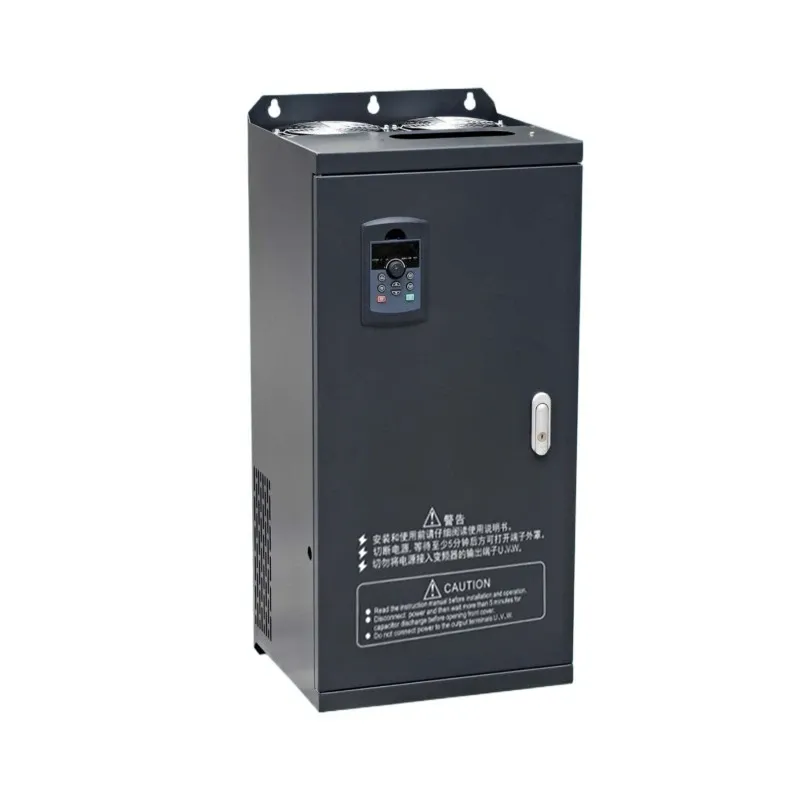

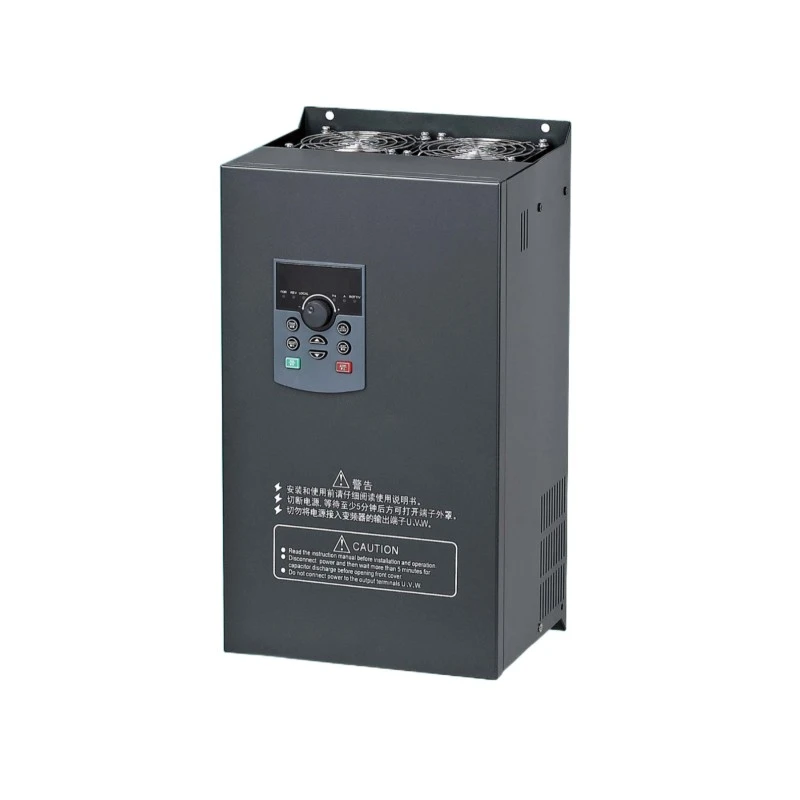

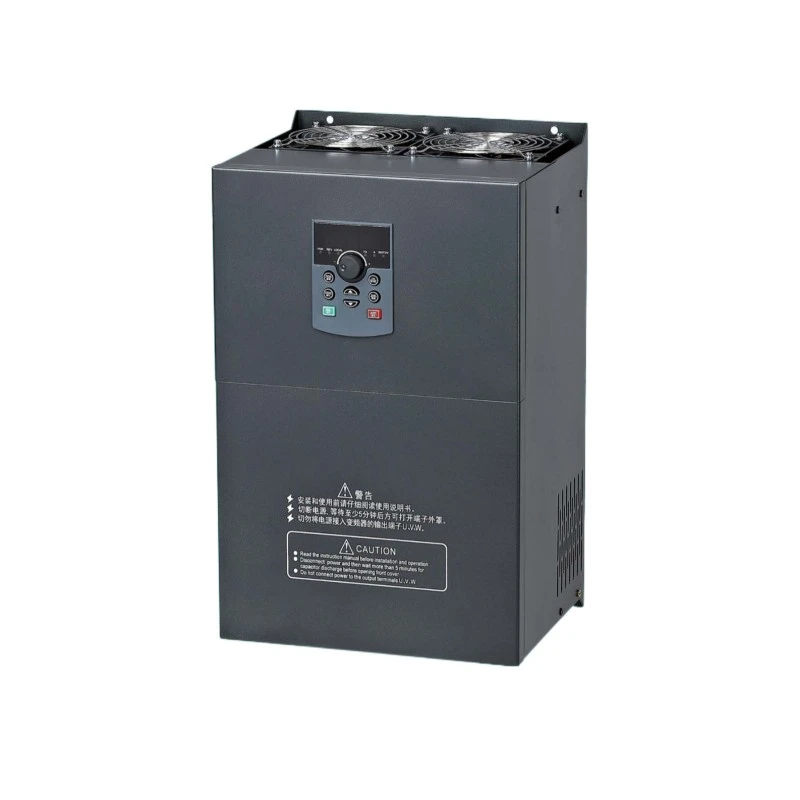

DC ẹrọ oluyipada 0,75kW-630kW

Pade CDADA Industrial DC Inverter 0.75kW-630kW — iru ẹrọ wiwakọ mọto iṣẹ giga kan fun ibeere awọn ohun elo adaṣe ile-iṣẹ. Ti a ṣe lori iṣelọpọ iṣakoso DSP ti ilọsiwaju (Oluṣakoso Ifihan oni-nọmba oni-nọmba), oluyipada yii n pese iṣakoso fekito otitọ pẹlu tabi laisi esi kooduopo, ṣiṣe iyara kongẹ, iyipo, ati iṣẹ igbohunsafẹfẹ kekere ti ko baamu nipasẹ awọn awakọ V/F aṣa.

Ti a ṣe apẹrẹ fun iyipada, oluyipada CDADA ṣe atilẹyin awọn ipo iṣakoso mẹrin:

Vector Iṣakoso lai PG (SVC) - sensorless, apẹrẹ fun julọ ise èyà

Iṣakoso Vector pẹlu PG (VC) - pipe-lupu pipe fun awọn cranes, elevators, tabi awọn ọpa CNC

Iṣakoso V/F – rọrun, logan fun awọn onijakidijagan ati awọn ifasoke

Torque Iṣakoso – pipe fun yiyi, unwinding, ati ẹdọfu awọn ọna šiše

Pẹlu iṣatunṣe adaṣe ti awọn aye moto, iwọn iyara 1: 1000 (pẹlu koodu koodu), ati 180% iyipo ti o bẹrẹ ni 0.5Hz nikan, o tayọ ni awọn ohun elo ti o nilo esi iyara, iṣẹ iyara kekere, ati mimu fifuye agbara-gẹgẹbi awọn extruders, hoists, awọn ẹrọ asọ, awọn compressors, ati awọn eto gbigbe.

Ni ipese pẹlu RS485 / Modbus, imọ-jinlẹ PLC ti a ṣe sinu (awọn ilana-igbesẹ 16), ilana PID, gigun-ikuna agbara-nipasẹ, ati atunṣe igbohunsafẹfẹ ti ngbe laifọwọyi (1-15kHz), oluyipada CDADA ṣe idaniloju ṣiṣe agbara ti o pọju, ilọsiwaju iṣelọpọ, ati isọdọkan irọrun sinu awọn ile-iṣelọpọ smati ode oni.

Key Technical Awọn ẹya ara ẹrọ

Kini idi ti Yan CDADA DC Inverter 0.75kW-630kW?

■ True Industrial Vector Performance

Kii ṣe VFD nikan-nfiranṣẹ iṣakoso iru-iṣẹ laisi idiyele servo, o ṣeun si algorithm vector ti o da lori aaye.

■ Ibora Agbara jakejado ni Platform Kan

Lati awọn ifasoke kekere (0.75kW) si awọn ọlọ nla (630kW) — famuwia kanna, ọgbọn siseto kanna.

■ Smart Automation Ṣetan

PLC ti a ṣe sinu + PID + Modbus dinku iwulo fun awọn olutọsọna ita — iye owo eto kekere & ifẹsẹtẹ.

■ Logbo fun Awọn Ayika Harsh

Apẹrẹ fun lilọsiwaju 24/7 isẹ ni eruku, gbona, tabi itanna alariwo eweko.

■ Ibamu Agbaye

Ṣe atilẹyin titẹ sii 380V/480V/690V AC, pẹlu awọn iyatọ ọkọ akero DC fun batiri tabi isọdọtun isọdọtun.

■ Olumulo-Centric Design

Bọtini foonu latọna jijin, awọn iwe aṣiṣe ti ko o, ati iṣatunṣe-laifọwọyi-bọtini kan jẹ ki iṣẹ ṣiṣe ati itọju rọrun.

Awọn ohun elo Aṣoju

★ Mu ohun elo: Awọn gbigbe, awọn akopọ, AGVs

★ Plastics & Roba: Extruders, gbigbẹ mimu, awọn kalẹnda

★ Ṣiṣe Irin: Awọn ọlọ ọlọ, awọn laini okun, awọn ọpa CNC

★ Textiles: Yiyi awọn fireemu, looms, winders

★ Omi & HVAC: Awọn ifasoke to gaju pẹlu iṣakoso titẹ PID

★ Mining & Simenti: Crushers, egeb, slurry bẹtiroli

Awọn Ibeere Nigbagbogbo (FAQ)

Q1: Ṣe eyi jẹ oluyipada oorun tabi awakọ ọkọ ayọkẹlẹ ile-iṣẹ?

A1: Eleyi jẹ ẹya ise DC-to-AC motor inverter (VFD) — o ni atunse DC akero tabi AC mains sinu dari 3-alakoso AC lati wakọ Motors. Kii ṣe oluyipada oorun / akoj-tai.

Q2: Kí ni "DC inverter" tumo si nibi?

A2: Oro naa n tọka si agbara rẹ lati ṣiṣẹ lati orisun agbara DC (fun apẹẹrẹ, ọkọ ayọkẹlẹ DC ti o wọpọ, batiri, tabi ipese atunṣe). Pupọ awọn awoṣe tun gba igbewọle AC boṣewa — ọna asopọ DC inu n ṣe agbara ipele oluyipada.

Q3: Ṣe Mo nilo kooduopo fun iṣakoso fekito?

A3: Rara-fun ọpọlọpọ awọn ohun elo, SVC (fectorless sensọ) pese iṣẹ ti o dara julọ. Lo VC (pẹlu PG) nikan nigbati o nilo deede iyara ultra-giga (<0.01%) tabi yiyi-iyara odo ni kikun (fun apẹẹrẹ, awọn elevators).

Q4: Ṣe o le rọpo awakọ ABB / Siemens / Yaskawa atijọ mi?

A4: Bẹẹni. Awọn oluyipada CDADA ṣe atilẹyin onirin iṣakoso boṣewa, Modbus, ati awọn ẹya paramita ti o jọra. A pese awọn itọsọna itọkasi-agbelebu ati awọn irinṣẹ ijira paramita fun aropo lainidi.

Q5: Kini idi ti o yan CDADA lori awọn ami iyasọtọ agbaye?

A5: CDADA gbejade:

● 90% + iṣẹ ti awọn ami iyasọtọ Ere ni 60-70% idiyele

● Ifijiṣẹ yiyara & atilẹyin imọ-ẹrọ agbegbe ni awọn ọja ti n ṣafihan

● Awọn ẹya ara ẹrọ mojuto kanna: atunṣe aifọwọyi, iṣakoso iyipo, Modbus, PLC

● Awọn aṣayan isọdi (OEM iyasọtọ, famuwia pataki)

● Ti fihan ni awọn aaye ile-iṣẹ 10,000+ ni agbaye
