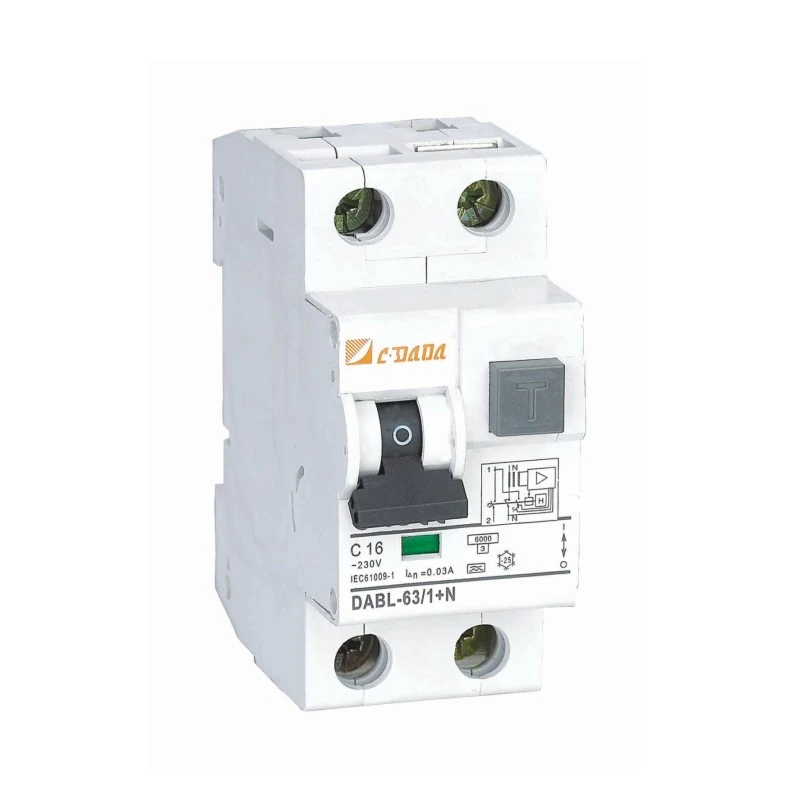

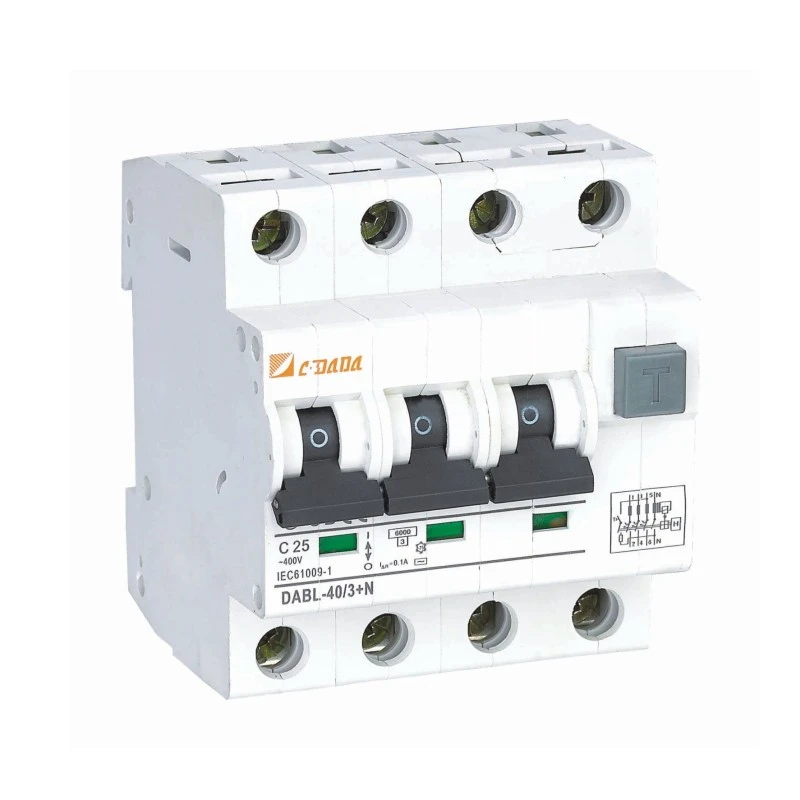

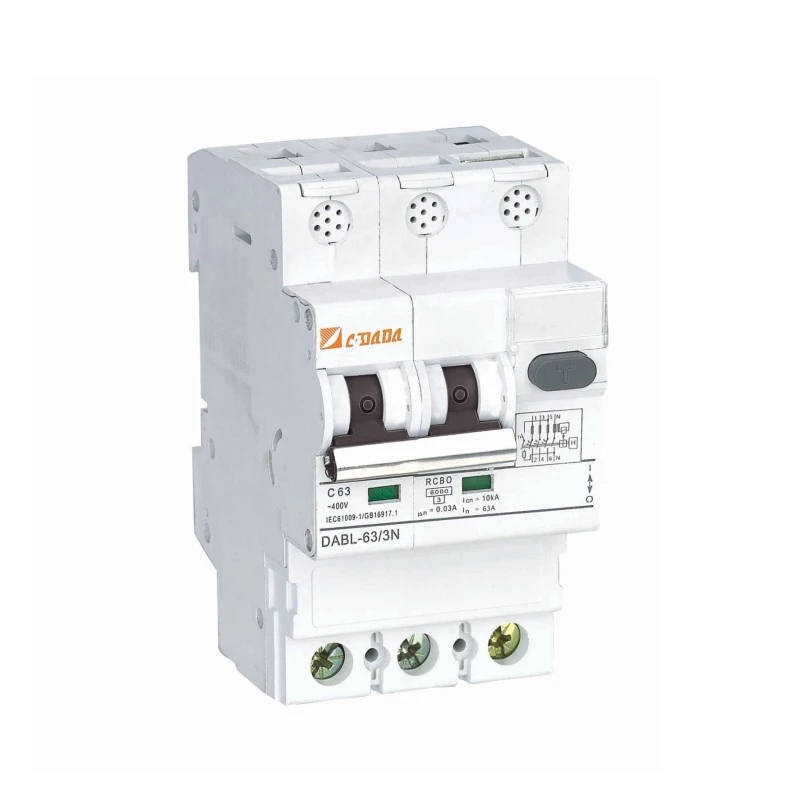

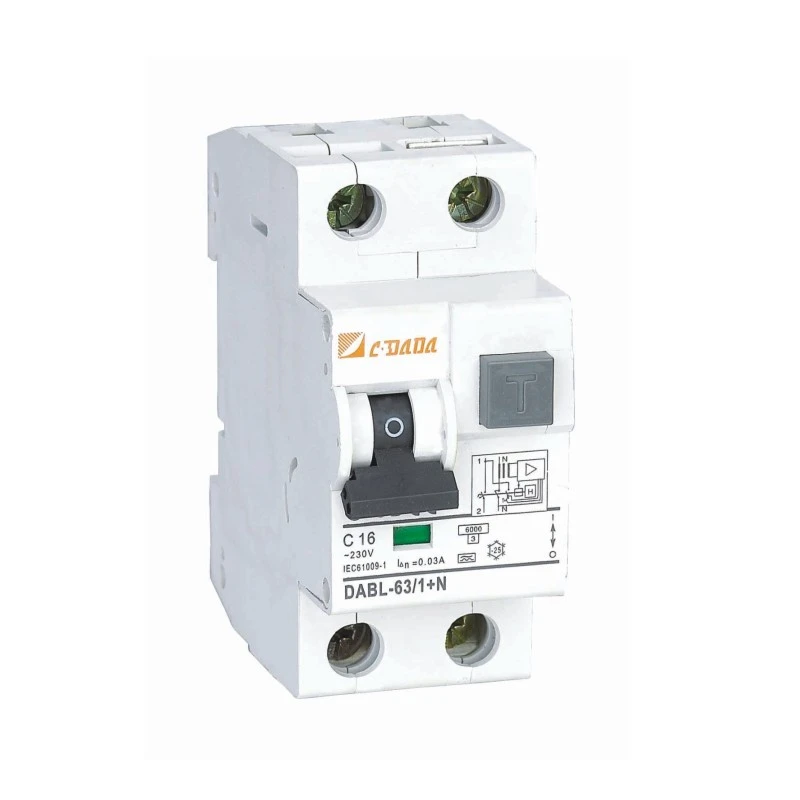

2P 4P Itanna Iru RCBO
Model:DABL-63
O le ni idaniloju lati yan CDADA bi 2P 4P Itanna Iru RCBO (DABL-63) rẹ olupese ati olupese. Ọja wa jẹ ifọwọsi CE/CB/RoHS. Darapọ jijo 30mA + apọju + aabo kukuru-kukuru. 6kA, -25 ° C si +40 ° C, apẹrẹ fun ita gbangba / gareji iyika.
Mu ailewu pọ si ni awọn fifi sori ẹrọ itanna ode oni pẹlu CDADA DABL-63 2P 4P Itanna Iru RCBO-iwapọ kan, oloye ti o ṣẹku Circuit lọwọlọwọ pẹlu idabobo lọwọlọwọ ti a ṣe nipasẹ Shanghai DADA Electric CO., LTD. Ti a ṣe apẹrẹ fun awọn ohun elo 2P (1+N) ati 4P (3+N), RCBO itanna yii n pese aabo mẹrin-ni-ọkan:
Idena ijaya ina (nipasẹ wiwa lọwọlọwọ lọwọlọwọ 30mA),
Idaabobo apọju,
Short-circuit interruption (6kA breaking capacity),
Surge suppression (integrated D-class varistor).
Apẹrẹ fun awọn iho ita gbangba, ina gareji, awọn iyika ipilẹ ile, ati awọn ifunni ohun elo, DABL-63 pade CE, CB, ati awọn iṣedede RoHS ati ẹya ẹya ẹrọ iyatọ ẹya ẹrọ fun wiwa aṣiṣe ifarabalẹ. Pẹlu iwọn DIN 2-module, itọkasi ipo olubasọrọ ominira, ati -25 ° C si + 40 ° C ibiti o ṣiṣẹ, o ti kọ fun igbẹkẹle kọja awọn iwọn otutu ati awọn eto ibugbe / iṣowo.
Awọn pato bọtini
Awoṣe: DABL-63 Series
Iru: Itanna RCBO (Ipaku lọwọlọwọ lọwọlọwọ pẹlu Idaabobo lọwọlọwọ)

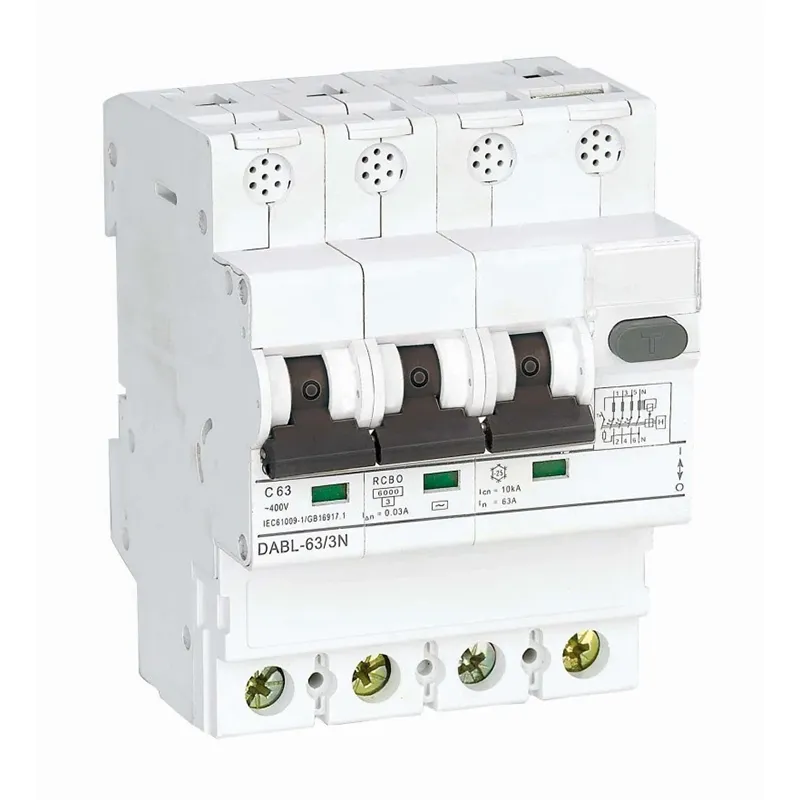

Awọn ọpá: 2P (1+N) tabi 4P (3+N)
Ti won won Lọwọlọwọ (Ninu): Ni deede 6–63A (da lori pẹpẹ DAB7-63)
Ifamọ ti o ku (I△n): 30mA (boṣewa fun aabo ara ẹni)
Fifọ Agbara: 6kA,10kA
Awọn iṣẹ Idaabobo:
Ilọ lọwọlọwọ (jijo)
Apọju (gbona)
Ayika kukuru (itanna)
Surge overvoltage (via built-in D-class varistor)

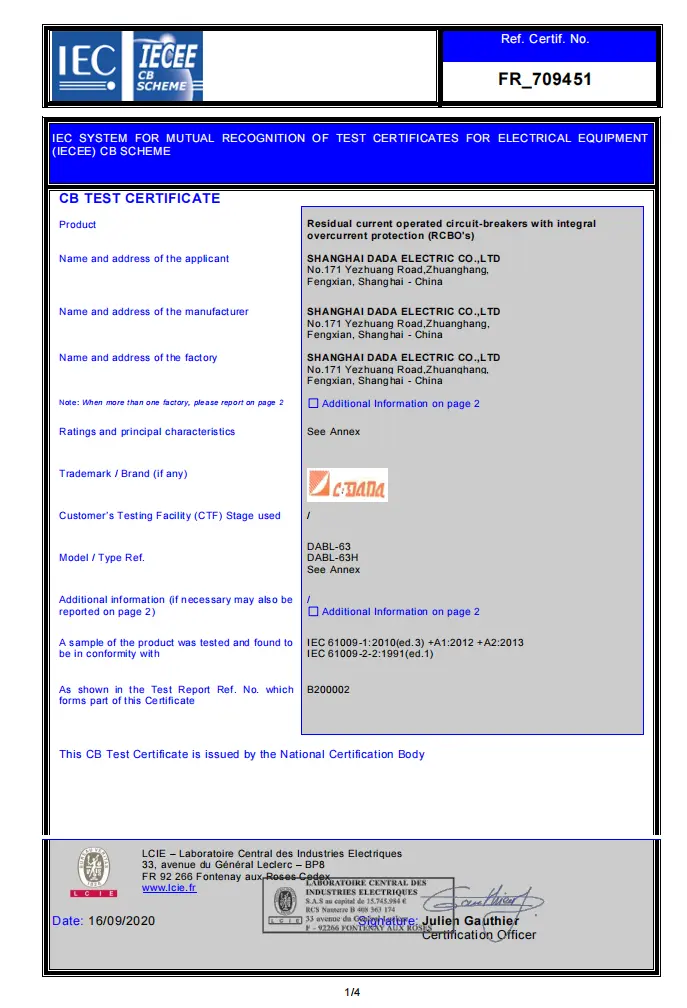

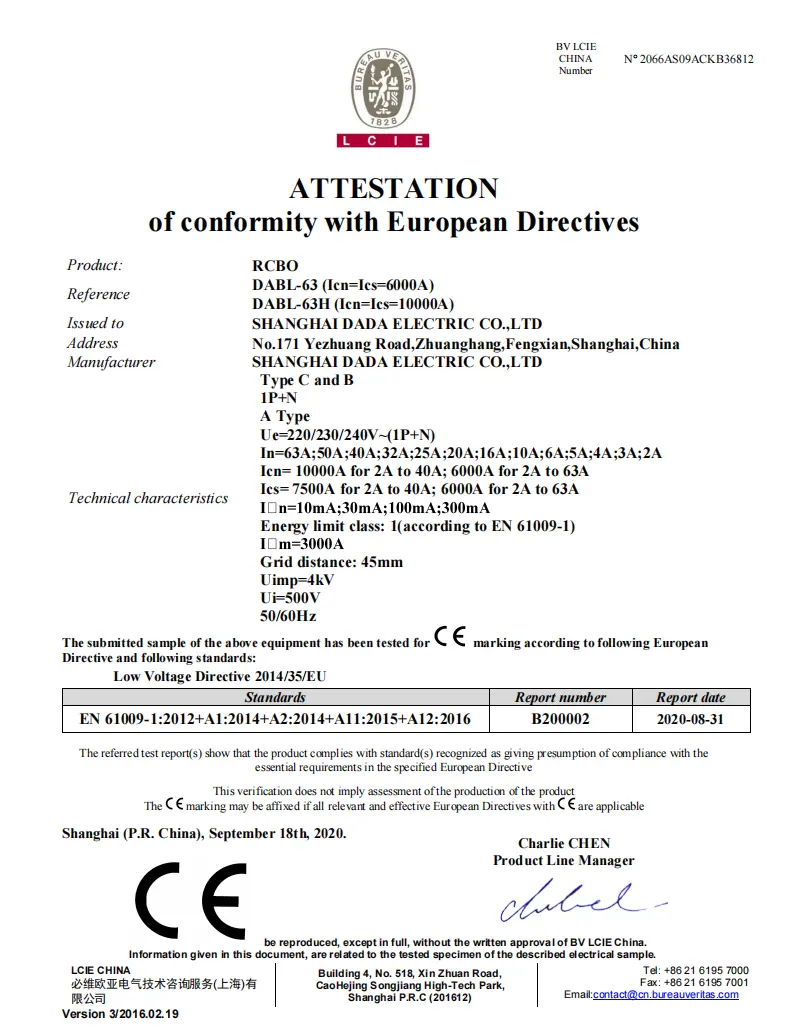

Awọn iwe-ẹri: CE, CB, RoHS
Awọn iwọn otutu ti nṣiṣẹ: -25°C si +40°C
Iṣagbesori: 2-module iwọn lori 35mm DIN iṣinipopada
Imọ Data Dì
|
RCBO DABL-63 Itanna iru |
||
|
Fun aabo pinpin agbara gbogbogbo (IEC/EN 61009) |
|
|
|
Ọpá ti nọmba |
1P+N |
|
|
Itanna išẹ |
||
|
Ti won won lọwọlọwọ Ninu(A) |
6,10,16,20,25,32,40,50,63A |
|
|
Itusilẹ iru |
Itanna iru |
|
|
Awọn iṣẹ |
Idaabobo lodi si Circuit kukuru, jijo, apọju, lori foliteji, ipinya |
|
|
Iru lọwọlọwọ iṣẹku |
AC ati A |
|
|
Igbohunsafẹfẹ wọn f (Hz) |
50-60Hz |
|
|
Ti won won foliteji ṣiṣẹ Ue (V) AC |
230/400 |
|
|
Rated residual current motion I△n( mA) |
10,30,100,300 |
|
|
Rated residual current no-motion I△no( mA) |
5,15,25,50,300 |
|
|
kosф |
0.5 |
|
|
Foliteji idabobo Ui |
500V |
|
|
Rated impulse withstand voltage Uimp |
6KV |
|
|
Lẹsẹkẹsẹ tripping iru |
B/C/D |
|
|
Icn(kA) ti o ni iwọn kukuru kukuru |
6kA ati 10kA |
|
|
Igbesi aye iṣẹ (O ~ C) |
Ẹ̀rọ |
12000 |
|
Itanna |
6000 |
|
|
Asopọ ati fifi sori ẹrọ |
|
|
|
Idaabobo ìyí |
IP40 |
|
|
Waya mm² |
1 ~ 25 |
|
|
Iwọn otutu ṣiṣẹ (pẹlu apapọ ojoojumọ≤35℃) |
-5 ～+40℃ |
|
|
Resistance si ọriniinitutu ati ooru |
Kilasi 2 |
|
|
Giga loke okun |
≤2000 |
|
|
Ojulumo ọriniinitutu |
+20℃ , ≤90% +40℃ , ≤50% |
|
|
Idoti ìyí |
2 |
|
|
Ayika fifi sori |
Yago fun mọnamọna ti o han gbangba ati gbigbọn |
|
|
Kilasi fifi sori ẹrọ |
Kilasi Ⅱ, Kilasi Ⅲ |
|
|
Apapo pẹlu awọn ẹya ẹrọ |
||
|
Olubasọrọ oluranlọwọ |
Bẹẹni |
|
|
Olubasọrọ itaniji |
Bẹẹni |
|
|
ALT+AUX |
Bẹẹni |
|
|
Tu silẹ Shunt |
Bẹẹni |
|
|
Undervoltage Tu |
- |
|
|
Overvoltage Tu |
Bẹẹni |
|
|
Awọn iwọn (mm) (WxHxL) |
a |
35 |
|
b |
80.4 |
|
|
c |
72 |
|
Awọn ẹya pataki:
★ Itanna iyato module → ga ifamọ & fast Esi
★ Atọka olubasọrọ olominira (ṣe afihan otitọ ON/PA/ ipo irin ajo)
★ “TEST” bọtini fun ayẹwo iṣẹ-ṣiṣe oṣooṣu
★ Notched terminal clamps → lower heat, stronger grip
★ Cross-iṣẹ skru (+/-) → rọrun fifi sori, ko si silẹ awọn ẹya ara
★ Silver-ara olubasọrọ alloy → gun aye, kekere resistance
Kini idi ti o yan CDADA Itanna RCBO?
★ Gbogbo-ni-Ọkan Idaabobo ni 2 Modules
Rọpo Aabo MCB + RCCB + lọtọ—fifipamọ aaye, idiyele, ati idiju onirin.★ Aabo Imudara pẹlu Imudanu Iṣẹ abẹ
Circuit ti a dapọ pẹlu module itanna kan ti aabo iyatọ, D-kilasi varistor ati ẹrọ fifọ idawọle ti DAB7-63 jara ṣe idaniloju awọn iru aabo 4: lati lọwọlọwọ ti o ku (lọwọlọwọ jijo), Circuit kukuru; apọju ati gbaradi overvoltage.★ Otitọ Ipo Hihan
Ko dabi awọn fifọ boṣewa, Atọka olubasọrọ ominira fihan ipo olubasọrọ gangan-paapaa ti mimu ba wa ni ọwọ ON.★ Insitola-Friendly Design
● Iwọn otutu otutu → dara fun awọn gareji ti ko gbona tabi awọn oke aja ti o gbona
● Awọn ebute akiyesi → aabo, awọn asopọ alatako kekere
● Awọn skru-drive meji → ṣiṣẹ pẹlu alapin tabi awọn irinṣẹ Phillips
★ Ifọwọsi Agbaye
CE, CB, ati awọn ifọwọsi RoHS ṣe idaniloju ibamu ni Yuroopu, Esia, Afirika, ati lẹhin-o dara fun awọn panẹli okeere.
★ Pipe fun Awọn agbegbe Ewu to gaju
Iṣeduro fun awọn ita gbangba, awọn agbegbe tutu, awọn gareji, ati awọn ipilẹ ile nibiti awọn eewu mọnamọna ati ina ti ga.★ Pẹlu ọpọlọpọ ọdun ni iriri sowo si awọn Russia ati European orilẹ-ede ni afikun si gbogbo awọn ti South America, Europe, Asia, ati Australia, CDADA ti o bo!

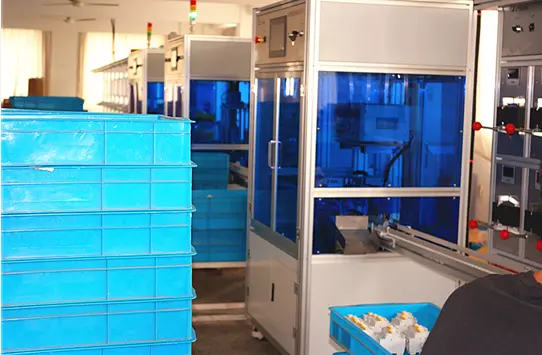

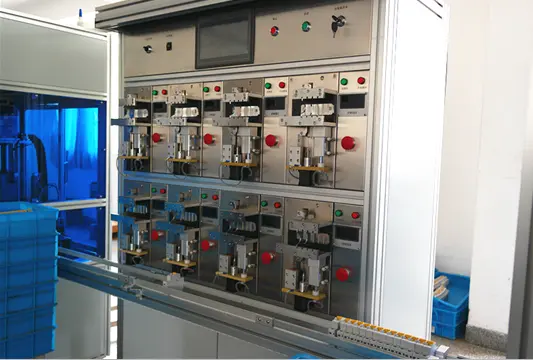

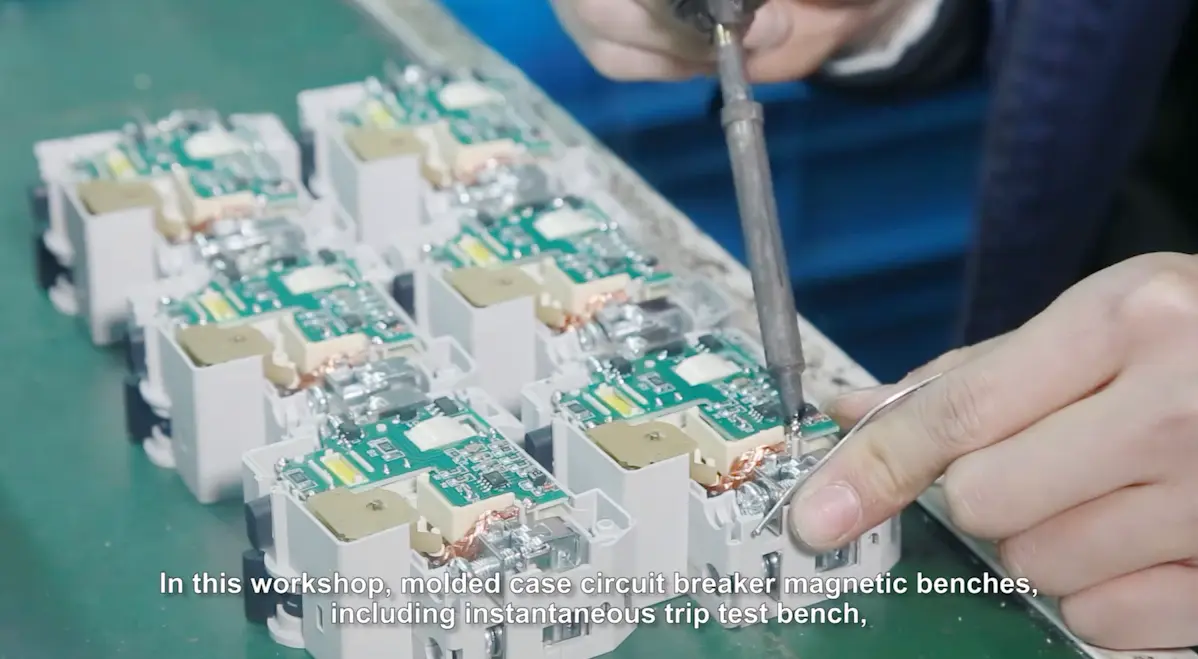

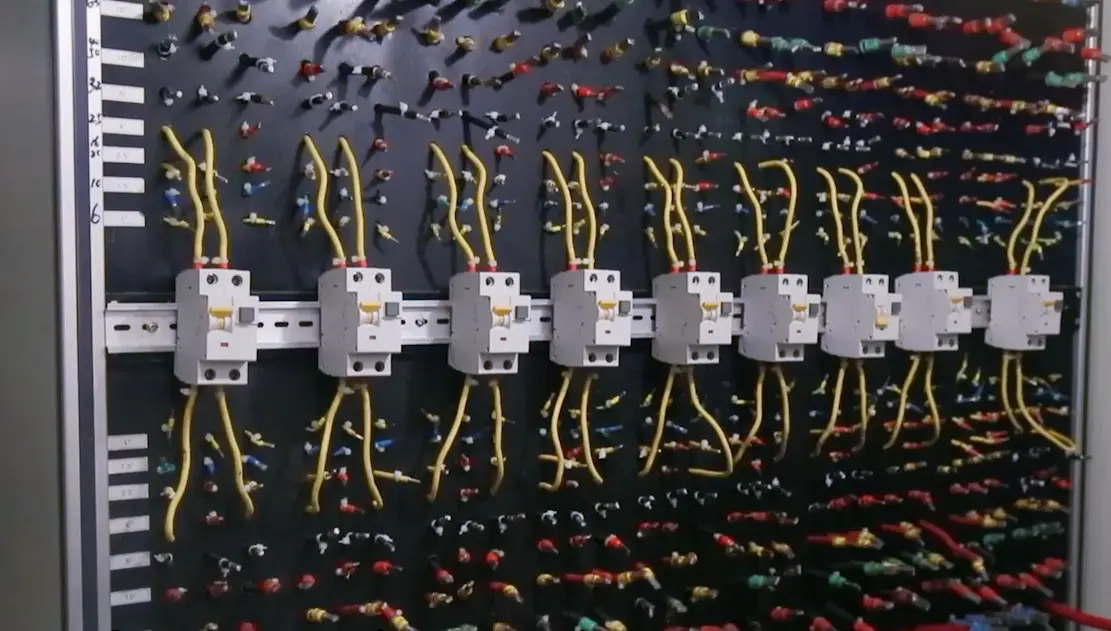

★ Niwon o jẹ eto imulo wa lati 100% ṣayẹwo gbogbo awọn ọja ti o lọ kuro ni ile-iṣẹ wa, a le ṣe iṣeduro pẹlu idaniloju pipe pe ọja naa jẹ iṣẹ-ṣiṣe 100% deede ṣaaju ki o lọ kuro ni ile-iṣẹ wa.
★ A ni idunnu lati jẹ ki o ṣabẹwo si wa nigbakugba! Eyi ni ọna kan ṣoṣo ti a le ni iṣakoso pipe lori awọn akoko iṣelọpọ ati iṣelọpọ ilana.
Awọn ohun elo Aṣoju
Awọn Sockets ita gbangba: Fun awọn irinṣẹ ọgba, awọn ṣaja EV, awọn ina isinmi
Garage & Basement Lighting: Damp, cold environments
Awọn iyipo Ohun elo: Awọn ẹrọ fifọ, awọn ẹrọ fifọ, awọn firiji
Agbara idanileko: Nibo awọn irinṣẹ ati ọrinrin wa papọ
Awọn Paneli Ipin Ibugbe: Iwapọ, ojutu aabo-pupọ
Awọn Ibeere Nigbagbogbo (FAQ)
Q1: Kini iyatọ laarin RCCB ati RCBO kan?
A1: An RCCB nikan iwari aloku (jo) lọwọlọwọ-ko ni aabo lodi si apọju tabi kukuru iyika. RCBO kan (bii DABL-63) daapọ RCCB + MCB ninu ẹrọ kan—nfun jijo + apọju + Idaabobo kukuru-kukuru.
Q2: Does this RCBO really protect against surges?
A2: Bẹẹni! O pẹlu iyatọ D-kilasi ti a ṣe sinu rẹ ti o dinku awọn iwọn apọju igba diẹ (fun apẹẹrẹ, lati monomono tabi yiyi pada) - ẹya ti o ṣọwọn ni awọn RCBO boṣewa.
Q3: Kilode ti o yan RCBO itanna lori ẹrọ itanna kan? A3:
● Awọn RCBO Itanna nfunni ni ifamọ ti o ga julọ, iwọn ti o kere ju, ati pe o le ṣepọ awọn iṣẹ afikun (gẹgẹbi aabo abẹlẹ).
● Wọ́n nílò foliteji laini láti ṣiṣẹ́—nítorí náà kò dára bí àìdásí-tọ̀túntòsì kò bá ṣeé gbára lé.
● Awọn oriṣi itanna ṣiṣẹ ni 0V ṣugbọn wọn tobi ati ko ni awọn ẹya ọlọgbọn.
→ Fun awọn grids ibugbe iduroṣinṣin, awọn RCBO itanna bii DABL-63 jẹ aipe.
Q4: Is 30mA sufficient for personal protection?
A4: Bẹẹni. 30mA jẹ ipilẹ ti kariaye (IEC) fun aabo ipaya igbala-aye ni awọn iyika ibugbe.
Q5: Kilode ti o yan CDADA fun RCBO itanna?
A5: CDADA duro jade nitori:
● Otitọ aabo 4-in-1 (jijo + apọju + iyika kukuru)
● Iwapọ 2-module oniru fi aaye nronu pamọ
● Atọka olubasọrọ olominira ṣe idaniloju ipo deede
● Awọn iwe-ẹri agbaye (CE/CB/RoHS)
● OEM-ṣetan: didara deede, atilẹyin Gẹẹsi, idiyele olopobobo
